44.02.00 - Exhaust System (My 2000)

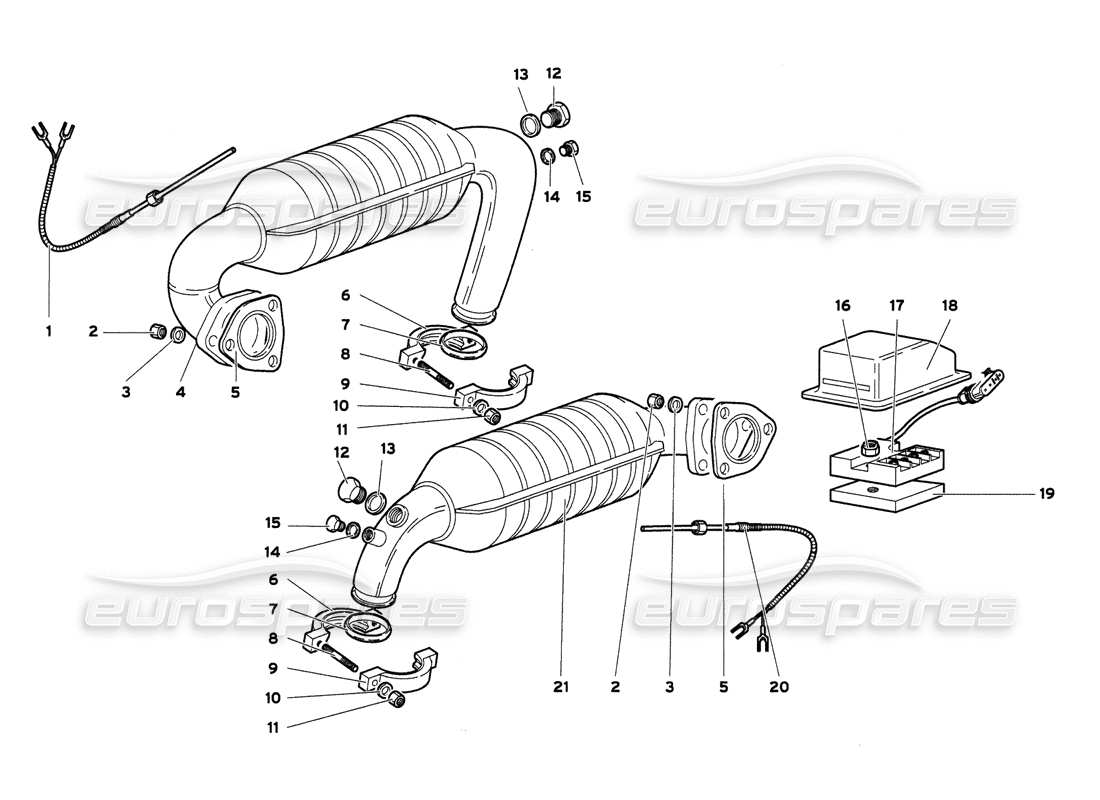

Lamborghini Diablo 6.0 (2001) Exhaust System (My 2000) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 0R1470005
THERMOCOUPLE KIT
(x2 heat probs & x1 ECU)
from £831.79
from £831.79
# 002
MPN: N02214621
NUT
(Valid form engine No. 2411 for Diablo 6.0 MY 2000)
from £1.43
from £1.43
This part replaces part number N0221468
# 003
MPN: 008440806
WASHER
use : WHT001185
Supersession
Supersession
# 004
MPN: 0044003565
RH CATALYTIC CONVERTER ASSY
(Valid form engine No. 2411 for Diablo 6.0 MY 2000)
from £2,655.97
from £2,655.97
This part replaces part number 004431143 which we have in stock - and 3 more. Click to view details
# 005
MPN: 004432145
GASKET
(Valid form engine No. 2411 for Diablo 6.0 MY 2000)
from £25.47
from £25.47
# 006
MPN: 004425084
THREADED HALF RING
(Valid form engine No. 2411 for Diablo 6.0 MY 2000)
from £283.61
from £283.61
# 007
MPN: 004424070
BI-CONE RING
(Valid form engine No. 2411 for Diablo 6.0 MY 2000)
from £93.82
from £93.82
# 008
MPN: N0444416
STUD
(Valid form engine No. 2411 for Diablo 6.0 MY 2000)
from £2.18
from £2.18
# 009
MPN: 004425084
HALF RING
(Valid form engine No. 2411 for Diablo 6.0 MY 2000)
from £283.61
from £283.61
# 010
MPN: 008440806
WASHER
use : WHT001185
Supersession
Supersession
# 011
MPN: N02214621
NUT
(Valid form engine No. 2411 for Diablo 6.0 MY 2000)
from £1.39
from £1.39
This part replaces part number N0221468
# 012
MPN: 004431147
PLUG
(Valid form engine No. 2411 for Diablo 6.0 MY 2000)
from £30.18
from £30.18
# 013
MPN: 008401819
WASHER
(Included in the engine gasket kit) (Valid form engine No. 2411 for Diablo 6.0 MY 2000)
Supersession
Supersession
# 014
MPN: 008401008
WASHER
(Valid form engine No. 2411 for Diablo 6.0 MY 2000)
Supersession
Supersession
# 015
MPN: 0044006437
PLUG
(Valid form engine No. 2411 for Diablo 6.0 MY 2000)
# 016
MPN: WHT002959
NUT
(Valid form engine No. 2411 for Diablo 6.0 MY 2000)
from £0.56
from £0.56
# 017
MPN: 400919935C
CATALYST COLD JOINT
(Valid form engine No. 2411 for Diablo 6.0 MY 2000)
from £1,180.24
from £1,180.24
This part replaces part number 006033680
# 018
MPN: 005934453
SHIELD
(Valid form engine No. 2411 for Diablo 6.0 MY 2000)
from £27.25
from £27.25
# 019
MPN: 006035446
SHIM
(Valid form engine No. 2411 for Diablo 6.0 MY 2000)
# 020
MPN: 006033687
THERMOCOUPLE (L=640 MM)
(Valid form engine No. 2411 for Diablo 6.0 MY 2000)
Supersession
Supersession
# 021
MPN: 0044003566
LH CATALYTIC CONVERTER ASSY
(Valid form engine No. 2411 for Diablo 6.0 MY 2000)
from £2,655.97
from £2,655.97
