52.02.00 - Rear Suspension

Lamborghini Diablo 6.0 (2001) Rear Suspension Parts Diagram

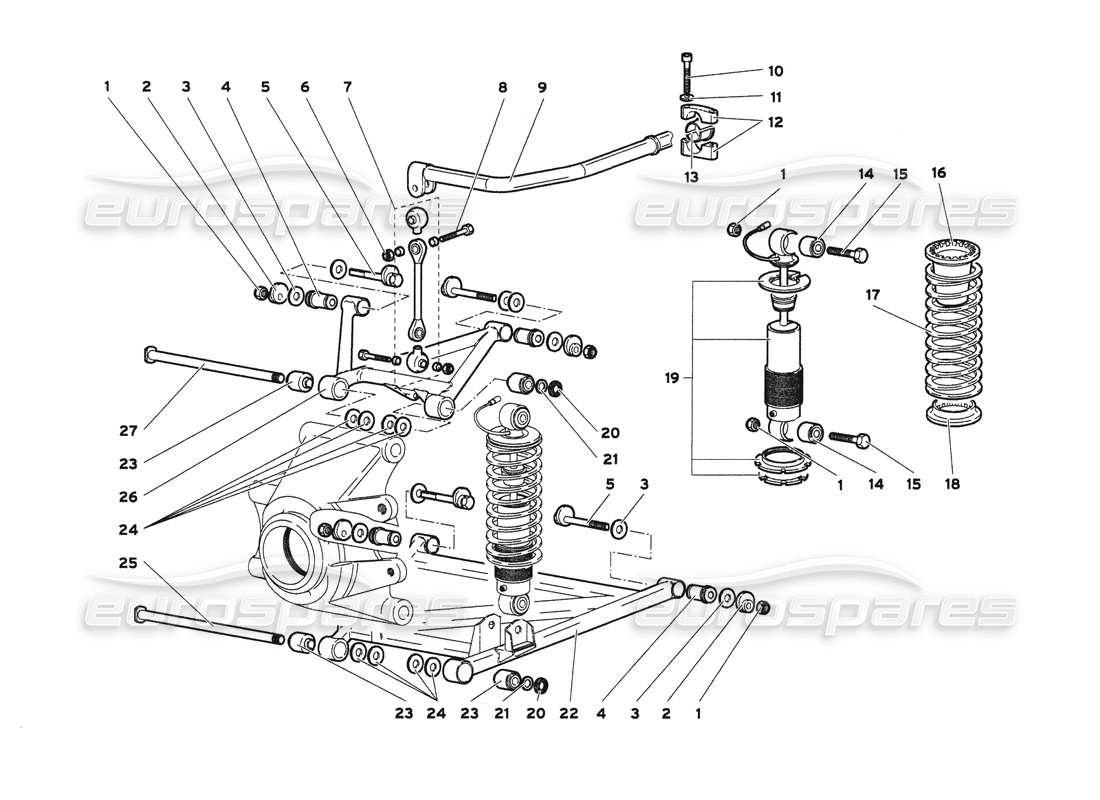

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: WHT003355
                                                        NUT
                                                        from £13.28
                                                        from £13.28
                                                        # 002
                                                        MPN: 410407127A
                                                        BOLT
                                                        from £608.71
                                                        from £608.71
                                                        This part replaces part number 005231923
                                                        # 003
                                                        MPN: 005133488
                                                        1.5 MM SPACER
                                                        Supersession
                                                        Supersession
                                                        # 003
                                                        MPN: 410407295
                                                        1.0 MM SPACER
                                                        from £2.73
                                                        from £2.73
                                                        # 003
                                                        MPN: 410407295B
                                                        2.0 MM SPACER
                                                        from £2.39
                                                        from £2.39
                                                        # 003
                                                        MPN: 410407295C
                                                        2.5 MM SPACER
                                                        from £2.64
                                                        from £2.64
                                                        # 003
                                                        MPN: 410407295D
                                                        3.0 MM SPACER
                                                        from £17.99
                                                        from £17.99
                                                        # 004
                                                        MPN: 008921206
                                                        FLEXIBLE BUSHING
                                                        from £29.93
                                                        from £29.93
                                                        # 005
                                                        MPN: 410407127A
                                                        SCREW
                                                        from £608.71
                                                        from £608.71
                                                        This part replaces part number 005231923
                                                        # 006
                                                        MPN: 008200809
                                                        NUT
                                                        Supersession
                                                        Supersession
                                                        # 007
                                                        MPN: 410411317
                                                        CONNECTING ROD
                                                        from £258.53
                                                        from £258.53
                                                        # 008
                                                        MPN: 008100807
                                                        SCREW
                                                        from £0.51
                                                        from £0.51
                                                        # 009
                                                        MPN: 0052005049
                                                        TORSION BAR
                                                        from £417.87
                                                        from £417.87
                                                        # 010
                                                        MPN: WHT002960
                                                        SCREW
                                                        from £5.31
                                                        from £5.31
                                                        # 011
                                                        MPN: 008410602
                                                        WASHER
                                                        from £28.28
                                                        from £28.28
                                                        # 012
                                                        MPN: 0052003970
                                                        U-BOLT
                                                        Supersession
                                                        Supersession
                                                        # 013
                                                        MPN: 0052003966
                                                        BUSHING
                                                        Supersession
                                                        Supersession
                                                        # 014
                                                        MPN: 410512383
                                                        FLEXIBLE BUSHING
                                                        from £356.24
                                                        from £356.24
                                                        # 015
                                                        MPN: 008101269
                                                        SCREW
                                                        Supersession
                                                        Supersession
                                                        # 016
                                                        MPN: 0052009107
                                                        RING
                                                        from £36.24
                                                        from £36.24
                                                        # 017
                                                        MPN: 0052003963
                                                        SPRING
                                                        from £187.63
                                                        from £187.63
                                                        # 018
                                                        MPN: 410512385
                                                        RUBBER RING
                                                        from £32.34
                                                        from £32.34
                                                        # 019
                                                        MPN: 0052006593
                                                        SHOCK ABSORBER
                                                        from £6,699.21
                                                        from £6,699.21
                                                        # 020
                                                        MPN: 008251702
                                                        RING NUT
                                                        from £2.41
                                                        from £2.41
                                                        This part replaces part number 008251701
                                                        # 021
                                                        MPN: 008401708
                                                        WASHER
                                                        from £1.58
                                                        from £1.58
                                                        # 022
                                                        MPN: 005225906
                                                        RH LOWER ARM
                                                        from £1,119.71
                                                        from £1,119.71
                                                        # 022
                                                        MPN: 005225907
                                                        LH LOWER ARM
                                                        from £1,111.07
                                                        from £1,111.07
                                                        # 023
                                                        MPN: 005225207
                                                        FLEXIBLE BUSHING
                                                        from £127.65
                                                        from £127.65
                                                        # 024
                                                        MPN: 008401710
                                                        WASHER
                                                        from £26.12
                                                        from £26.12
                                                        # 025
                                                        MPN: 005225205
                                                        PIN
                                                        from £57.79
                                                        from £57.79
                                                        # 026
                                                        MPN: 005225908
                                                        RH UPPER SUSPENSION ARM
                                                        from £1,344.52
                                                        from £1,344.52
                                                        # 026
                                                        MPN: 005225909
                                                        LH UPPER ARM
                                                        from £1,539.06
                                                        from £1,539.06
                                                        # 027
                                                        MPN: 005225204
                                                        PIN
                                                        from £57.79
                                                        from £57.79
