62.02.00 - fuel system

Lamborghini Diablo 6.0 (2001) Fuel System Parts Diagram

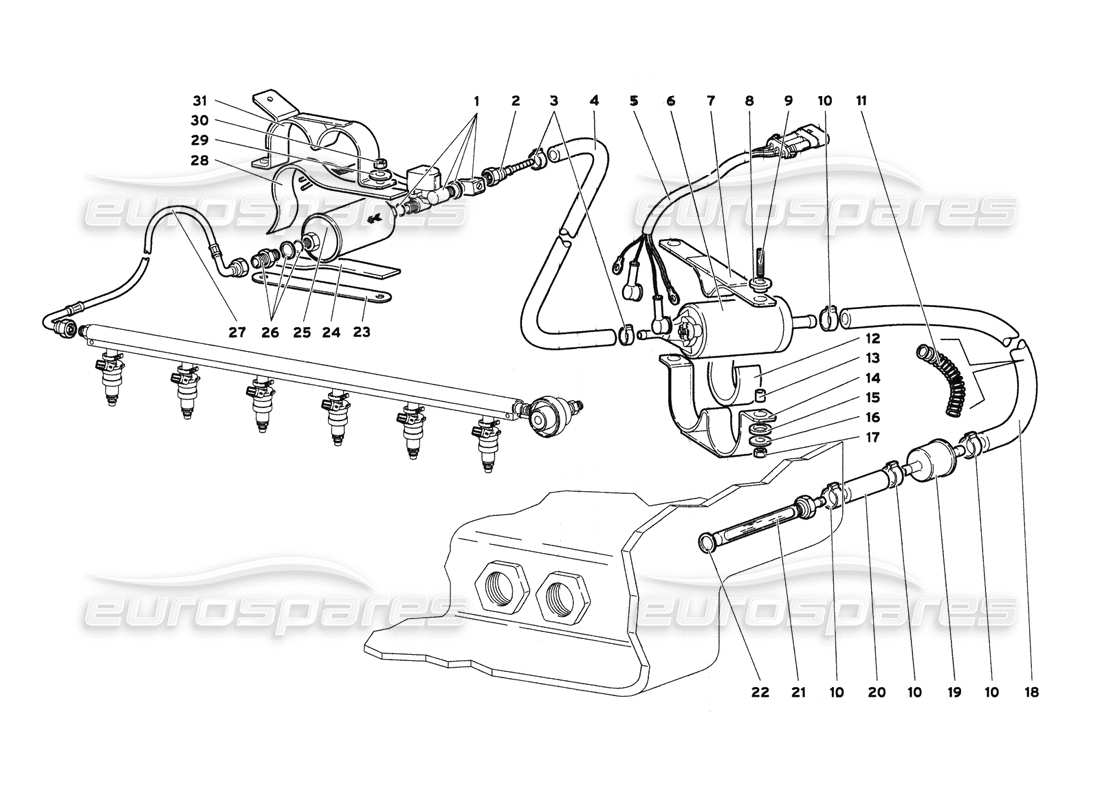

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price
                                                                # 001
                                                                MPN: 0061006426
                                                                MED SOLENOID VALVE KIT
                                                                from £379.74
                                                                from £379.74
                                                                # 002
                                                                MPN: 006227630
                                                                UNION
                                                                from £8.43
                                                                from £8.43
                                                                # 003
                                                                MPN: 008831528
                                                                CLAMP
                                                                Supersession
                                                                Supersession
                                                                # 004
                                                                MPN: 006230218
                                                                PIPE
                                                                from £31.52
                                                                from £31.52
                                                                # 005
                                                                MPN: 0061008760
                                                                FUEL PUMP WIRING
                                                                from £26.91
                                                                from £26.91
                                                                # 006
                                                                MPN: 002024398
                                                                fuel pump
                                                                from £429.73
                                                                from £429.73
                                                                # 007
                                                                MPN: 006229532
                                                                PLATE
                                                                from £29.10
                                                                from £29.10
                                                                # 008
                                                                MPN: 001701495
                                                                RUBBER RING
                                                                from £32.99
                                                                from £32.99
                                                                # 009
                                                                MPN: WHT003031
                                                                STUD
                                                                from £5.85
                                                                from £5.85
                                                                This part replaces part number 008300839
                                                                # 010
                                                                MPN: 400251189B
                                                                CLAMP
                                                                from £6.53
                                                                from £6.53
                                                                # 011
                                                                MPN: 0062002430
                                                                SPRING
                                                                Supersession
                                                                Supersession
                                                                # 012
                                                                MPN: 006226900
                                                                GASKET
                                                                from £15.05
                                                                from £15.05
                                                                # 013
                                                                MPN: 001701592
                                                                SPACER
                                                                from £11.72
                                                                from £11.72
                                                                # 014
                                                                MPN: 006229533
                                                                CLAMP
                                                                from £38.35
                                                                from £38.35
                                                                # 015
                                                                MPN: WHT001189
                                                                RUBBER RING
                                                                from £2.38
                                                                from £2.38
                                                                This part replaces part number 001707163
                                                                # 016
                                                                MPN: WHT001942
                                                                WASHER
                                                                from £2.18
                                                                from £2.18
                                                                # 017
                                                                MPN: N0111849
                                                                NUT
                                                                from £1.47
                                                                from £1.47
                                                                This part replaces part number 008200809
                                                                # 018
                                                                MPN: 006230225
                                                                PIPE
                                                                from £12.62
                                                                from £12.62
                                                                # 019
                                                                MPN: 006229221
                                                                FILTER
                                                                from £45.69
                                                                from £45.69
                                                                # 020
                                                                MPN: 006230226
                                                                PIPE
                                                                from £43.85
                                                                from £43.85
                                                                # 021
                                                                MPN: 0062001649
                                                                SUCTION PIPE
                                                                from £377.24
                                                                from £377.24
                                                                # 022
                                                                MPN: WHT003048
                                                                WASHER
                                                                from £2.13
                                                                from £2.13
                                                                # 023
                                                                MPN: 0062007226
                                                                PLATE
                                                                # 024
                                                                MPN: 410201196
                                                                GASKET
                                                                from £3.03
                                                                from £3.03
                                                                # 025
                                                                MPN: 400201511A
                                                                FUEL FILTER
                                                                from £32.95
                                                                from £32.95
                                                                This part replaces part number 002030563 - and 1 more. Click to view details
                                                                # 026
                                                                MPN: 006230564
                                                                UNION
                                                                Supersession
                                                                Supersession
                                                                # 027
                                                                MPN: 006231552
                                                                PIPE FOR 1 TO 6 CYLINDER BLOCK
                                                                from £145.26
                                                                from £145.26
                                                                # 027
                                                                MPN: 006231554
                                                                PIPE FOR 7 TO 12 CYLINDER BLOCK
                                                                from £85.26
                                                                from £85.26
                                                                # 028
                                                                MPN: 006230214
                                                                GASKET
                                                                # 029
                                                                MPN: WHT002961
                                                                WASHER
                                                                from £0.53
                                                                from £0.53
                                                                This part replaces part number 008400607
                                                                # 030
                                                                MPN: 008200606
                                                                NUT
                                                                Supersession
                                                                Supersession
                                                                # 031
                                                                MPN: 0062006493
                                                                CLAMP
                                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
