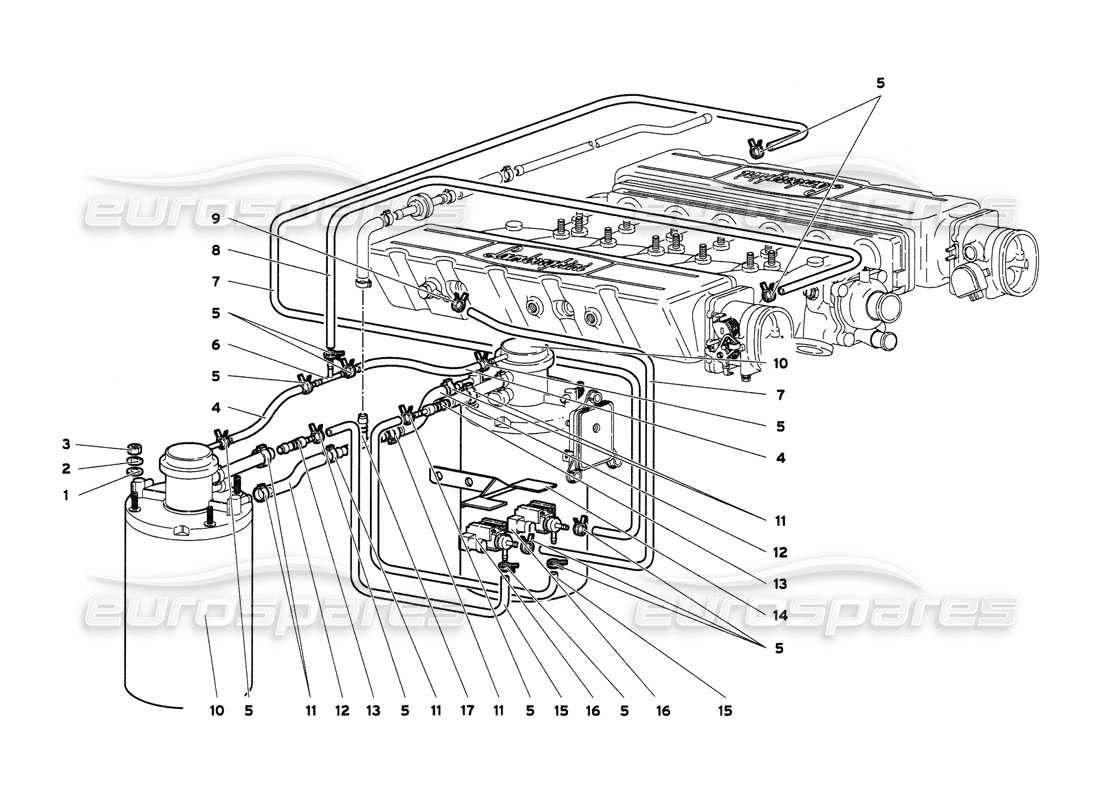

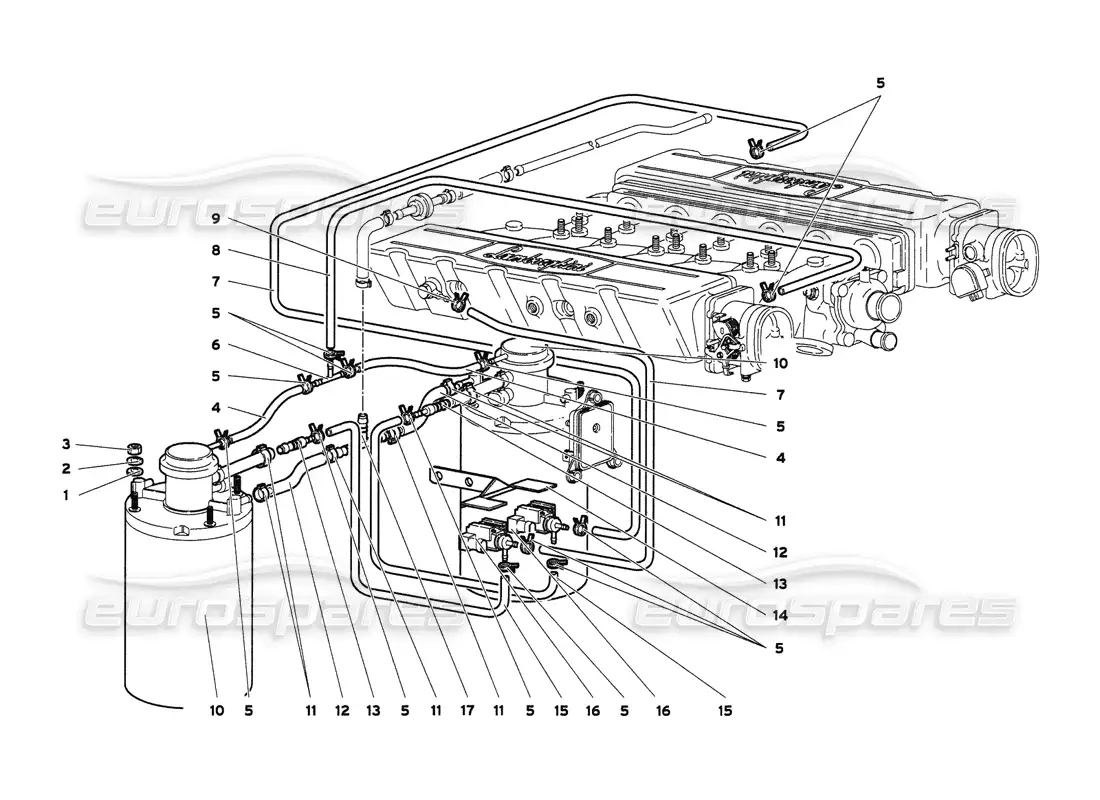

62.05.00 - fuel system
Lamborghini Diablo 6.0 (2001) Fuel System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008400606
WASHER
Supersession
Supersession
# 002
MPN: 008410603
WASHER
Supersession
Supersession
# 003
MPN: 008200610
NUT
from £1.58
from £1.58
# 004
MPN: 006230460
PIPE
from £4.52
from £4.52
# 005
MPN: 008830128
CLIP
Supersession
Supersession
# 006
MPN: 007014169
T - UNION
from £15.47
from £15.47
# 007
MPN: 0062001422
PIPE
# 008
MPN: 006237208
PIPE
from £25.04
from £25.04
# 009
MPN: 008830122
CLIP
from £0.53
from £0.53
# 010
MPN: 006229306
VAPOUR FILTER
from £1,145.65
from £1,145.65
# 011
MPN: 008831528
CLAMP
Supersession
Supersession
# 012
MPN: 006230433
PIPE
from £37.55
from £37.55
# 013
MPN: 0062001419
UNION
from £7.60
from £7.60
# 014
MPN: 0062001379
BRACKET
from £44.20
from £44.20
# 015
MPN: 0062001420
PIPE
from £8.42
from £8.42
# 016
MPN: 0062001421
SOLENOID VALVE
from £124.09
from £124.09
# 017
MPN: 006220752
T - UNION
from £3.70
from £3.70
