62.06.00 - fuel system

Lamborghini Diablo 6.0 (2001) Fuel System Parts Diagram

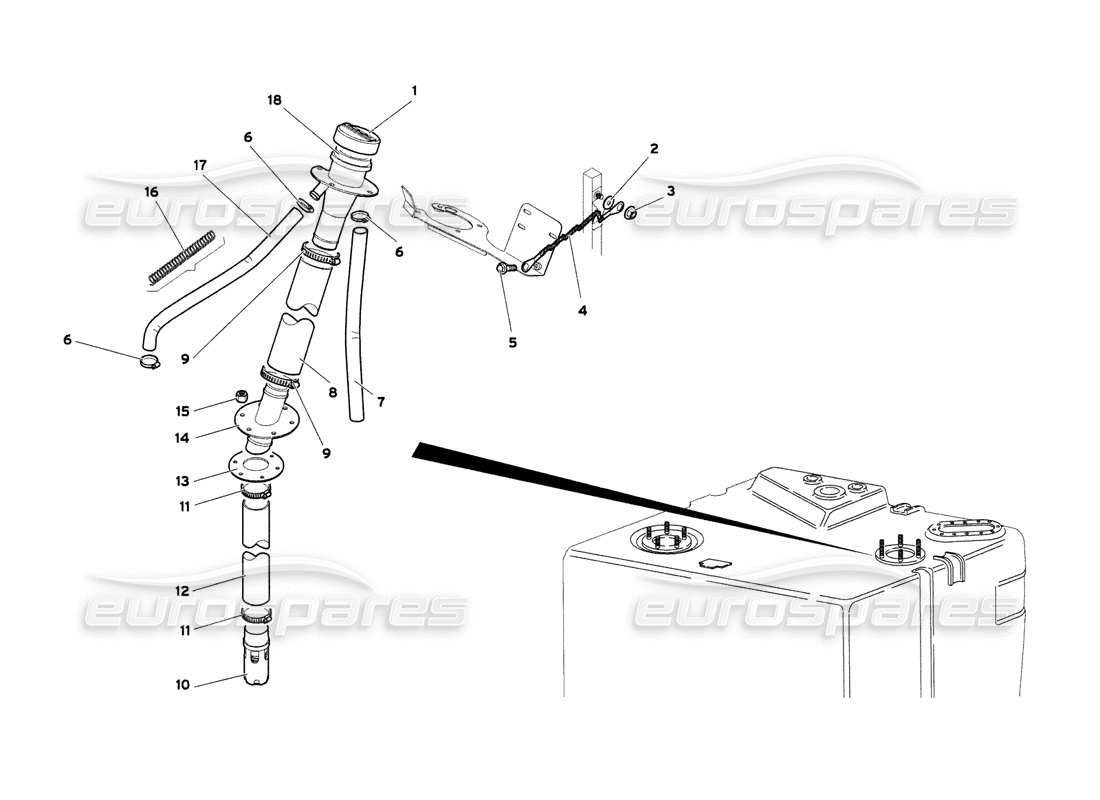

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 002
                                    MPN: WHT002961
                                    WASHER
                                    from £0.54
                                    from £0.54
                                    This part replaces part number 008400607
                                    # 003
                                    MPN: 008200614
                                    NUT
                                    Supersession
                                    Supersession
                                    # 004
                                    MPN: 001638239
                                    GROUND
                                    # 005
                                    MPN: 008700663
                                    SCREW
                                    from £0.54
                                    from £0.54
                                    # 006
                                    MPN: 008831117
                                    CLAMP
                                    Supersession
                                    Supersession
                                    # 007
                                    MPN: 0066006443
                                    PIPE
                                    from £16.38
                                    from £16.38
                                    # 008
                                    MPN: 0062007550
                                    PIPE
                                    from £60.70
                                    from £60.70
                                    # 009
                                    MPN: 008833203
                                    CLAMP
                                    from £4.52
                                    from £4.52
                                    # 010
                                    MPN: 0062005363
                                    VALVE
                                    from £243.76
                                    from £243.76
                                    # 011
                                    MPN: 008834004
                                    CLAMP
                                    from £5.19
                                    from £5.19
                                    # 012
                                    MPN: 0062006250
                                    PIPE
                                    from £77.52
                                    from £77.52
                                    # 013
                                    MPN: 006205360
                                    GASKET
                                    from £34.62
                                    from £34.62
                                    # 014
                                    MPN: 0062007451
                                    FILLER
                                    from £349.07
                                    from £349.07
                                    # 015
                                    MPN: WHT002959
                                    NUT
                                    from £0.53
                                    from £0.53
                                    # 016
                                    MPN: 410201212
                                    SPRING
                                    from £24.51
                                    from £24.51
                                    # 017
                                    MPN: 0062005001
                                    PIPE
                                    from £20.78
                                    from £20.78
                                    # 018
                                    MPN: 0062007452
                                    FILLER
                                    (Valid for USA & CANADA - March 2001)
                                    # 018
                                    MPN: 0062007488
                                    FILLER
                                    (Valid for ARABIA - March 2001)
                                    from £436.11
                                    from £436.11
                                    # 018
                                    MPN: 0062008008
                                    FILLER
                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
