lamborghini diablo 6.0 (2001) fuel system (valid for usa & canada - march 2001) parts diagram

71.96.62.04.00 - Fuel System (Valid for USA & Canada - March 2001)

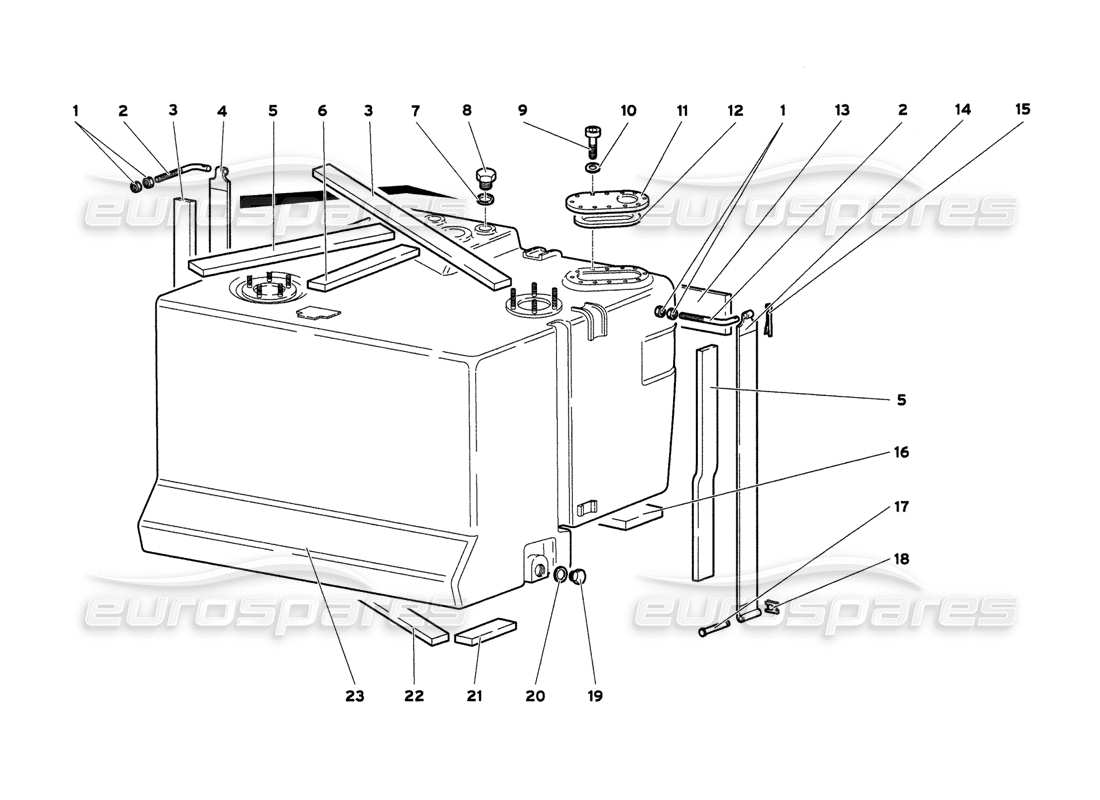

Lamborghini Diablo 6.0 (2001) Fuel System (Valid for USA & Canada - March 2001) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: N01100845
NUT
(Valid for USA & CANADA - March 2001)
from £0.47
from £0.47
This part replaces part number 008200801 - and 2 more. Click to view details
# 002
MPN: 006226884
TIE ROD
(Valid for USA & CANADA - March 2001)
# 003
MPN: 410201644
PROTECTION
(Valid for USA & CANADA - March 2001)
from £10.59
from £10.59
# 004
MPN: 006237360
STRIP
(Valid for USA & CANADA - March 2001)
from £48.93
from £48.93
# 005
MPN: 006231704
PROTECTION
(Valid for USA & CANADA - March 2001)
from £46.19
from £46.19
# 006
MPN: 006237956
PROTECTION
(Valid for USA & CANADA - March 2001)
# 007
MPN: 008401819
WASHER
(Valid for USA & CANADA - March 2001)
Supersession
Supersession
# 008
MPN: 0062005022
PLUG
(Valid for USA & CANADA - March 2001)
from £7.63
from £7.63
# 009
MPN: 008700614
SCREW
(Valid for USA & CANADA - March 2001)
Supersession
Supersession
# 010
MPN: 008400606
WASHER
(Valid for USA & CANADA - March 2001)
Supersession
Supersession
# 011
MPN: 0062004954
FLANGE
(Valid for USA & CANADA - March 2001)
from £134.73
from £134.73
# 012
MPN: 008609912
GASKET
(Valid for USA & CANADA - March 2001)
# 013
MPN: 006237368
PROTECTION
(Valid for USA & CANADA - March 2001)
from £12.19
from £12.19
# 014
MPN: 006229506
STRIP
(Valid for USA & CANADA - March 2001)
from £24.67
from £24.67
# 015
MPN: 008820304
SPLIT PIN
(Valid for USA & CANADA - March 2001)
Supersession
Supersession
# 016
MPN: 006231701
PROTECTION
(Valid for USA & CANADA - March 2001)
from £36.90
from £36.90
# 017
MPN: 006233763
PIN
(Valid for USA & CANADA - March 2001)
from £6.28
from £6.28
# 018
MPN: 008580604
CLIP
(Valid for USA & CANADA - March 2001)
from £1.42
from £1.42
# 019
MPN: 008931203
PLUG
(Valid for USA & CANADA - March 2001)
from £9.44
from £9.44
# 020
MPN: WHT003362
WASHER
(Valid for USA & CANADA - March 2001)
from £0.92
from £0.92
# 021
MPN: 006231706
PROTECTION
(Valid for USA & CANADA - March 2001)
from £25.87
from £25.87
# 022
MPN: 006231702
PROTECTION
(Valid for USA & CANADA - March 2001)
from £3.07
from £3.07
# 023
MPN: 0062004960
FUEL TANK
(Valid for USA & CANADA - March 2001)
from £1,861.36
from £1,861.36
