lamborghini diablo 6.0 (2001) fuel system (valid for usa & canada - march 2001) parts diagram

71.96.62.05.00 - Fuel System (Valid for USA & Canada - March 2001)

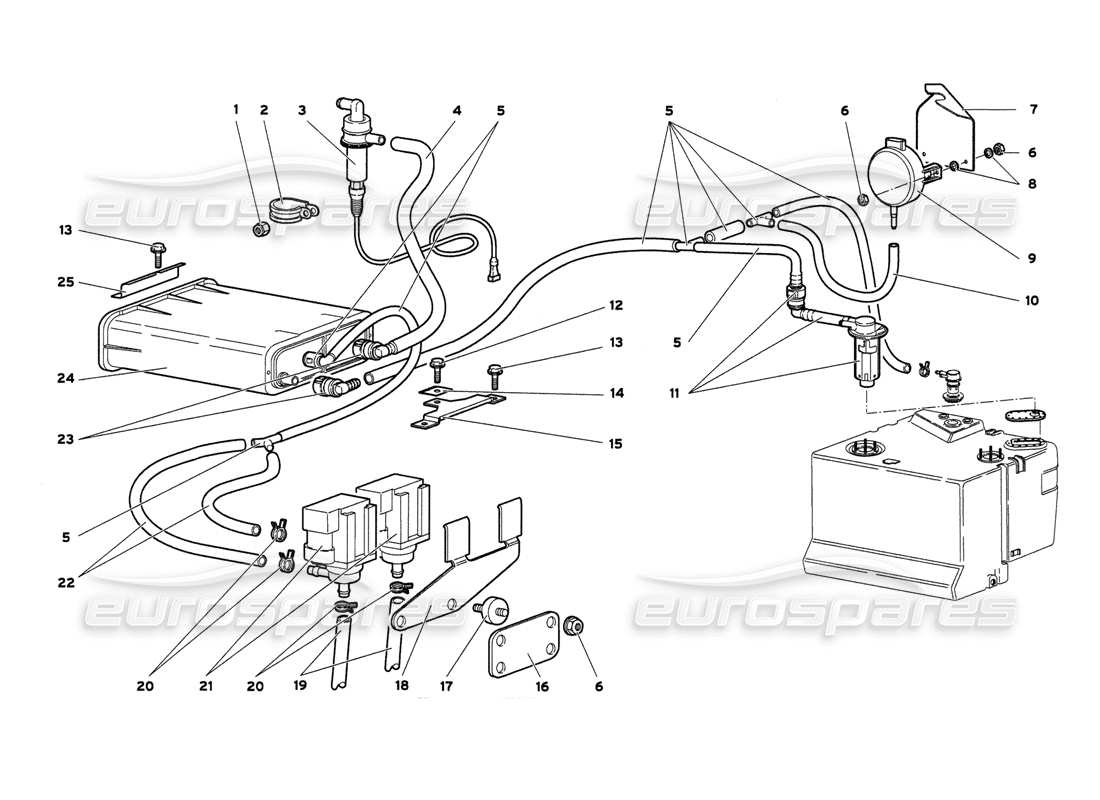

Lamborghini Diablo 6.0 (2001) Fuel System (Valid for USA & Canada - March 2001) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 008200606
    NUT
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 002
    MPN: 008832603
    CLAMP
    (Valid for USA & CANADA - March 2001)
    from £7.30
    from £7.30
    CLAMP Genuine Lamborghini - New (to order)
    # 003
    MPN: 0062008134
    VISTEON VALVE
    (Valid for USA & CANADA - March 2001)
    from £79.34
    from £79.34
    VALVE VESTEON Genuine Lamborghini - New (to order)
    # 004
    MPN: 0062005001
    PIPE
    (Valid for USA & CANADA - March 2001)
    from £21.40
    from £21.40
    BREATHER PIPE Genuine Lamborghini - New (to order)
    # 005
    MPN: 0062006821
    PIPE KIT
    (Valid for USA & CANADA - March 2001)
    PIPE KIT Genuine Lamborghini - New (to order)
    # 006
    MPN: 008200614
    NUT
    (Valid for USA & CANADA - March 2001)
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 007
    MPN: 0062007774
    SUPPORT
    (Valid for USA & CANADA - March 2001)
    SUPPORT Genuine Lamborghini - New (to order)
    # 008
    MPN: WHT002961
    WASHER
    (Valid for USA & CANADA - March 2001)
    from £0.53
    from £0.53
    This part replaces part number 008400607
    WASHER Genuine Lamborghini - New In stock
    # 009
    MPN: 400906206
    KALVICO SENSOR
    (Valid for USA & CANADA - March 2001)
    from £903.56
    from £903.56
    SENSOR Genuine Lamborghini - New (to order)
    SENSOR Genuine Lamborghini - Used In stock
    # 010
    MPN: 006231411
    PIPE
    (Valid for USA & CANADA - March 2001)
    from £8.05
    from £8.05
    VACUUM RESERVOIR/INTAKE MANIFO LD HOSE Genuine Lamborghini - New (to order)
    # 011
    MPN: 0062007249
    FLOATING VALVE
    (Valid for USA & CANADA - March 2001)
    from £231.00
    from £231.00
    FLOATING VALVE Genuine Lamborghini - New (to order)
    FLOATING VALVE Genuine Lamborghini - Used In stock
    # 012
    MPN: N10718801
    SCREW
    (Valid for USA & CANADA - March 2001)
    from £0.59
    from £0.59
    HEXAGON BOLT M6 X 16 Genuine Lamborghini - New In stock
    BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New In stock
    # 013
    MPN: 008700663
    SCREW
    (Valid for USA & CANADA - March 2001)
    from £0.53
    from £0.53
    SCREW M6 Genuine Lamborghini - New (to order)
    # 014
    MPN: 0062006543
    SUPPORT
    (Valid for USA & CANADA - March 2001)
    SUPPORT Genuine Lamborghini - New (to order)
    # 015
    MPN: 0062006533
    BRACKET
    (Valid for USA & CANADA - March 2001)
    BRACKET Genuine Lamborghini - New (to order)
    # 016
    MPN: 0062007398
    SUPPORT
    (Valid for USA & CANADA - March 2001)
    SUPPORT Genuine Lamborghini - New (to order)
    # 017
    MPN: 008920602
    SPACER
    (Valid for USA & CANADA - March 2001)
    from £9.18
    from £9.18
    RUBBER SUPPORT D18X8.5 FIL.M6X 10/16 Genuine Lamborghini - New (to order)
    # 018
    MPN: 0062001379
    FLANGE
    (Valid for USA & CANADA - March 2001)
    from £45.52
    from £45.52
    SOLENOID VALVE BRACKET Genuine Lamborghini - New (to order)
    # 019
    MPN: 0062001422
    PIPE
    (Valid for USA & CANADA - March 2001)
    PIPE 7-1 2 Genuine Lamborghini - New (to order)
    # 020
    MPN: 008830128
    CLIP
    (Valid for USA & CANADA - March 2001)
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 021
    MPN: 0062001421
    SOLENOID VALVE
    (Valid for USA & CANADA - March 2001)
    from £124.09
    from £124.09
    SOLENOID VALVE Genuine Lamborghini - New (to order)
    # 022
    MPN: 0062001420
    PIPE
    (Valid for USA & CANADA - March 2001)
    from £8.68
    from £8.68
    CANISTER-SOLENOID PIPE Genuine Lamborghini - New (to order)
    # 023
    MPN: 0062007253
    CONNECTOR
    (Valid for USA & CANADA - March 2001)
    CONNECTOR Genuine Lamborghini - New (to order)
    # 024
    MPN: 0062006532
    VAPOUR FILTER
    (Valid for USA & CANADA - March 2001)
    from £193.08
    from £193.08
    CANISTER Genuine Lamborghini - New (to order)
    CANISTER Genuine Lamborghini - Used In stock
    # 025
    MPN: 0062006534
    BRACKET
    (Valid for USA & CANADA - March 2001)
    BRACKET Genuine Lamborghini - New (to order)
