lamborghini diablo 6.0 (2001) bumpers (valid for gb & australia - march 2001) parts diagram

71.96.93.01.00 - Bumpers (Valid for GB & Australia - March 2001)

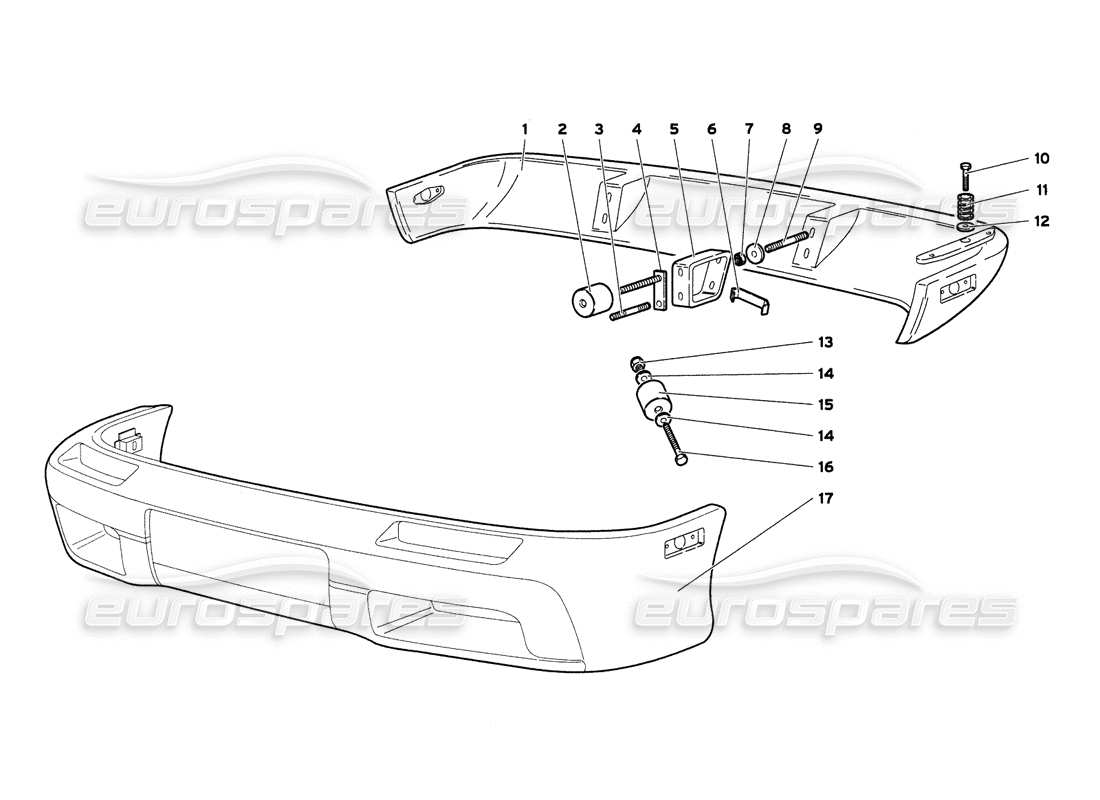

Lamborghini Diablo 6.0 (2001) Bumpers (Valid for GB & Australia - March 2001) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 0093007424
REAR BUMPER
(Valid for USA & CANADA - March 2001)
from £7,822.65
from £7,822.65
# 002
MPN: 009463125
RUBBER PAD
(Valid for USA & CANADA - March 2001)
from £23.35
from £23.35
# 003
MPN: 008300912
STUD
(Valid for USA & CANADA - March 2001)
from £29.02
from £29.02
# 004
MPN: 009463215
PLATE
(Valid for USA & CANADA - March 2001)
from £8.54
from £8.54
# 005
MPN: 009463213
SUPPORT
(Valid for USA & CANADA - March 2001)
from £107.17
from £107.17
# 006
MPN: 009463216
CLIP
(Valid for USA & CANADA - March 2001)
from £3.16
from £3.16
# 007
MPN: N0111849
NUT
(Valid for USA & CANADA - March 2001)
from £1.39
from £1.39
This part replaces part number 008200809
# 008
MPN: 008200801
WASHER
(Valid for USA & CANADA - March 2001)
Supersession
Supersession
# 009
MPN: 008200840
STUD
(Valid for USA & CANADA - March 2001)
# 010
MPN: 008100842
SCREW
(Valid for USA & CANADA - March 2001)
from £1.05
from £1.05
# 011
MPN: 009463217
SPRING
(Valid for USA & CANADA - March 2001)
from £2.13
from £2.13
# 012
MPN: 007063142
WASHER
(Valid for USA & CANADA - March 2001)
from £11.03
from £11.03
# 013
MPN: N0111849
NUT
(Valid for USA & CANADA - March 2001)
from £1.47
from £1.47
This part replaces part number 008200809
# 014
MPN: 008200801
WASHER
(Valid for USA & CANADA - March 2001)
Supersession
Supersession
# 015
MPN: 009463125
RUBBER PAD
(Valid for USA & CANADA - March 2001)
from £23.35
from £23.35
# 016
MPN: 008100861
SCREW
(Valid for USA & CANADA - March 2001)
from £1.95
from £1.95
# 017
MPN: 0093007422
FRONT BUMPER
(Valid for USA & CANADA - March 2001)
from £8,386.44
from £8,386.44
