lamborghini diablo 6.0 (2001) doors parts diagram

72.01.00 - Doors

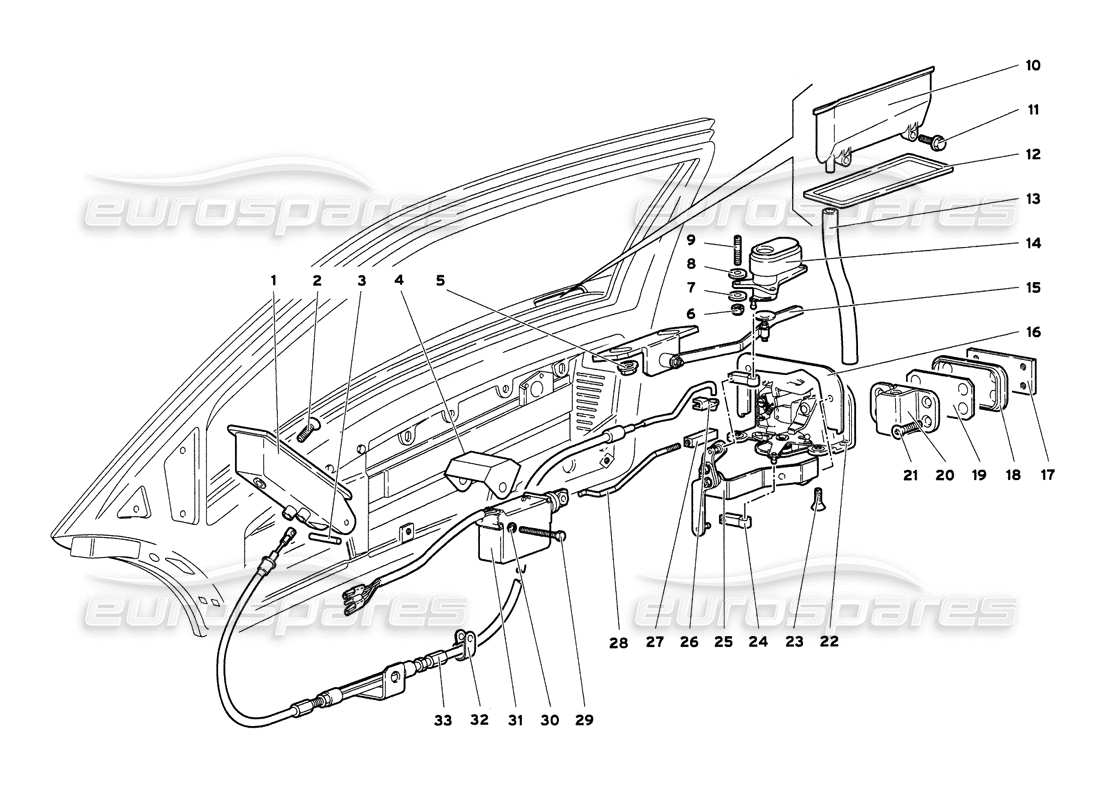

Lamborghini Diablo 6.0 (2001) Doors Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 001
                                                                  MPN: 400827185
                                                                  HANDLE
                                                                  from £1,132.69
                                                                  from £1,132.69
                                                                  # 002
                                                                  MPN: 008700539
                                                                  SCREW
                                                                  Supersession
                                                                  Supersession
                                                                  # 003
                                                                  MPN: 008900305
                                                                  PIN
                                                                  from £0.53
                                                                  from £0.53
                                                                  # 004
                                                                  MPN: 009921112
                                                                  RH PROTECTION
                                                                  from £53.89
                                                                  from £53.89
                                                                  # 004
                                                                  MPN: 009921113
                                                                  LH PROTECTION
                                                                  from £9.83
                                                                  from £9.83
                                                                  # 005
                                                                  MPN: 008200614
                                                                  NUT
                                                                  Supersession
                                                                  Supersession
                                                                  # 006
                                                                  MPN: WHT002959
                                                                  NUT
                                                                  from £0.53
                                                                  from £0.53
                                                                  # 007
                                                                  MPN: 008400401
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  # 008
                                                                  MPN: 008400401
                                                                  SPACE WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  # 009
                                                                  MPN: 008300403
                                                                  STUD (L=21 MM)
                                                                  from £16.59
                                                                  from £16.59
                                                                  # 009
                                                                  MPN: 009921221
                                                                  STUD (L=18 MM)
                                                                  from £2.69
                                                                  from £2.69

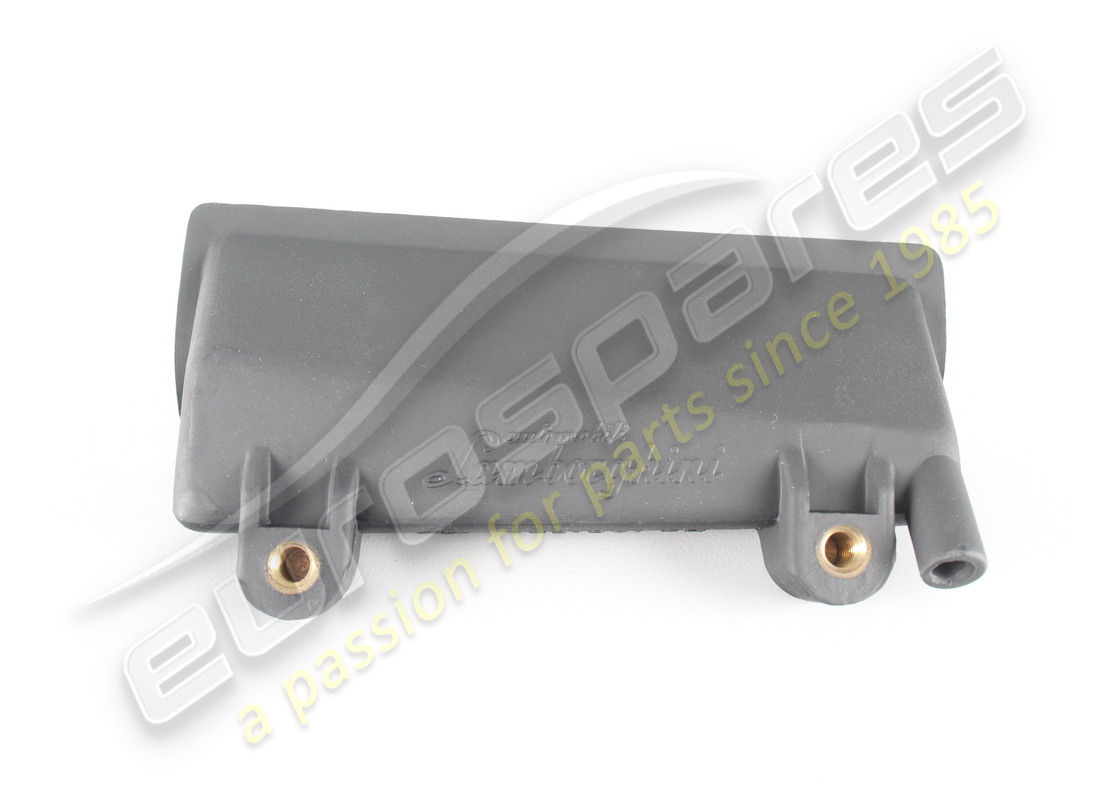

                                                                  # 010
                                                                  MPN: 009421200
                                                                  RH HANDLE
                                                                  from £193.69
                                                                  from £193.69
                                                                  # 010
                                                                  MPN: 009421201
                                                                  LH HANDLE
                                                                  from £202.77
                                                                  from £202.77
                                                                  # 011
                                                                  MPN: N10718801
                                                                  SCREW
                                                                  from £0.59
                                                                  from £0.59
                                                                  # 012
                                                                  MPN: 009421712
                                                                  RH GASKET
                                                                  from £3.45
                                                                  from £3.45
                                                                  # 012
                                                                  MPN: 009421713
                                                                  LH GASKET
                                                                  from £8.34
                                                                  from £8.34
                                                                  # 013
                                                                  MPN: 009421245
                                                                  PIPE
                                                                  from £11.28
                                                                  from £11.28
                                                                  # 014
                                                                  MPN: 0072005036
                                                                  LH & RH DOOR BUTTONS
                                                                  from £282.74
                                                                  from £282.74
                                                                  # 014
                                                                  MPN: 009421227/a
                                                                  RIGHT DOOR BUTTON
                                                                  use : 0072005036 (LH & RH buttons)
                                                                  # 014
                                                                  MPN: 009421228/a
                                                                  LEFT DOOR BUTTON
                                                                  use : 0072005036 (LH & RH buttons)
                                                                  # 015
                                                                  MPN: 0072008667
                                                                  RH IDLE LEVER
                                                                  from £184.07
                                                                  from £184.07
                                                                  # 015
                                                                  MPN: 009921224
                                                                  LH IDLE LEVER
                                                                  from £153.39
                                                                  from £153.39
                                                                  # 016
                                                                  MPN: 009421273
                                                                  RH GASKET
                                                                  # 017
                                                                  MPN: 007021253
                                                                  PLATE
                                                                  from £18.62
                                                                  from £18.62
                                                                  # 018
                                                                  MPN: 410837899
                                                                  PLATE
                                                                  from £9.34
                                                                  from £9.34
                                                                  # 019
                                                                  MPN: 410837963
                                                                  SPACER
                                                                  from £9.81
                                                                  from £9.81
                                                                  # 019
                                                                  MPN: 410837964
                                                                  SPACER
                                                                  from £9.56
                                                                  from £9.56
                                                                  # 020
                                                                  MPN: 410831407A
                                                                  LEFT LOCK STRIKER
                                                                  from £163.12
                                                                  from £163.12
                                                                  # 020
                                                                  MPN: 410831408A
                                                                  RIGHT LOCK STRIKER
                                                                  from £287.71
                                                                  from £287.71
                                                                  # 021
                                                                  MPN: 008700610
                                                                  SCREW
                                                                  from £0.51
                                                                  from £0.51

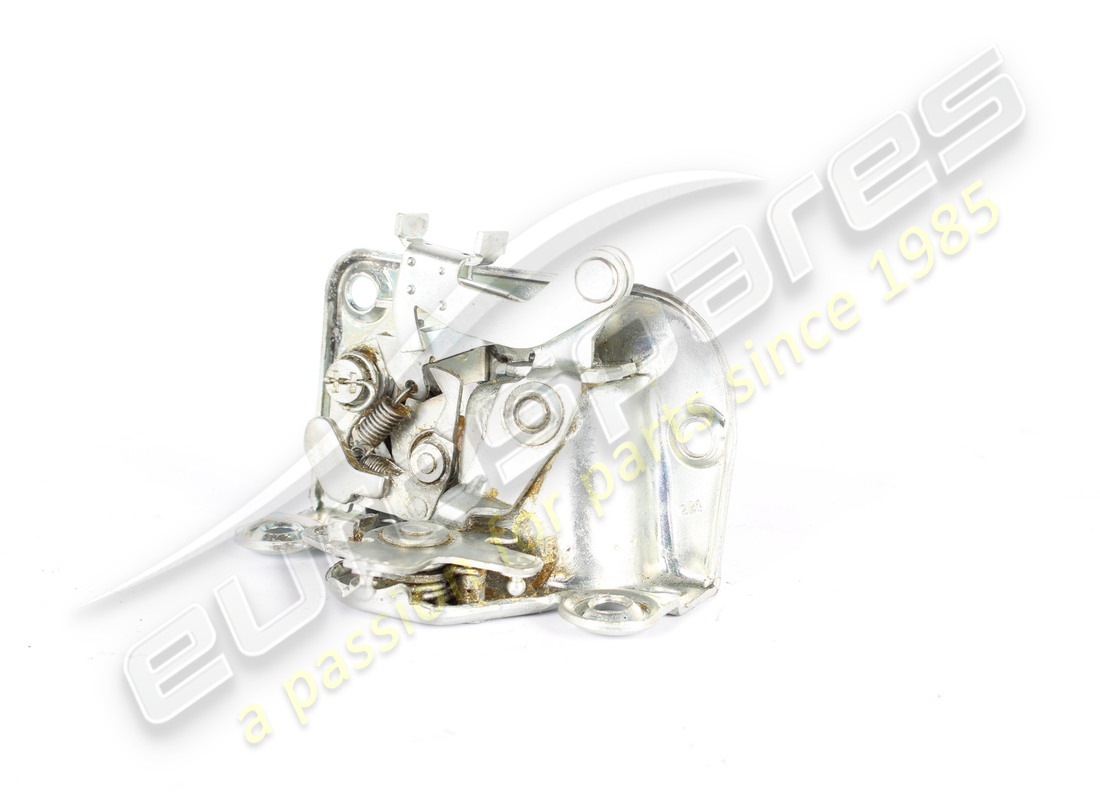

                                                                  # 022
                                                                  MPN: 009421278
                                                                  RH LOCK
                                                                  from £774.39
                                                                  from £774.39
                                                                  # 022
                                                                  MPN: 009421279
                                                                  LH LOCK
                                                                  from £332.48
                                                                  from £332.48
                                                                  # 023
                                                                  MPN: 008700610
                                                                  SCREW
                                                                  from £0.51
                                                                  from £0.51
                                                                  # 024
                                                                  MPN: 009421214
                                                                  COUPLING
                                                                  Supersession
                                                                  Supersession
                                                                  # 025
                                                                  MPN: 009921225
                                                                  RH IDLE LEVER
                                                                  from £207.95
                                                                  from £207.95
                                                                  # 025
                                                                  MPN: 009921226
                                                                  LH IDLE LEVER
                                                                  from £153.39
                                                                  from £153.39
                                                                  # 026
                                                                  MPN: 009421251
                                                                  CLIP
                                                                  Supersession
                                                                  Supersession
                                                                  # 027
                                                                  MPN: 007021016
                                                                  PAWL
                                                                  Supersession
                                                                  Supersession
                                                                  # 028
                                                                  MPN: 009921204
                                                                  RH TIE ROD
                                                                  from £13.90
                                                                  from £13.90
                                                                  # 028
                                                                  MPN: 009921211
                                                                  LH TIE ROD
                                                                  from £13.90
                                                                  from £13.90
                                                                  # 029
                                                                  MPN: 008100404
                                                                  SCREW
                                                                  Supersession
                                                                  Supersession
                                                                  # 030
                                                                  MPN: 008400401
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession

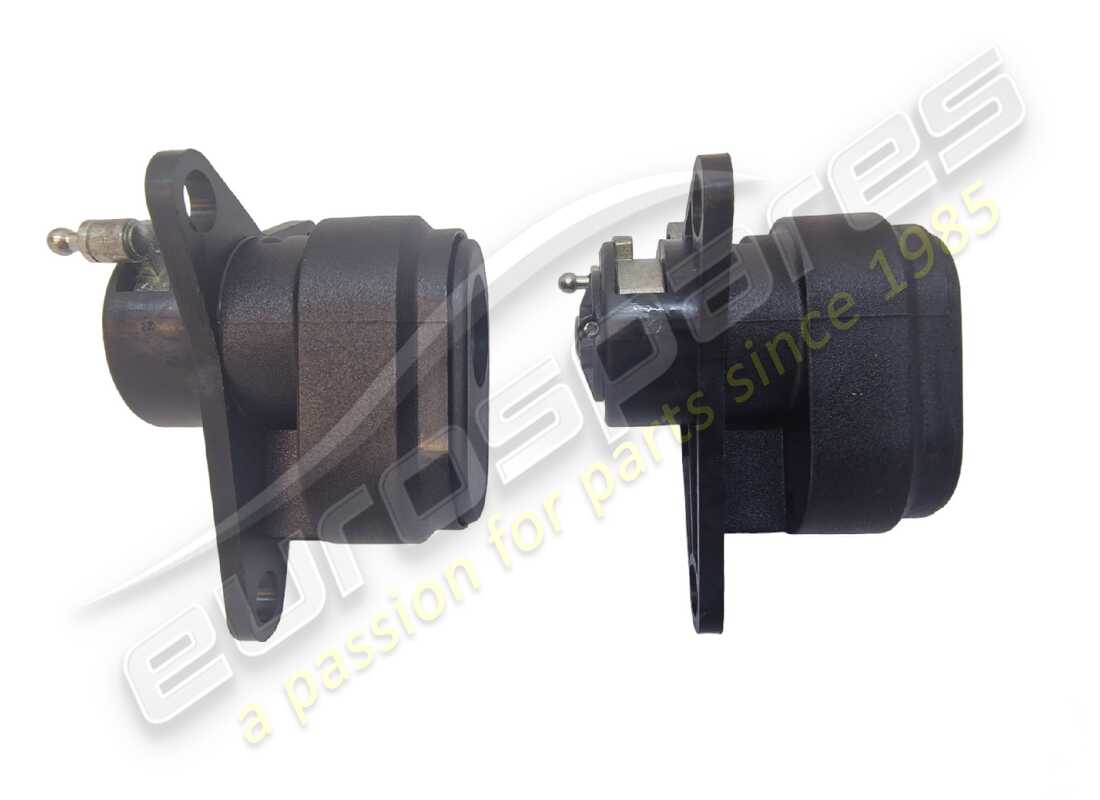

                                                                  # 031
                                                                  MPN: 0R1320007
                                                                  LHS DOOR ACTUATOR
                                                                  from £555.96
                                                                  from £555.96
                                                                  # 031
                                                                  MPN: 0R1320008
                                                                  RHS DOOR ACTUATOR
                                                                  from £262.86
                                                                  from £262.86
                                                                  # 032
                                                                  MPN: 008830907
                                                                  CLAMP
                                                                  from £0.52
                                                                  from £0.52
                                                                  # 033
                                                                  MPN: 009921010
                                                                  RH CABLE
                                                                  from £54.39
                                                                  from £54.39
                                                                  # 033
                                                                  MPN: 009921011
                                                                  LH CABLE
                                                                  from £54.39
                                                                  from £54.39
