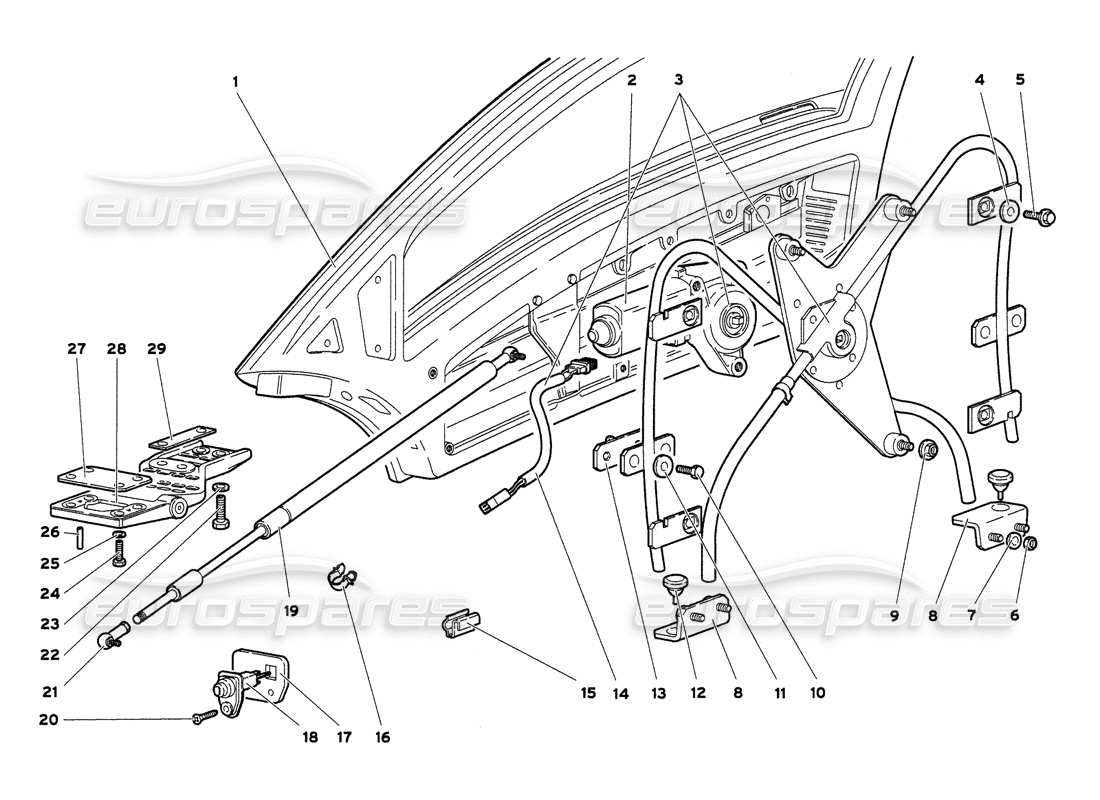

72.02.00 - Doors
Lamborghini Diablo 6.0 (2001) Doors Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 0072009904
RH DOOR
from £7,039.14
from £7,039.14
# 001
MPN: 0072009906
LH DOOR
from £7,076.45
from £7,076.45
# 002
MPN: 009421604
RH MOTOR
from £307.60
from £307.60
# 002
MPN: 009421605
LH MOTOR
from £307.60
from £307.60
# 003
MPN: 009421600
RH WINDOW REGULATOR KIT
from £393.41
from £393.41
# 003
MPN: 009421601
LH WINDOW REGULATOR KIT
from £1,296.97
from £1,296.97
# 004
MPN: WHT002961
WASHER
from £0.51
from £0.51
This part replaces part number 008400607
# 005
MPN: 008700663
SCREW
from £0.51
from £0.51
# 006
MPN: N0211963
NUT
from £0.51
from £0.51
# 007
MPN: WHT003040
WASHER
from £4.55
from £4.55
# 008
MPN: 009421429
RH DOOR PLATE
from £8.92
from £8.92
# 008
MPN: 009421430
LH DOOR PLATE
from £163.86
from £163.86
# 009
MPN: 008200614
NUT
Supersession
Supersession
# 010
MPN: N01020717
SCREW
from £0.47
from £0.47
This part replaces part number 008100504
# 011
MPN: WHT003040
WASHER
from £4.55
from £4.55
# 012
MPN: 009421428
RUBBER BUMPER
from £3.24
from £3.24
# 013
MPN: 009421607
BRACKET
from £37.32
from £37.32
# 014
MPN: 009421606
WIRING
from £15.85
from £15.85
# 015
MPN: 008830411
CLIP
from £0.83
from £0.83
# 016
MPN: 008830302
STRAP
Supersession
Supersession
# 017
MPN: 005934448
PLATE
from £19.49
from £19.49
# 018
MPN: 005934450
SWITCH
from £13.56
from £13.56
# 019
MPN: 0072007577
SHOCK ABSORBER
Supersession
Supersession
# 020
MPN: WHT003304
SCREW
from £0.53
from £0.53
# 021
MPN: 410837262
SHOCK ABSORBER BALL JOINT
from £5.45
from £5.45
# 022
MPN: 008101008
SCREW
from £9.69
from £9.69
# 023
MPN: 008411015
WASHER
from £7.05
from £7.05
# 024
MPN: 008100821
SCREW
Supersession
Supersession
# 025
MPN: N90179103
WASHER
from £0.98
from £0.98
This part replaces part number 008400801
# 026
MPN: 008900401
PIN
from £0.53
from £0.53
# 027
MPN: 004132051
0.8 MM SHIM
Supersession
Supersession
# 027
MPN: 004132052
1.0 MM SHIM
Supersession
Supersession
# 027
MPN: 004132053
1.2 MM SHIM
Supersession
Supersession
# 027
MPN: 004132054
1.5 MM SHIM
Supersession
Supersession
# 028
MPN: 009421030
LH HINGE
from £802.58
from £802.58
# 028
MPN: 410831402
RH HINGE
from £699.50
from £699.50
This part replaces part number 009421359
# 029
MPN: 009421380
1.0 MM SHIM
Supersession
Supersession
# 029
MPN: 009421381
1.5 MM SHIM
from £17.75
from £17.75

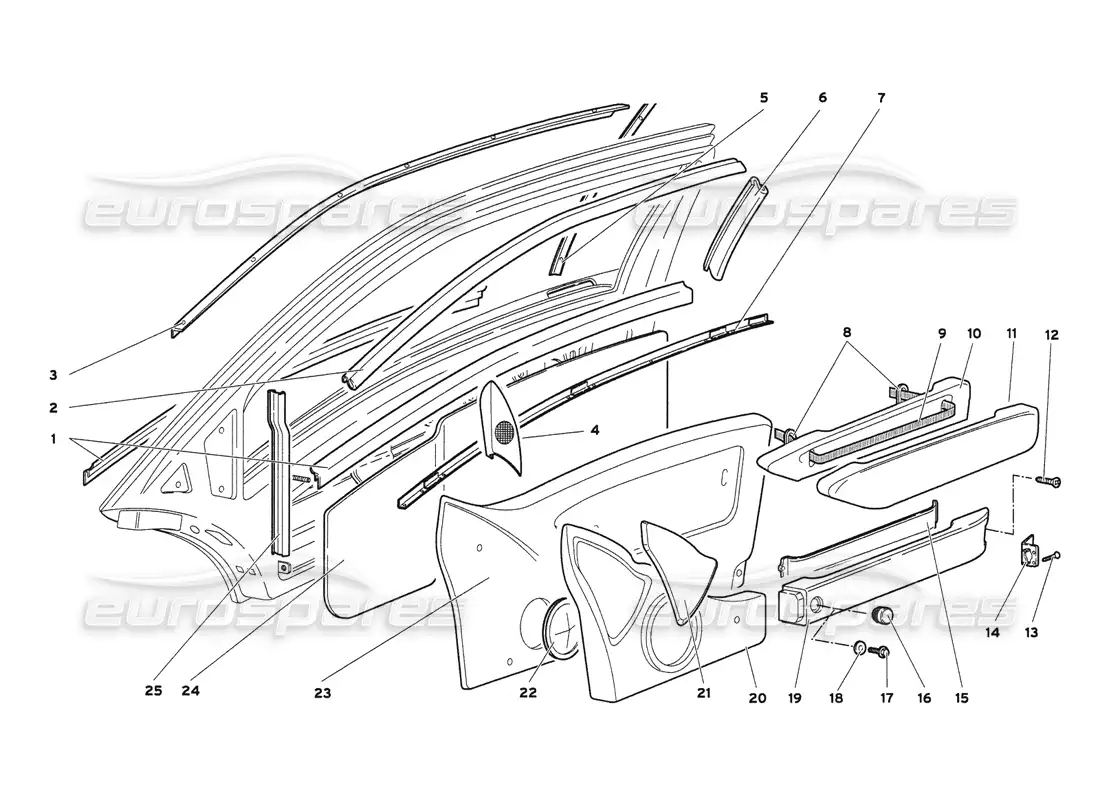

-part-diagram-72.03.00.webp "LAMBORGHINI DIABLO 6.0 (2001) DOORS PARTS DIAGRAM")
-part-diagram-73.01.00.webp "LAMBORGHINI DIABLO 6.0 (2001) REAR BONNET AND SPOILER PARTS DIAGRAM")
-part-diagram-74.76.42.01.00.webp "LAMBORGHINI DIABLO 6.0 (2001) PEDALS (VALID FOR GB & AUSTRALIA - MARCH 2001) PARTS DIAGRAM")

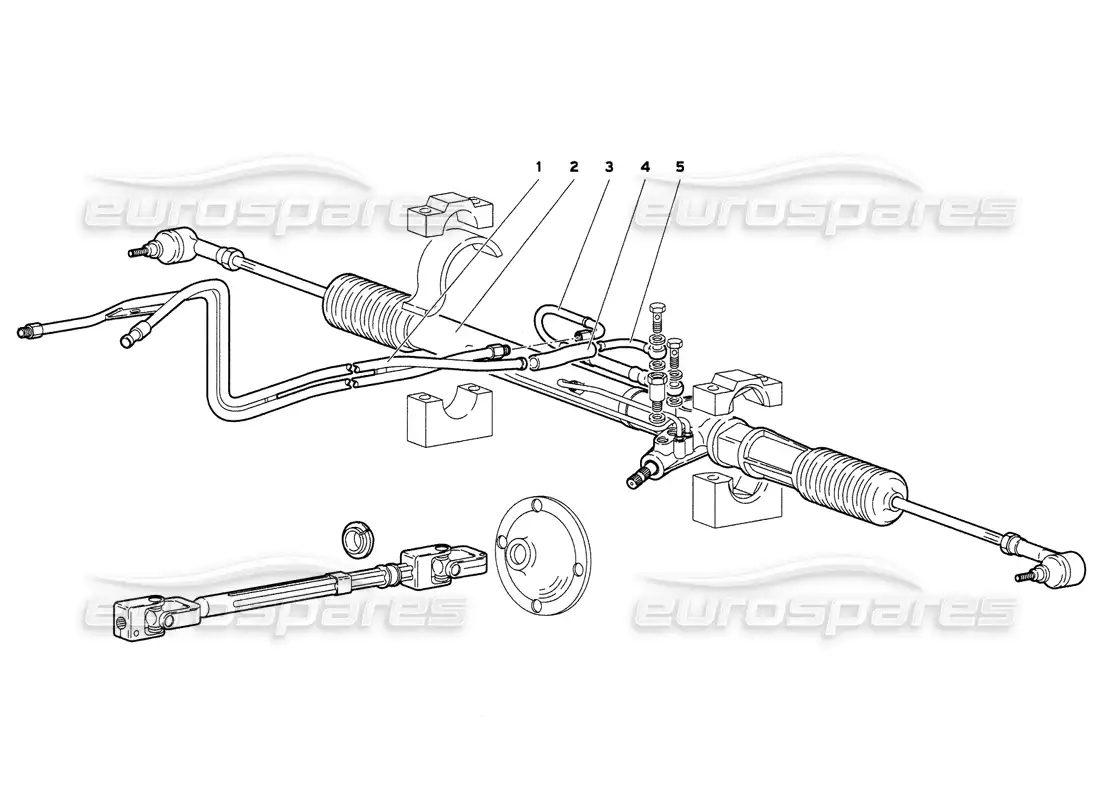

-part-diagram-74.76.43.03.00.webp "LAMBORGHINI DIABLO 6.0 (2001) STEERING (VALID FOR GB & AUSTRALIA - MARCH 2001) PARTS DIAGRAM")
