lamborghini diablo 6.0 (2001) external rear view mirrors parts diagram

97.01.00 - EXTERNAL REAR VIEW MIRRORS

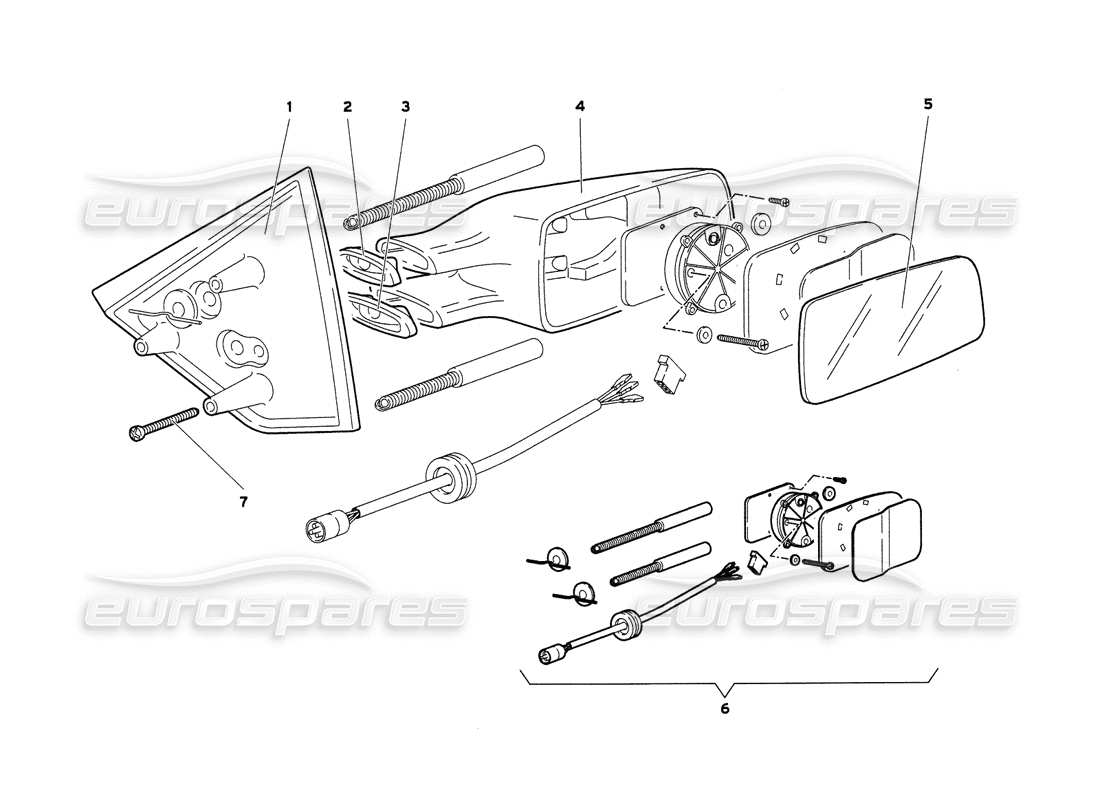

Lamborghini Diablo 6.0 (2001) External Rear View Mirrors Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 009490461AVS
        RH REAR VIEW MIRROR BASE
        from £356.53
        from £356.53
        MIRROR BASE RIGHT SE Genuine Lamborghini - New (to order)
        # 001
        MPN: 009490462AVS
        LH REAR VIEW MIRROR BASE
        Lamborghini PART 009490462AVS Genuine Lamborghini - New (to order)
        # 001
        MPN: 009490475AVS
        RH REAR VIEW MIRROR BASE
        (Valid for GB - March 2001)
        RH REAR VIEW MIRROR BASE Genuine Lamborghini - New (to order)
        # 001
        MPN: 009490475AVS
        RH REAR VIEW MIRROR BASE
        (Valid for AUSTRALIA - March 2001)
        RH REAR VIEW MIRROR BASE Genuine Lamborghini - New (to order)
        # 001
        MPN: 009490476AVS
        LH REAR VIEW MIRROR BASE
        (Valid for GB - March 2001)
        LH REAR VIEW MIRROR BASE Genuine Lamborghini - New (to order)
        # 001
        MPN: 009490476AVS
        LH REAR VIEW MIRROR BASE
        (Valid for AUSTRALIA - March 2001)
        LH REAR VIEW MIRROR BASE Genuine Lamborghini - New (to order)
        # 002
        MPN: 009490426
        RH UPPER GASKET
        from £64.16
        from £64.16
        RH UPPER MIRROR SEAL Genuine Lamborghini - New (to order)
        # 002
        MPN: 009490428
        LH UPPER GASKET
        from £64.16
        from £64.16
        LH UPPER MIRROR SEAL Genuine Lamborghini - New (to order)
        # 003
        MPN: 009490427
        RH LOWER GASKET
        from £108.20
        from £108.20
        RH LOWER MIRROR SEAL Genuine Lamborghini - New (to order)
        # 003
        MPN: 009490429
        LH LOWER GASKET
        from £64.16
        from £64.16
        LH LOWER MIRROR SEAL Genuine Lamborghini - New (to order)
        # 004
        MPN: 009490471AVS
        RH MIRROR BODY
        from £266.97
        from £266.97
        MIRROR BODY RIGHT SE Genuine Lamborghini - New (to order)
        # 004
        MPN: 009490472AVS
        LH MIRROR BODY
        from £381.40
        from £381.40
        CORPO SPECCHIO SX SE Genuine Lamborghini - New (to order)
        # 004
        MPN: 009490473AVS
        RH MIRROR BODY
        (Valid for GB - March 2001)
        RH MIRROR BODY Genuine Lamborghini - New (to order)
        # 004
        MPN: 009490473AVS
        RH MIRROR BODY
        (Valid for AUSTRALIA - March 2001)
        RH MIRROR BODY Genuine Lamborghini - New (to order)
        # 004
        MPN: 009490474AVS
        LH MIRROR BODY
        (Valid for GB - March 2001)
        LH MIRROR BODY Genuine Lamborghini - New (to order)
        # 004
        MPN: 009490474AVS
        LH MIRROR BODY
        (Valid for AUSTRALIA - March 2001)
        LH MIRROR BODY Genuine Lamborghini - New (to order)
        # 005
        MPN: 009490410
        RH MIRROR
        (Valid for USA - March 2001)
        from £21.81
        from £21.81
        FLAT REARVIEW MIRROR Genuine Lamborghini - New (to order)
        # 005
        MPN: 009490410
        LH MIRROR
        (Valid for CANADA - March 2001)
        from £21.81
        from £21.81
        FLAT REARVIEW MIRROR Genuine Lamborghini - New (to order)
        # 005
        MPN: 009490411
        LH MIRROR
        (Valid for USA - March 2001)
        from £111.55
        from £111.55
        FLAT REARVIEW MIRROR Genuine Lamborghini - New (to order)
        # 005
        MPN: 009490411
        RH MIRROR
        (Valid for CANADA - March 2001)
        from £111.55
        from £111.55
        FLAT REARVIEW MIRROR Genuine Lamborghini - New (to order)
        # 005
        MPN: 009490412
        RIGHT MIRROR GLASS
        from £111.55
        from £111.55
        RH CONVEX REARVIEW MIRROR Genuine Lamborghini - New (to order)
        # 005
        MPN: 009490413
        LH MIRROR
        from £46.11
        from £46.11
        LH CONVEX REARVIEW MIRROR Genuine Lamborghini - New (to order)
        # 006
        MPN: 600940139
        LH REAR VIEW MIRROR KIT
        (Valid for GB - March 2001)
        from £247.29
        from £247.29
        KIT RET.MOTOR.SX GUIDA DX Genuine Lamborghini - New (to order)
        # 006
        MPN: 600940139
        LH REAR VIEW MIRROR KIT
        (Valid for AUSTRALIA - March 2001)
        from £247.29
        from £247.29
        KIT RET.MOTOR.SX GUIDA DX Genuine Lamborghini - New (to order)
        # 006
        MPN: 600940140
        RH REAR VIEW MIRROR KIT
        (Valid for GB - March 2001)
        from £247.29
        from £247.29
        KIT RET.MOTOR.DX GUIDA DX Genuine Lamborghini - New (to order)
        # 006
        MPN: 600940140
        RH REAR VIEW MIRROR KIT
        (Valid for AUSTRALIA - March 2001)
        from £247.29
        from £247.29
        KIT RET.MOTOR.DX GUIDA DX Genuine Lamborghini - New (to order)
        # 006
        MPN: 600949005
        LH REAR VIEW MIRROR KIT
        from £2,810.09
        from £2,810.09
        LH DOOR MIRROR KIT Genuine Lamborghini - New (to order)
        # 006
        MPN: 600949006
        RH REAR VIEW MIRROR KIT
        from £2,810.09
        from £2,810.09
        RH DOOR MIRROR KIT Genuine Lamborghini - New (to order)
        # 007
        MPN: 008700329
        SCREW
        from £0.52
        from £0.52
        LOCK SCREW 3.5X38DIN7982/B Genuine Lamborghini - New In stock
