lamborghini diablo gt (1999) accessories for left cylinder head parts diagram

11.04.00 - accessories for left cylinder head

Lamborghini Diablo GT (1999) Accessories for Left Cylinder Head Parts Diagram

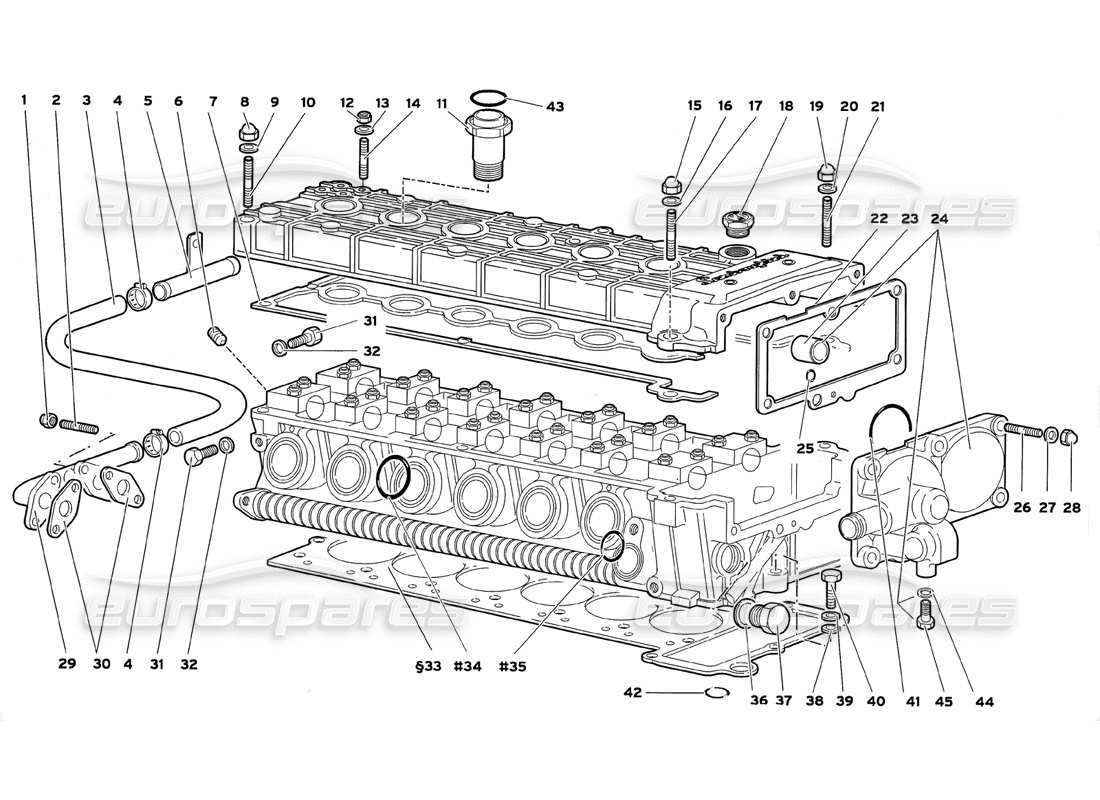

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 008200605
    NUT
    DADO
    from £1.74
    from £1.74
    # 002
    MPN: 008300610
    STUD
    PRIGIONIERO
    from £15.47
    from £15.47
    # 003
    MPN: 410819370
    PIPE
    Tubo
    from £38.09
    from £38.09
    # 004
    MPN: 008832003
    STRAP
    FASCETTA
    from £27.78
    from £27.78
    # 005
    MPN: 001730064
    CONNECTION
    GIUNZIONE INTERMEDIA
    from £14.85
    from £14.85
    # 006
    MPN: 008700644
    PLUG
    TAPPO
    Supersession
    Supersession
    # 007
    MPN: 07M103483A
    GASKET
    (Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) GUARNIZIONE
    from £93.82
    from £93.82
    # 008
    MPN: 008200605
    NUT
    DADO
    from £1.89
    from £1.89
    # 009
    MPN: 008410602
    WASHER
    RONDELLA
    from £28.85
    from £28.85
    # 010
    MPN: 008300650
    STUD
    PRIGIONIERO
    from £7.55
    from £7.55
    # 011
    MPN: 0011004007
    UNION
    BOCCHETTONE
    from £112.40
    from £112.40
    # 012
    MPN: 008200606
    NUT
    DADO
    Supersession
    Supersession
    # 013
    MPN: 008400606
    WASHER
    RONDELLA
    Supersession
    Supersession
    # 014
    MPN: 008300613
    STUD
    PRIGIONIERO
    from £3.07
    from £3.07
    # 015
    MPN: 008200605
    NUT
    DADO
    from £1.89
    from £1.89
    # 016
    MPN: 008410602
    WASHER
    RONDELLA
    from £28.85
    from £28.85
    # 017
    MPN: 008300637
    STUD
    PRIGIONIERO
    from £9.00
    from £9.00
    # 018
    MPN: 001136032
    CAP
    INTRODUCTION CAP
    from £8.79
    from £8.79
    # 019
    MPN: 008200605
    NUT
    DADO
    from £1.89
    from £1.89
    # 020
    MPN: 008410602
    WASHER
    RONDELLA
    from £28.85
    from £28.85
    # 021
    MPN: 008300651
    STUD
    PRIGIONIERO
    from £7.42
    from £7.42
    # 022
    MPN: 0011004551
    GASKET
    (Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) GUARNIZIONE
    from £20.20
    from £20.20
    # 023
    MPN: 0011000038
    BUSHING
    BOCCOLA
    from £31.44
    from £31.44
    # 024
    MPN: 0011006604
    VENT PIPE - COVER
    COPERCHIO - SFIATO COMPLETO
    # 025
    MPN: 008600905
    SEAL
    (Also Included In The Engine Gasket Kit) ANELLO TENUTA
    from £5.94
    from £5.94
    This part replaces part number 008600903
    # 026
    MPN: WHT003028
    STUD
    PRIGIONIERO
    from £12.54
    from £12.54
    # 027
    MPN: 008410810
    WASHER
    RONDELLA
    Supersession
    Supersession
    # 028
    MPN: 008200816
    NUT
    DADO
    from £2.90
    from £2.90
    # 029
    MPN: 001734153
    CONNECTION
    RACCORDO
    from £417.62
    from £417.62
    # 030
    MPN: 001121254
    GASKET
    (Also Included In The Engine Gasket Kit) GUARNIZIONE
    from £5.23
    from £5.23
    # 031
    MPN: 008100839
    SCREW
    VITE
    Supersession
    Supersession
    # 032
    MPN: 008400818
    WASHER
    RONDELLA
    Supersession
    Supersession
    # 033
    MPN: 0011000988
    GASKET
    (Also Included In The Engine Gasket Kit) GUARNIZIONE
    from £169.24
    from £169.24
    This part replaces part number 001129853 - and 1 more. Click to view details
    # 034
    MPN: 008604703
    SEAL
    (Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) ANELLO TENUTA
    from £5.37
    from £5.37
    This part replaces part number 008604701
    # 035
    MPN: 008603503
    SEAL
    (Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) ANELLO TENUTA
    from £2.61
    from £2.61
    This part replaces part number 008603501
    # 036
    MPN: 008402609
    WASHER
    (Also Included In The Engine Gasket Kit) RONDELLA
    Supersession
    Supersession
    # 037
    MPN: 07M103035
    PLUG
    from £38.19
    from £38.19
    # 038
    MPN: 008400806
    WASHER
    RONDELLA
    from £0.54
    from £0.54
    # 039
    MPN: 008410806
    WASHER
    RONDELLA
    Supersession
    Supersession
    # 040
    MPN: 008100807
    SCREW
    VITE
    from £0.53
    from £0.53
    # 041
    MPN: 008606205
    SEAL
    (Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) ANELLO TENUTA
    from £2.69
    from £2.69
    This part replaces part number 008606201
    # 042
    MPN: 008601203
    SEAL
    ANELLO TENUTA
    Supersession
    Supersession
    # 043
    MPN: 008602304
    O RING
    ANELLO TENUTA
    from £5.71
    from £5.71
    This part replaces part number 008602302
    # 044
    MPN: WHT003041
    WASHER
    (Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) RONDELLA
    from £0.54
    from £0.54
    This part replaces part number 008400609 - and 1 more. Click to view details
    # 045
    MPN: 008100631
    SCREW
    VITE
    from £0.54
    from £0.54
