11.05.00 - engine gasket kit

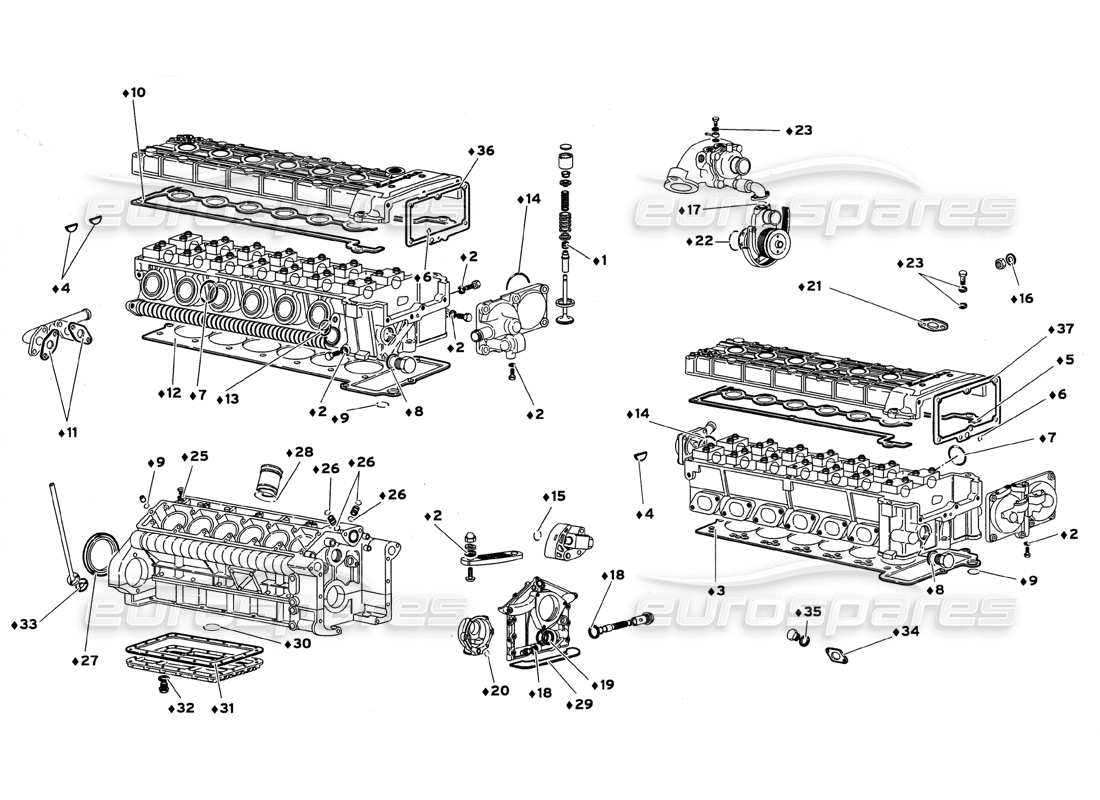

Lamborghini Diablo GT (1999) Engine Gasket Kit Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 07M109675
SEAL
from £9.56
from £9.56
# 002
MPN: WHT003041
WASHER
RONDELLA
from £0.51
from £0.51
This part replaces part number 008400609 - and 1 more. Click to view details
# 003
MPN: 0011000987
GASKET
Guarnizione
from £167.80
from £167.80
This part replaces part number 001129852 - and 1 more. Click to view details
# 004
MPN: 0011003411
COVER
COPERCHIO
Supersession
Supersession
# 005
MPN: 0011001011
GASKET
Guarnizione
from £30.35
from £30.35
# 006
MPN: 008600905
SEAL
ANELLO TENUTA
from £5.94
from £5.94
This part replaces part number 008600903
# 007
MPN: 008604703
SEAL
ANELLO TENUTA
from £5.15
from £5.15
This part replaces part number 008604701
# 008
MPN: 008402609
WASHER
RONDELLA
Supersession
Supersession
# 009
MPN: 008601203
SEAL
ANELLO TENUTA
Supersession
Supersession
# 010
MPN: 0011001012
GASKET
Guarnizione
from £24.95
from £24.95
# 011
MPN: 001121254
GASKET
Guarnizione
from £5.23
from £5.23
# 012
MPN: 0011000988
GASKET
Guarnizione
from £167.80
from £167.80
This part replaces part number 001129853 - and 1 more. Click to view details
# 013
MPN: 008603503
SEAL
ANELLO TENUTA
from £2.61
from £2.61
This part replaces part number 008603501
# 014
MPN: 008606205
SEAL
ANELLO TENUTA
from £4.04
from £4.04
This part replaces part number 008606201
# 015
MPN: 008601501
SEAL
ANELLO TENUTA
from £3.65
from £3.65
# 016
MPN: 008401008
WASHER
RONDELLA
Supersession
Supersession
# 017
MPN: WHT003062
SEAL
ANELLO TENUTA
from £3.98
from £3.98
This part replaces part number 008602802
# 018
MPN: 008403007
WASHER
RONDELLA
from £0.75
from £0.75
# 019
MPN: 008613702
SEAL
ANELLO TENUTA
from £36.37
from £36.37
# 020
MPN: 008601705
SEAL
ANELLO TENUTA
from £0.51
from £0.51
# 021
MPN: 001831058
GASKET
Guarnizione
from £2.95
from £2.95
# 022
MPN: WHT003018
SEAL
ANELLO TENUTA
from £53.01
from £53.01
This part replaces part number 008609907
# 023
MPN: 008400818
WASHER
RONDELLA
Supersession
Supersession
# 024
MPN: 008601106
SEAL
ANELLO TENUTA
# 025
MPN: 008401425
WASHER
RONDELLA
Supersession
Supersession
# 026
MPN: 008600705
SEAL
ANELLO TENUTA
# 027
MPN: 07M103089
SEAL
from £134.88
from £134.88
# 028
MPN: WHT003085
SEAL
ANELLO TENUTA
from £2.68
from £2.68
# 029
MPN: 001232219
GASKET
Guarnizione
from £2.99
from £2.99
# 030
MPN: 008609302
SEAL
ANELLO TENUTA
# 031
MPN: 001826521
GASKET
Guarnizione
from £78.27
from £78.27
# 032
MPN: 008402202
WASHER
RONDELLA
from £2.69
from £2.69
# 033
MPN: 001830006
GASKET
Guarnizione
from £4.67
from £4.67
# 034
MPN: 07M253039
GASKET
also 147705
from £24.13
from £24.13
# 035
MPN: 008401819
WASHER
RONDELLA
Supersession
Supersession
# 036
MPN: 0011004551
GASKET
Guarnizione
from £20.20
from £20.20
# 037
MPN: 0011003889
GASKET
Guarnizione
from £18.21
from £18.21
# 038
MPN: 0011005352
engine gasket kit
from £2,036.24
from £2,036.24
