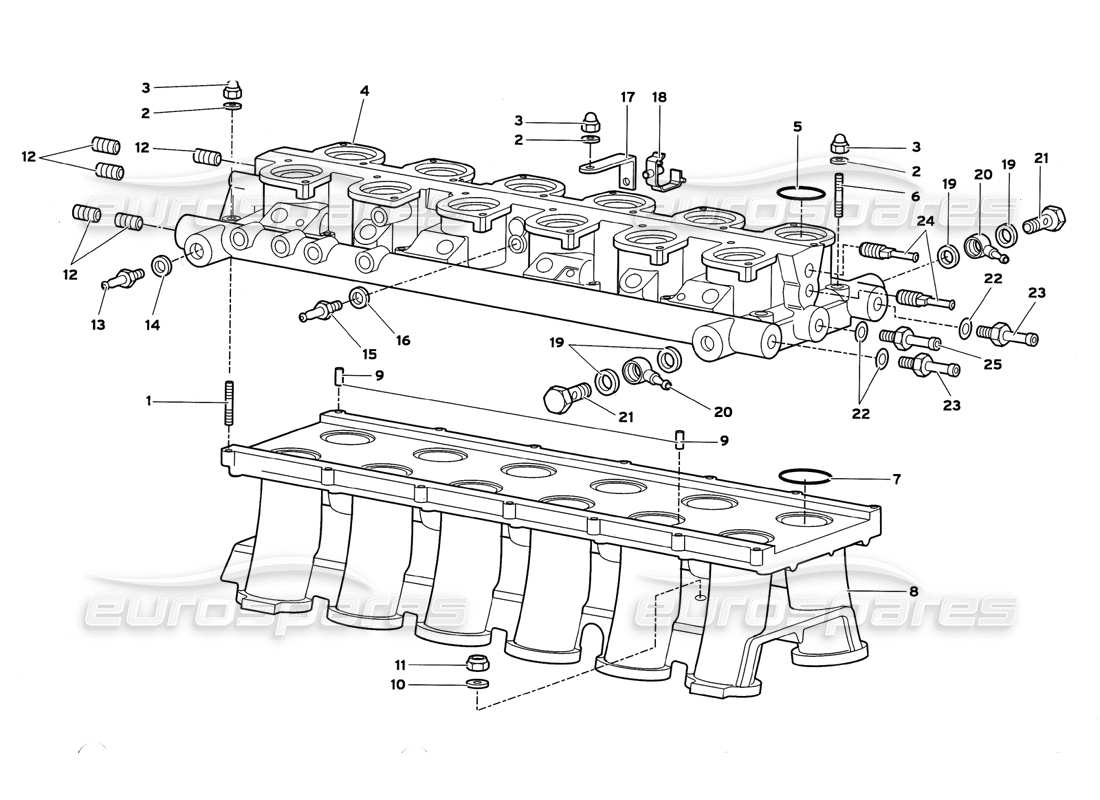

13.01.00 - INTAKE MANIFOLD
Lamborghini Diablo GT (1999) Intake Manifold Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008300662
STUD
PRIGIONIERO
from £16.56
from £16.56
# 002
MPN: 008410602
WASHER
RONDELLA
from £26.01
from £26.01
# 003
MPN: 008200605
NUT
DADO
from £1.74
from £1.74
# 004
MPN: 0013004561
UPPER MANIFOLD
COLETTORE SUPERIORE
from £11,458.28
from £11,458.28
# 005
MPN: 008604801

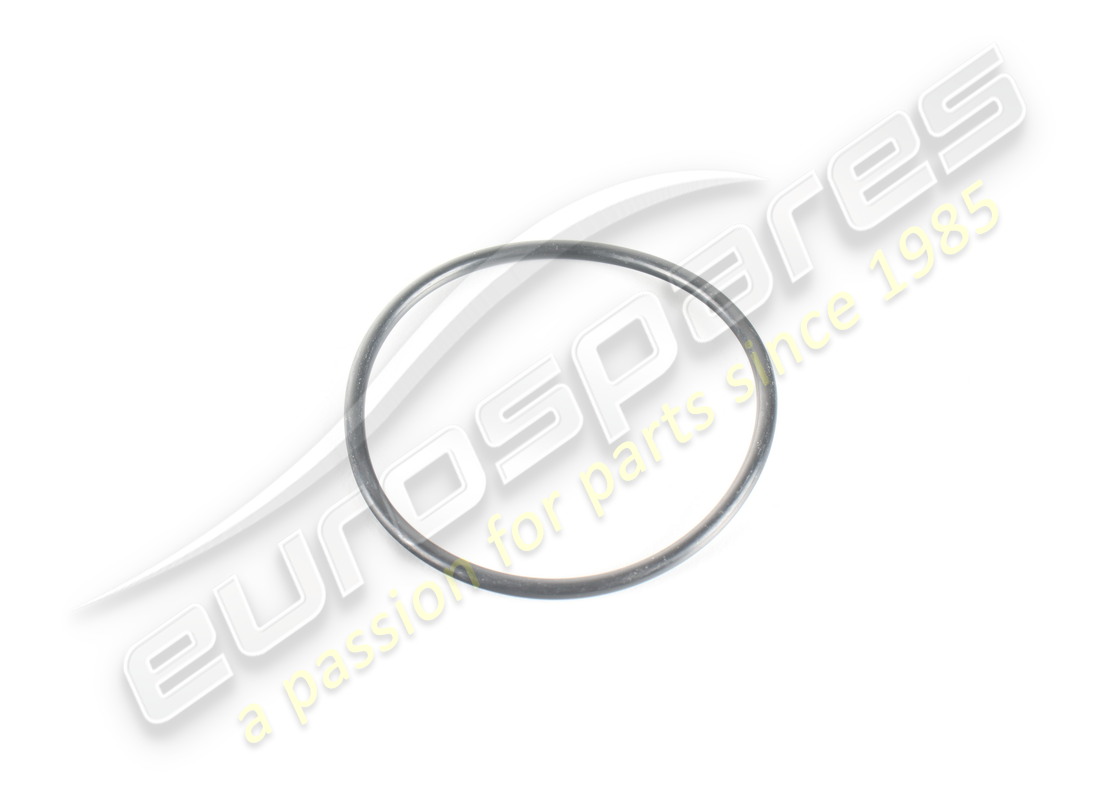

SEAL
ANELLO TENUTA
from £0.56
from £0.56
# 006
MPN: 008300621
STUD
PRIGIONIERO
from £2.95
from £2.95
# 007
MPN: 008604801
SEAL
ANELLO TENUTA
from £0.56
from £0.56
# 008
MPN: 0013004583
LOWER MANIFOLD
LOWER MANIFOLD
from £12,142.31
from £12,142.31
# 009
MPN: 008800604
DOWEL
GRAND
Supersession
Supersession
# 010
MPN: N90179103
WASHER
RONDELLA
from £1.01
from £1.01
This part replaces part number 008400801
# 011
MPN: 008200809
NUT
DADO
Supersession
Supersession
# 012
MPN: 008931204
PLUG
TAPPO
from £5.39
from £5.39
# 013
MPN: 0013004791
CONNECTION
RACCORDO
from £24.29
from £24.29
# 014
MPN: 008401408
WASHER
RONDELLA
from £1.29
from £1.29
# 015
MPN: 0010033993
CONNECTION
RACCORDO
# 016
MPN: 008400818
WASHER
RONDELLA
Supersession
Supersession
# 017
MPN: 0013006187
BRACKET
STAFFA
from £4.03
from £4.03
# 018
MPN: WHT003076
STRAP
FASCETTA
from £0.58
from £0.58
# 019
MPN: WHT003544
GASKET
Guarnizione
from £0.53
from £0.53
This part replaces part number 008401201
# 020
MPN: 0013005158
CONNECTION
RACCORDO
from £6.06
from £6.06
# 021
MPN: 0013005160
UNION
BOCCHETTONE
from £3.70
from £3.70
# 022
MPN: WHT003544
GASKET
Guarnizione
from £0.53
from £0.53
This part replaces part number 008401201
# 023
MPN: 0013004785
CONNECTION
RACCORDO
from £25.83
from £25.83
# 024
MPN: 0013004789
CONNECTION
RACCORDO
from £22.39
from £22.39
# 025
MPN: 0013004784
CONNECTION
RACCORDO
from £24.29
from £24.29
