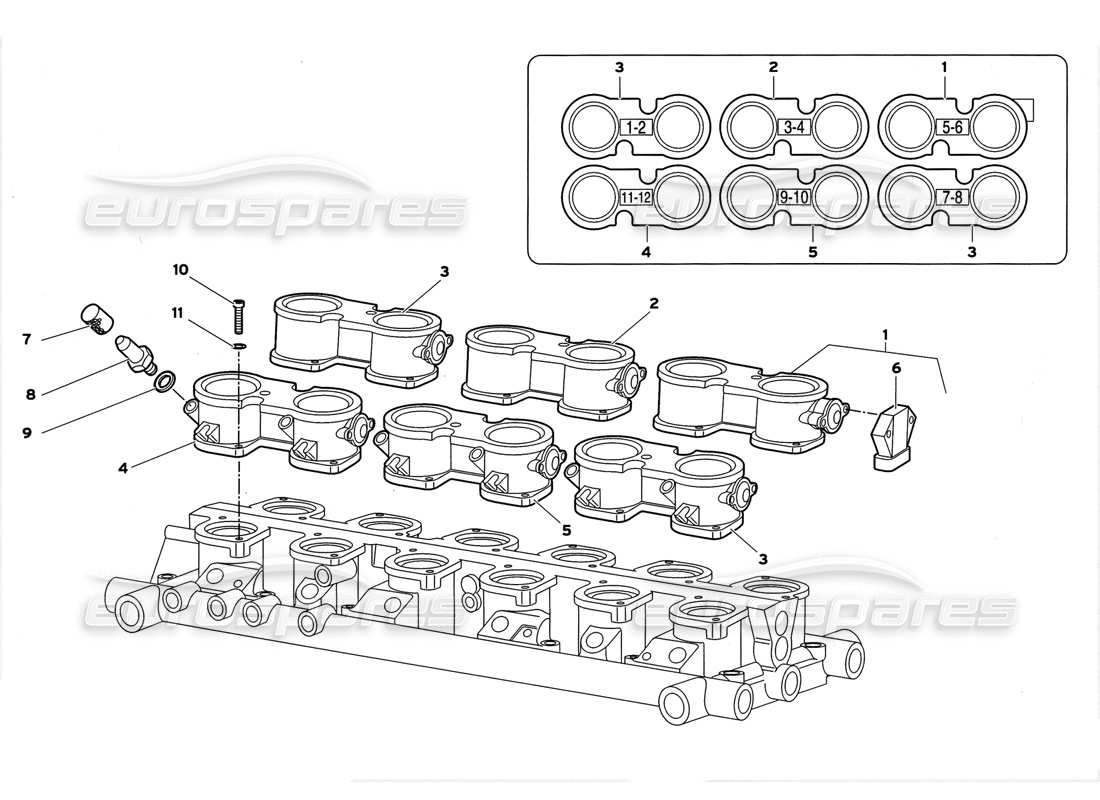

13.02.00 - INTAKE MANIFOLD

Lamborghini Diablo GT (1999) Intake Manifold Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 0013007614
POTENTIOMETER THROTTLE CASIN
POTENZIOMETRO CORPO FARFAL (5-6) CPL. Dl
from £2,085.22
from £2,085.22
# 002
MPN: 0013007417
THROTTLE HOLD
CORPO FARFALLATO (3-4)
from £1,911.10
from £1,911.10
# 003
MPN: 0013007419
THROTTLE HOLD
CORPO FARFALLATO (1-2) - (7-8)
from £1,911.10
from £1,911.10
# 004
MPN: 0013007420
THROTTLE HOLD
CORPO FARFALLATO (11-12)
from £1,911.10
from £1,911.10
# 005
MPN: 0013007418
THROTTLE HOLD
CORPO FARFALLATO (9-10)
from £1,911.10
from £1,911.10
# 006
MPN: 0013004660
POTENTIOMETER
POTENZIOMETRO
from £218.89
from £218.89
# 007
MPN: 0013005197
PLUG
TAPPO
from £3.45
from £3.45
# 008
MPN: 0013005194
CONNECTION
RACCORDO
from £16.33
from £16.33
# 009
MPN: WHT003041
GASKET
Guarnizione
from £0.50
from £0.50
This part replaces part number 008400609 - and 1 more. Click to view details
# 010
MPN: 008700547
SCREW
VITE
from £0.48
from £0.48
# 011
MPN: 008400509
WASHER
RONDELLA
from £0.50
from £0.50
