14.01.00 - crankgears

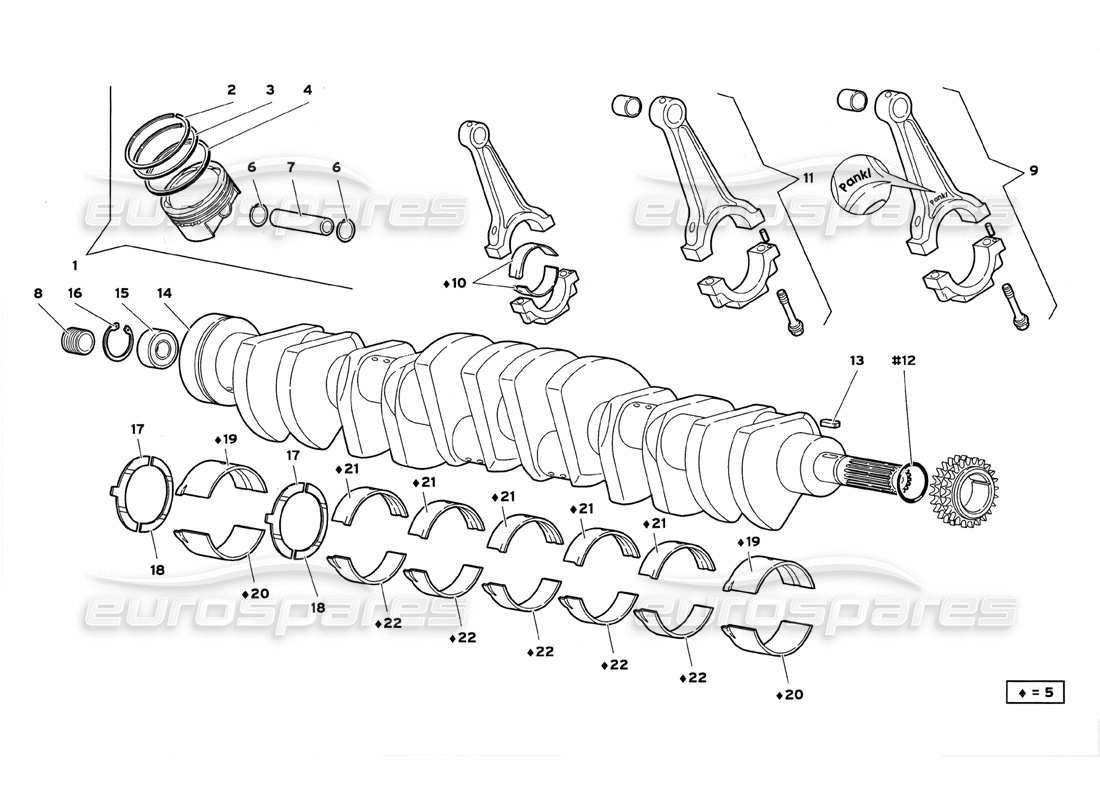

Lamborghini Diablo GT (1999) Crankgears Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 07M107075
PISTON
from £3,661.77
from £3,661.77
# 002
MPN: 07M107311
PISTON RING
SEGMENTO
from £206.22
from £206.22
# 003
MPN: 07M107313
PISTON RING
SEGMENTO
from £206.22
from £206.22
# 004
MPN: 07M107321
PISTON RING
SEGMENTO
from £543.01
from £543.01
# 005
MPN: 001434599
+20 MAINS & BIG END BEARINGS SET
from £2,271.77
from £2,271.77
# 006
MPN: 0014002937
RETAINER RING
ANELLO RITEGNO
# 007
MPN: 001430536
PISTON PIN
SPINOTTO
from £235.19
from £235.19
# 008
MPN: 008701603
PLUG
TAPPO
from £12.67
from £12.67
# 009
MPN: 0014006295
PANKL COMPLETE CONNECTING ROD (ALTERNATIVE)
BIELLA COMPLETA PANKL (IN ALTERNATIVA)
# 010
MPN: 07M105701
HALF-BEARING
BRONZINA
from £54.90
from £54.90
This part replaces part number 001419907
# 011
MPN: 0014000236
LINK
BIELLA COMPLETA
from £535.22
from £535.22
# 012
MPN: WHT003062
SEAL
(Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) ANELLO TENUTA
from £3.98
from £3.98
This part replaces part number 008602802
# 013
MPN: 008860506
Key
CHIAVETTA
# 014
MPN: 420132002
crankshaft
MACHINED CRANKSHAFT
from £8,340.84
from £8,340.84
# 015
MPN: 410109264
BEARING
CUSCINETTO
from £17.08
from £17.08
This part replaces part number 008501501 - and 2 more. Click to view details
# 016
MPN: 07M109381
RETAINER RING
ANELLO RITEGNO
from £1.16
from £1.16
This part replaces part number 008573501 - and 1 more. Click to view details
# 017
MPN: 07M105531A
THRUST WASHER (PRICE EACH)
from £24.43
from £24.43
# 018
MPN: 07M105532
THRUST WASHER (PRICE EACH)
use:2x 07M105531A & 2x 07M105532
from £196.28
from £196.28
# 019
MPN: 07M105707
HALF-BEARING
SEMICUSCINETTO
from £3,575.29
from £3,575.29
# 020
MPN: 07M105707A
HALF-BEARING
SEMICUSCINETTO
from £64.51
from £64.51
# 021
MPN: 07M105707B
HALF-BEARING
SEMICUSCINETTO
from £153.04
from £153.04
# 022
MPN: 07M105707C
HALF-BEARING
SEMICUSCINETTO
from £62.77
from £62.77
