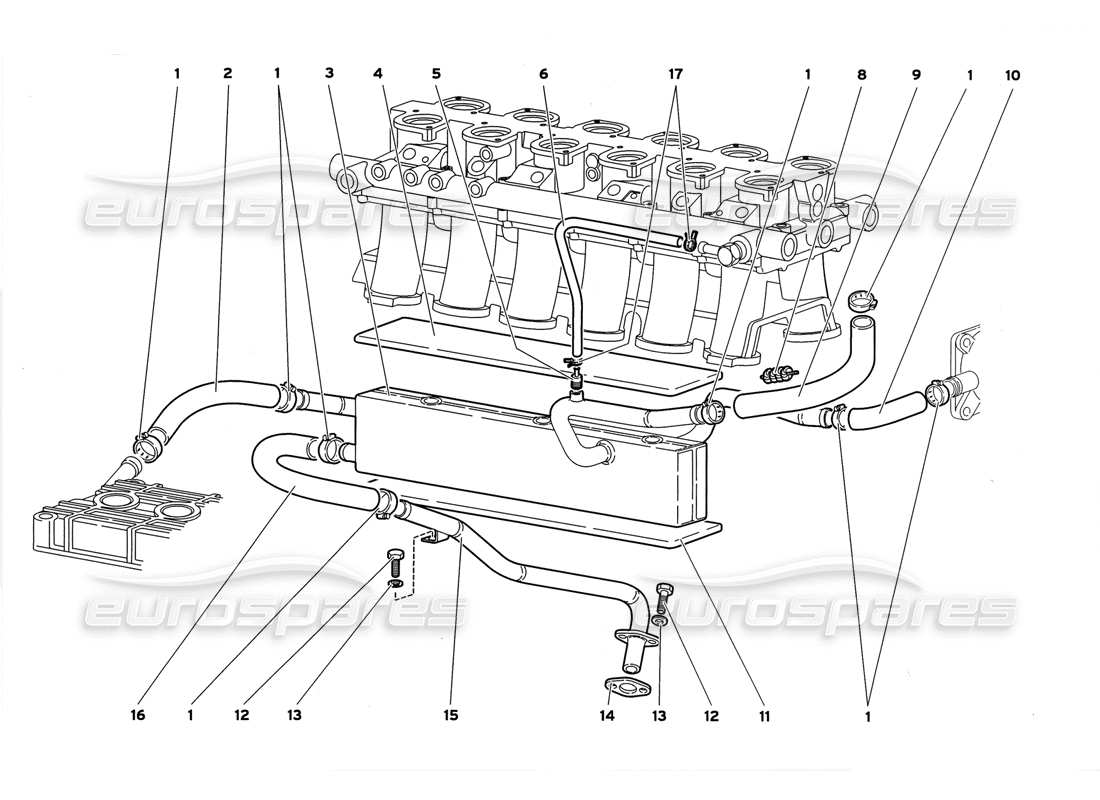

15.04.00 - Engine Oil Breathing System

Lamborghini Diablo GT (1999) Engine Oil Breathing System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 008832003
STRAP
FASCETTA
from £27.78
from £27.78
# 002
MPN: 001533391
PIPE
Tubo
from £56.90
from £56.90
# 003
MPN: 001533385
RESERVOIR
SERBATOIO
from £326.84
from £326.84
# 004
MPN: 001533448
INSULATOR
ISOLANTE
from £22.76
from £22.76
# 005
MPN: 001328721
CONNECTION
RACCORDO
from £12.66
from £12.66
# 006
MPN: 0013004793
PIPE
Tubo
from £14.22
from £14.22
# 007
MPN: 001333445
PIPE
Tubo
from £8.91
from £8.91
# 008
MPN: 001532768
FLAME TRAP
SPEGNIFIAMMA
from £15.43
from £15.43
# 009
MPN: 001533775
PIPE
Tubo
from £68.66
from £68.66
# 010
MPN: 0015001026
PIPE
Tubo
from £249.02
from £249.02
# 011
MPN: 001533447
INSULATOR
ISOLANTE
from £49.50
from £49.50
# 012
MPN: 008100601
SCREW
VITE
Supersession
Supersession
# 013
MPN: 008410602
WASHER
RONDELLA
from £27.90
from £27.90
# 014
MPN: 001831058
GASKET
Guarnizione
from £2.95
from £2.95
# 015
MPN: 001532643
PIPE
Tubo
from £46.43
from £46.43
# 016
MPN: 001532654
PIPE
Tubo
from £45.31
from £45.31
# 017
MPN: 008830128
STRAP
FASCETTA
Supersession
Supersession
