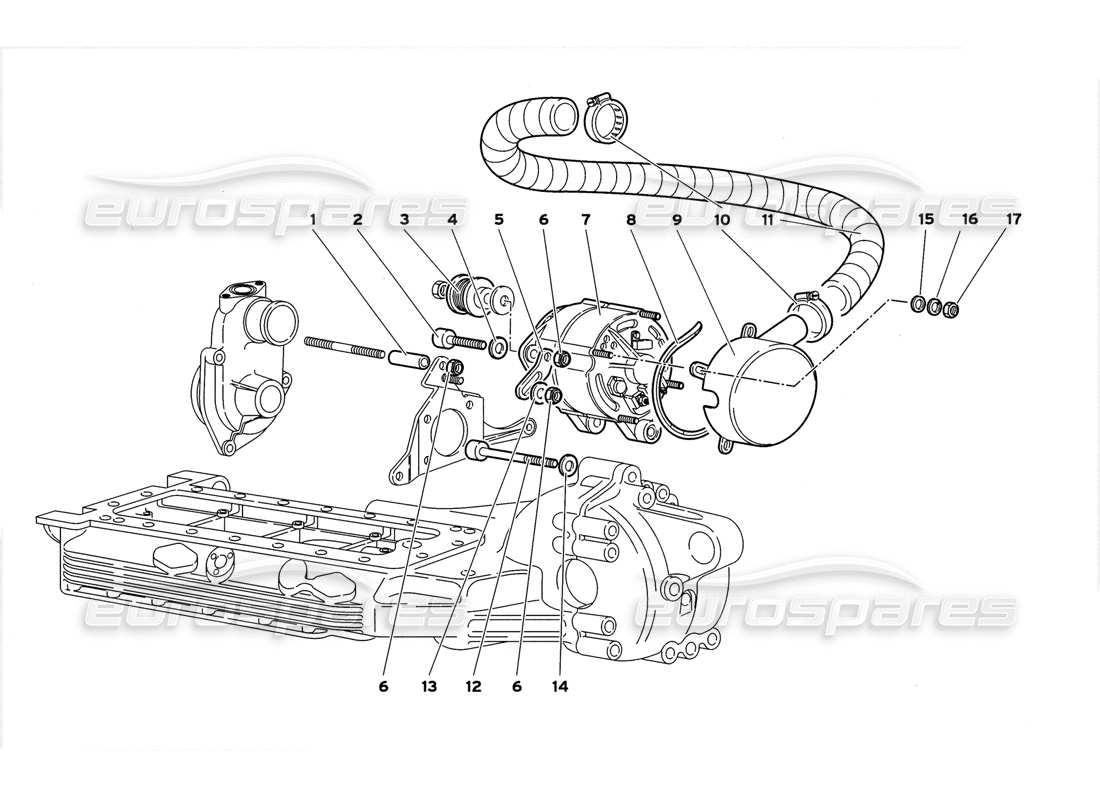

16.02.00 - ALTERNATOR
Lamborghini Diablo GT (1999) Alternator Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 004031496
SPACER
DISTANZIALE
from £12.66
from £12.66
# 002
MPN: 008701017
SCREW
VITE
from £0.66
from £0.66
# 003
MPN: 001636515
PULLEY
PULEGGIA
from £698.95
from £698.95
# 004
MPN: 008401006
WASHER
RONDELLA
from £0.54
from £0.54
# 005
MPN: 0016002730
BRACKET
STAFFA
from £18.07
from £18.07
# 006
MPN: 008201008
NUT
DADO
from £0.55
from £0.55
# 007
MPN: 001625271
ALTERNATOR
ALTERNATORE
from £2,114.05
from £2,114.05
# 008
MPN: 001625920
GASKET
Guarnizione
from £78.68
from £78.68
# 009
MPN: 001635962
CONVEYOR
CONVOGLIATORE
from £108.62
from £108.62
# 010
MPN: 008833802
STRAP
FASCETTA
Supersession
Supersession
# 011
MPN: 07M903667
PIPE
Tubo
from £267.18
from £267.18
# 012
MPN: 008701022
SCREW
VITE
from £1.08
from £1.08
# 013
MPN: 008401006
WASHER
RONDELLA
from £0.54
from £0.54
# 014
MPN: WHT000768
WASHER
from £1.31
from £1.31
This part replaces part number 008410806 - and 1 more. Click to view details
# 015
MPN: WHT003040
WASHER
RONDELLA
from £4.55
from £4.55
# 016
MPN: 008410502
WASHER
RONDELLA
Supersession
Supersession
# 017
MPN: 008200501
NUT
DADO
Supersession
Supersession
