lamborghini diablo gt (1999) radiators and electro-fans parts diagram

17.03.00 - Radiators and Electro-Fans

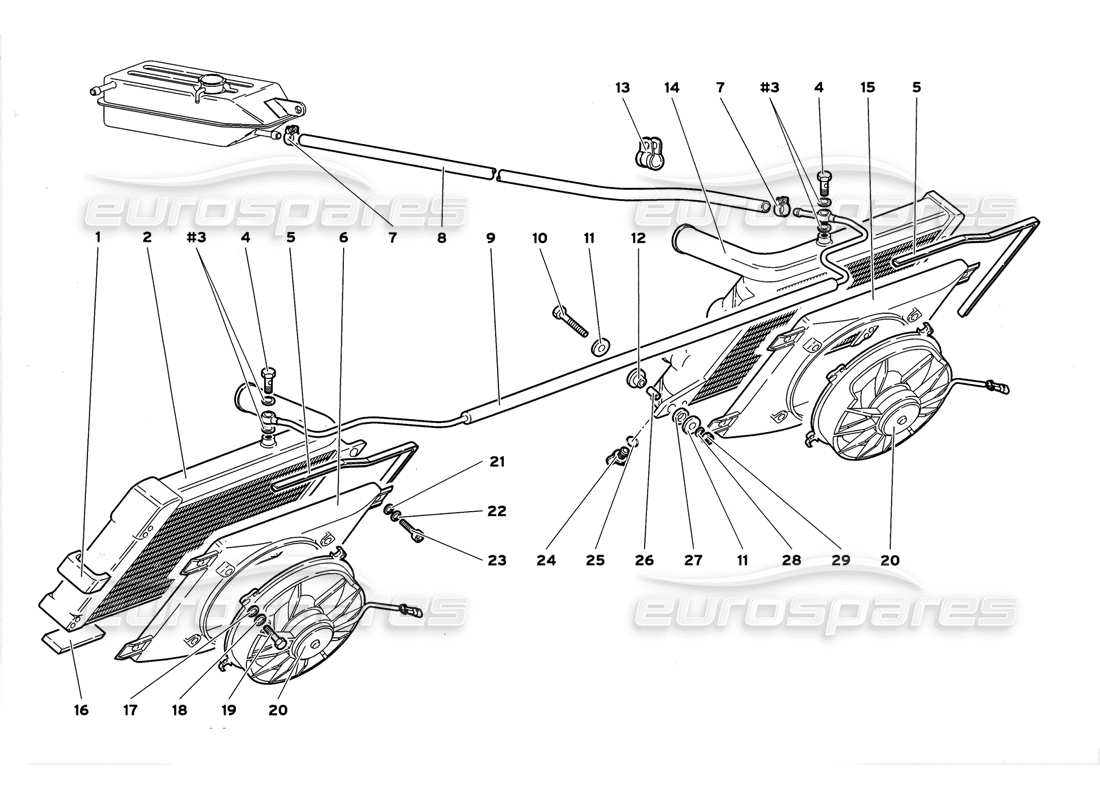

Lamborghini Diablo GT (1999) Radiators and Electro-Fans Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 001733004
          SHIELD
          PROTEZIONE
          from £13.61
          from £13.61
          # 002
          MPN: 001735035
          LH RADIATOR
          from £1,319.66
          from £1,319.66
          # 003
          MPN: 008400818
          WASHER
          (Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) RONDELLA
          Supersession
          Supersession
          # 004
          MPN: WHT000524
          VENT SCREW
          from £14.96
          from £14.96
          This part replaces part number 001733423
          # 005
          MPN: 410121539
          GASKET
          Guarnizione
          from £35.11
          from £35.11
          # 006
          MPN: 410121333
          LEFT CONVEYOR
          CONVOGLIATORE SX
          Supersession
          Supersession
          # 007
          MPN: 008830817
          STRAP
          FASCETTA
          Supersession
          Supersession
          # 008
          MPN: 001735264
          PIPE
          Tubo
          from £10.49
          from £10.49
          # 009
          MPN: 001738038
          VENT PIPE
          TUBO Dl SFIATO
          Supersession
          Supersession
          # 010
          MPN: 008100824
          SCREW
          VITE
          from £0.89
          from £0.89
          # 011
          MPN: WHT001942
          WASHER
          RONDELLA
          from £2.06
          from £2.06
          # 012
          MPN: 001733266
          RUBBER BUSHING
          BOCCOLA COMMA
          from £4.20
          from £4.20
          # 013
          MPN: 008831515
          STRAP
          FASCETTA
          from £5.63
          from £5.63
          # 014
          MPN: 001735034
          RH RADIATOR
          from £1,319.66
          from £1,319.66
          # 015
          MPN: 410121334A
          RIGHT CONVEYOR
          CONVOGLIATORE DX
          from £535.00
          from £535.00
          # 016
          MPN: 001731451
          SHIELD
          PROTEZIONE
          from £9.25
          from £9.25
          # 017
          MPN: WHT003040
          WASHER
          RONDELLA
          from £4.55
          from £4.55
          # 018
          MPN: 008410502
          WASHER
          RONDELLA
          Supersession
          Supersession
          # 019
          MPN: 008100502
          SCREW
          VITE
          from £0.51
          from £0.51

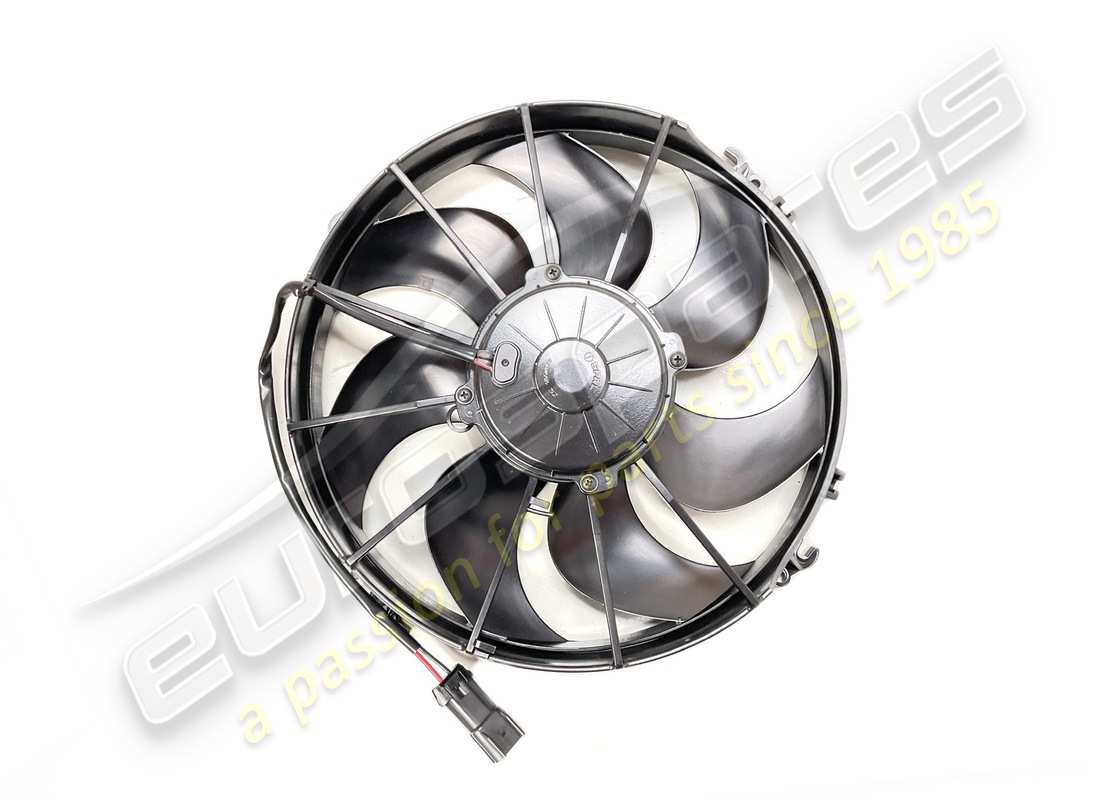

          # 020
          MPN: 0017017063
          ELECTROFAN
          ELETTROVENTILATORE
          from £225.53
          from £225.53
          This part replaces part number 001734039
          # 021
          MPN: WHT002961
          WASHER
          RONDELLA
          from £0.51
          from £0.51
          This part replaces part number 008400607
          # 022
          MPN: 008410612
          WASHER
          RONDELLA
          Supersession
          Supersession
          # 023
          MPN: 008700644
          SCREW
          VITE
          Supersession
          Supersession
          # 024
          MPN: 410121299
          PLUG
          TAPPO
          from £140.51
          from £140.51
          # 025
          MPN: 008600905
          SEAL
          ANELLO TENUTA
          from £5.94
          from £5.94
          This part replaces part number 008600903
          # 026
          MPN: 001733267
          BUSHING
          BOCCOLA
          from £7.26
          from £7.26
          # 027
          MPN: WHT001189
          RUBBER RING
          from £2.38
          from £2.38
          This part replaces part number 001707163
          # 028
          MPN: N90179103
          WASHER
          RONDELLA
          from £0.98
          from £0.98
          This part replaces part number 008400801
          # 029
          MPN: 008200804
          NUT
          DADO
          from £0.71
          from £0.71
