24.01.00 - Gearbox Control Tower

Lamborghini Diablo GT (1999) Gearbox Control Tower Parts Diagram

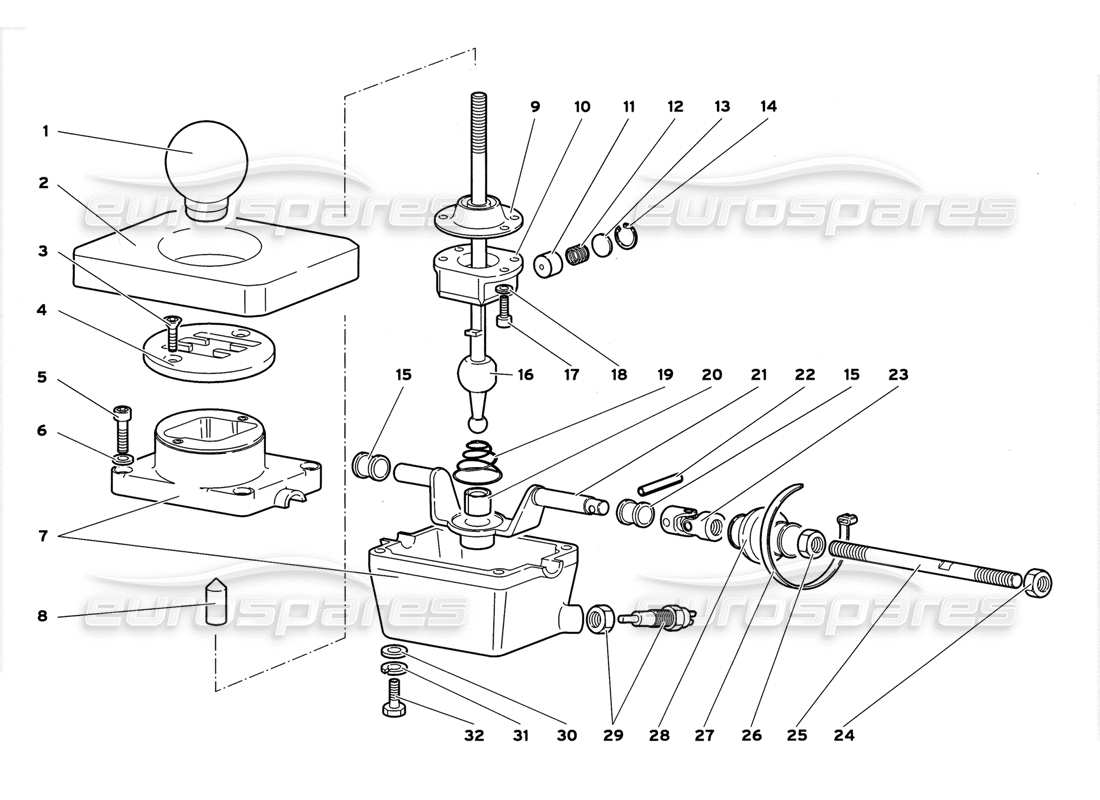

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 0024004603
KNOB
POMELLO
from £794.29
from £794.29
# 002
MPN: 002431785
FLEX PAD
THICKNESS IN COMMA
Supersession
Supersession
# 003
MPN: 008740610
SCREW
VITE
from £0.53
from £0.53
# 004
MPN: 0024005218
PLATE
PIASTRA Dl SELEZIONE
from £617.36
from £617.36
# 005
MPN: 008700804
SCREW
VITE
from £1.03
from £1.03
# 006
MPN: 008410810
WASHER
RONDELLA
Supersession
Supersession
# 007
MPN: 240132003
CASE
SCATOLA LAVORATA
from £1,028.10
from £1,028.10
# 008
MPN: 002438011
ADAPTER KNOB
ADATTATORE POMELLO
from £25.00
from £25.00
# 009
MPN: 002433043
BOOT
CUFFIA
from £100.52
from £100.52
# 010
MPN: 002434091
BALL SOCKFT
SEDE SFERICA
from £151.73
from £151.73
# 011
MPN: 002427202
CYLINDER
CILINDRO
from £53.57
from £53.57
# 012
MPN: 002432167
SPRING
MOLLA
from £7.63
from £7.63
# 013
MPN: 002427204
PLATE
Piastrina
from £1.02
from £1.02
# 014
MPN: 008572201
RETAINER RING
ANELLO RITEGNO
from £0.54
from £0.54
# 015
MPN: 002433020
BUSHING
BOCCOLA
from £20.24
from £20.24
# 016
MPN: 002437666
LEVER
LEVA
from £781.85
from £781.85
# 017
MPN: 008700644
SCREW
VITE
Supersession
Supersession
# 018
MPN: 008410602
WASHER
RONDELLA
from £27.52
from £27.52
# 019
MPN: 002429160
SPRING
MOLLA
from £96.84
from £96.84
# 020
MPN: 002427207
BUSHING
BOCCOLA
from £202.32
from £202.32
# 021
MPN: 002429161
SHAFT
ALBERO
from £191.95
from £191.95
# 022
MPN: 008900305
PIN
SPINA
from £0.54
from £0.54
# 023
MPN: 410711615
JOINT
RIGHT JOINT
from £655.41
from £655.41
# 025
MPN: 0024005025
TIE ROD
TIRANTE
from £46.43
from £46.43
# 027
MPN: 008830305
STRAP
FASCETTA
Supersession
Supersession
# 028
MPN: 002434614
BOOT
CUFFIA
# 029
MPN: 002408637
SWITCH
INTERRUTTORE RETROMARCIA
from £73.80
from £73.80
# 030
MPN: 008400801
WASHER
RONDELLA
Supersession
Supersession
# 031
MPN: 008410806
WASHER
RONDELLA
Supersession
Supersession
# 032
MPN: 008100862
SCREW
VITE
from £0.53
from £0.53
