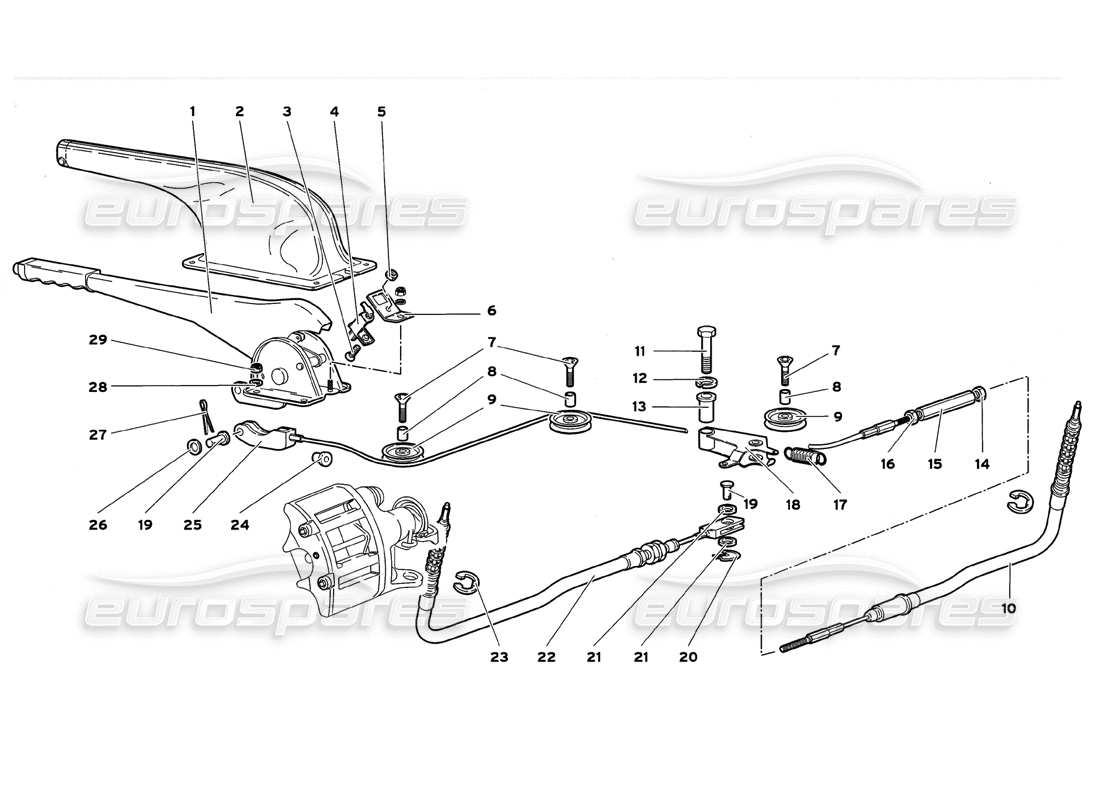

33.01.00 - Handbrake
Lamborghini Diablo GT (1999) Handbrake Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 0033000780
Handbrake Lever
Leva freno a mano
Supersession
Supersession
# 002
MPN: 0078001360
COVERING
RIVESTIMENTO
from £101.99
from £101.99
# 003
MPN: WHT002756
SCREW
# 004
MPN: 003336007
button
PULSANTE
from £18.12
from £18.12
# 005
MPN: WHT002959
NUT
DADO
from £0.57
from £0.57
# 006
MPN: 003335993
SUPPORT
SUPPORTO
# 007
MPN: 008700851
SCREW
VITE
from £0.53
from £0.53
# 008
MPN: 003330827
BUSHING
BOCCOLA
# 009
MPN: 003332512
PULLEY
CARRUCOLA
Supersession
Supersession
# 010
MPN: 0033001133
RIGHT CABLE
from £124.51
from £124.51
# 011
MPN: 008101407
SCREW
VITE
from £3.32
from £3.32
# 012
MPN: 008411404
WASHER
RONDELLA
from £0.54
from £0.54
# 013
MPN: 003330828
SPACER
DISTANZIALE
# 014
MPN: 008200607
NUT
DADO
from £8.05
from £8.05
# 015
MPN: 413609206
ADJUSTING SLEEVE
(Valid for RH D. version – April 1994) REGISTRO
from £39.87
from £39.87
# 016
MPN: 008200603
NUT
DADO
from £0.54
from £0.54
# 017
MPN: 003330829
SPRING
MOLLA
# 018
MPN: 003333935
SUPPORT
SUPPORTO
from £126.00
from £126.00
# 019
MPN: 410609789
PIN
PERNO
from £18.55
from £18.55
This part replaces part number 003301307 which we have in stock
# 020
MPN: 410713299
CLIP
COPPIGLIA
from £0.54
from £0.54
# 021
MPN: 008400806
WASHER
RONDELLA
Supersession
Supersession
# 022
MPN: 0033001131
LEFT CABLE
from £161.69
from £161.69
# 023
MPN: WHT003586
RETAINER RING
ANELLO RITEGNO
from £0.53
from £0.53
# 024
MPN: 003330880
RUBBER BUSHING
BOCCOLA COMMA
# 025
MPN: 0033001129
TIE ROD
TIRANTE
from £218.76
from £218.76
# 026
MPN: 008400806
WASHER
RONDELLA
Supersession
Supersession
# 027
MPN: 008820201
SPLIT PIN
COPIGLIA
from £4.11
from £4.11
# 028
MPN: 008400606
WASHER
RONDELLA
Supersession
Supersession
# 029
MPN: 008200606
NUT
DADO
Supersession
Supersession
