42.01.00 - Pedals

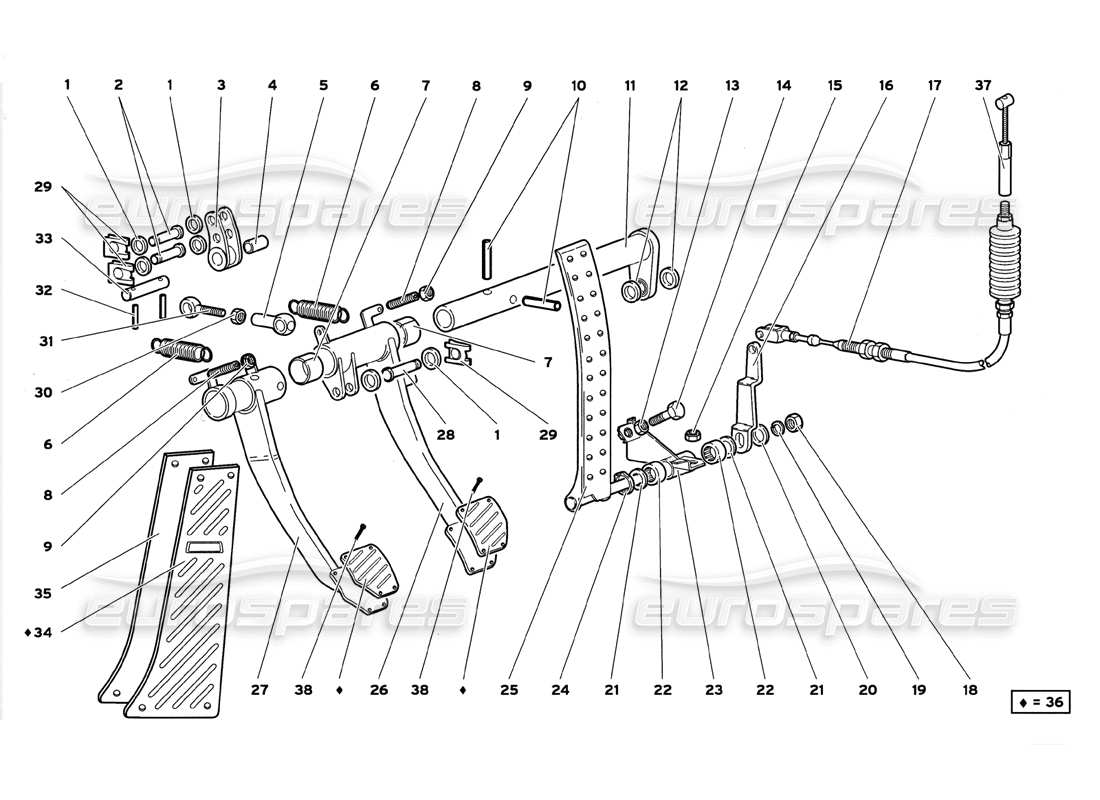

Lamborghini Diablo GT (1999) Pedals Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008401007
WASHER
RONDELLA
from £0.52
from £0.52
# 002
MPN: 004232621
PIN
PERNO
from £23.68
from £23.68
# 003
MPN: 004225060
LEVER
LEVA
from £47.35
from £47.35
# 004
MPN: 008801209
BUSHING
BOCCOLA
from £5.97
from £5.97
# 005
MPN: 004225061
COUPLING
TESTA A SNODO
from £42.95
from £42.95
# 006
MPN: 0042004879
SPRING
MOLLA
# 007
MPN: 008802501
BUSHING
BOCCOLA
Supersession
Supersession
# 008
MPN: 004210834
ADJUSTING SLEEVE
TESTA REGISTRO
from £2.83
from £2.83
# 009
MPN: N01100637
NUT
DADO
from £0.53
from £0.53
This part replaces part number 008200604
# 010
MPN: 008900803
PIN
SPINA
from £0.68
from £0.68
# 011
MPN: 004225064
SHAFT
ALBERO
# 012
MPN: 008400819
WASHER
RONDELLA
Supersession
Supersession
# 013
MPN: 008200801
NUT
DADO
Supersession
Supersession
# 014
MPN: 008100828
SCREW
VITE
from £0.54
from £0.54
# 015
MPN: 008200804
NUT
DADO
from £0.73
from £0.73
# 016
MPN: 004238042
LEVER
LEVA
from £21.44
from £21.44
# 017
MPN: 004230089
TIE ROD
ACCELERATOR ROD
from £722.16
from £722.16
# 018
MPN: 008200809
NUT
DADO
Supersession
Supersession
# 019
MPN: 008410806
WASHER
RONDELLA
Supersession
Supersession
# 020
MPN: 008400801
WASHER
RONDELLA
Supersession
Supersession
# 021
MPN: 008401220
WASHER
RONDELLA
from £3.74
from £3.74
# 022
MPN: 008521205
BEARING
CUSCINETTO
from £6.93
from £6.93
# 023
MPN: 004231811
SUPPORT
SUPPORTO
from £86.87
from £86.87
# 024
MPN: 008581101
RETAINER RING
ANELLO RITEGNO
from £3.65
from £3.65
# 025
MPN: 004235545
Accelerator Pedal
PEDALE ACCELERATORE
from £300.55
from £300.55
# 026
MPN: 0042004369
BRAKE PEDAL
PEDALE FRENO
from £245.42
from £245.42
# 027
MPN: 0042004370
CLUTCH PEDAL
PEDALE FRIZIONE
from £245.42
from £245.42
# 028
MPN: 004232622
PIN
PERNO
from £16.72
from £16.72
# 029
MPN: 008581004
CLIP
MOLLETTA
from £5.85
from £5.85
# 030
MPN: N10155210
NUT
DADO
from £1.36
from £1.36
This part replaces part number 008201001
# 031
MPN: 004225062
TIE ROD
TIRANTE
from £41.21
from £41.21
# 032
MPN: 008900305
PIN
SPINA
from £0.53
from £0.53
# 033
MPN: 004225074
PIN
PERNO
# 034
MPN: 0042004375
FOOTREST
PEDALINA POGGIAPIEDE
# 035
MPN: 0042004372
FOOTREST PEDAL
PEDALE POGGIAPIEDE
from £149.66
from £149.66
# 036
MPN: 0042004373
PEDAL KIT
KIT PEDALINE
from £97.43
from £97.43
# 037
MPN: 0042005157
EXTENSION
EXTENSION CORD
from £20.93
from £20.93
# 038
MPN: 008700310
SCREW
VITE
