43.03.00 - Steering

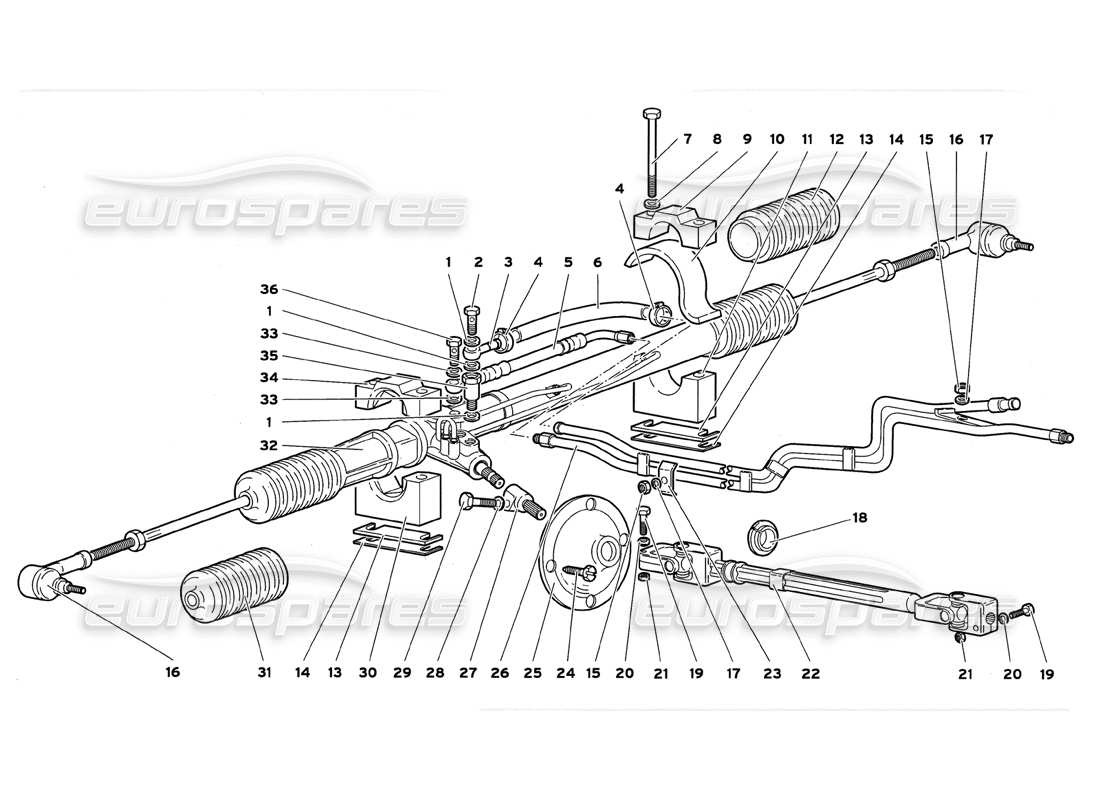

Lamborghini Diablo GT (1999) Steering Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008401621
WASHER
RONDELLA
Supersession
Supersession
# 002
MPN: 003101941
SCREW
Vite forata
from £2.64
from £2.64
# 003
MPN: 004033471
CONNECTION
RACCORDO
# 004
MPN: 008831320
STRAP
FASCETTA
from £2.18
from £2.18
# 005
MPN: 004033464
PIPE
Tubo
from £297.44
from £297.44
# 006
MPN: 004033459
PIPE
Tubo
from £16.88
from £16.88
# 007
MPN: 008101076
SCREW
VITE
from £1.93
from £1.93
# 008
MPN: 008401007
WASHER
RONDELLA
from £0.53
from £0.53
# 009
MPN: 410422761A
RETAINER
CAVALLOTTO
from £205.91
from £205.91
# 010
MPN: 004331587
FLEX PAD
THICKNESS IN COMMA
Supersession
Supersession
# 011
MPN: 004333655
SUPPORT
SUPPORTO
from £215.73
from £215.73
# 012
MPN: 410419831
BOOT
CUFFIA
from £777.32
from £777.32
This part replaces part number 004335023
# 013
MPN: 004333658
SHIM
SPESSORE Dl REGISTRO 1 MM
from £5.94
from £5.94
# 014
MPN: 004333657
SHIM
SPESSORE Dl REGISTRO 0,5 MM
from £9.21
from £9.21
# 015
MPN: N0211963
NUT
DADO
from £0.52
from £0.52
# 016
MPN: 400419811A
COUPLING HEAD
TESTA GIUNTO SFERICO
from £832.66
from £832.66
This part replaces part number 004334555
# 017
MPN: WHT001187
WASHER
RONDELLA
from £0.54
from £0.54
This part replaces part number 008400502
# 018
MPN: 0043002396
BUSHING
BOCCOLA
from £62.18
from £62.18
# 019
MPN: 008700843
SCREW
VITE
from £2.55
from £2.55
# 020
MPN: 008410823
WASHER
RONDELLA
from £0.53
from £0.53
# 021
MPN: 008200809
NUT
DADO
Supersession
Supersession
# 022
MPN: 0043002198
JOINTED SHAFT
ALBERO SNODATO
Supersession
Supersession
# 023
MPN: 004033480
PLATE
Piastrina
# 024
MPN: 008700673
SCREW
VITE
from £6.62
from £6.62
# 025
MPN: 410422326
GASKET
Guarnizione
from £140.51
from £140.51
# 026
MPN: 004038062
PIPE
Tubo
from £257.03
from £257.03
# 027
MPN: 004332458
CONNECTION
CONNESSIONE
from £220.55
from £220.55
# 028
MPN: 008410820
WASHER
RONDELLA
Supersession
Supersession
# 029
MPN: 008100831
SCREW
VITE
from £0.54
from £0.54
# 030
MPN: 004333656
SUPPORT
SUPPORTO
Supersession
Supersession
# 031
MPN: 410419831
BOOT
CUFFIA
from £777.32
from £777.32
This part replaces part number 004335023
# 032
MPN: 0043004143
POWER STEERING
CREMAGLIERA SERVOASSISTITA
from £1,268.54
from £1,268.54
# 033
MPN: 008401408
WASHER
RONDELLA
from £1.29
from £1.29
# 034
MPN: 410422874
RETAINER
CAVALLOTTO
from £890.59
from £890.59
# 035
MPN: 004033458
CONNECTION
RACCORDO
# 036
MPN: 005124347
CONNECTION
RACCORDO
Supersession
Supersession
-part-diagram-43.04.00.webp "LAMBORGHINI DIABLO GT (1999) STEERING PARTS DIAGRAM")

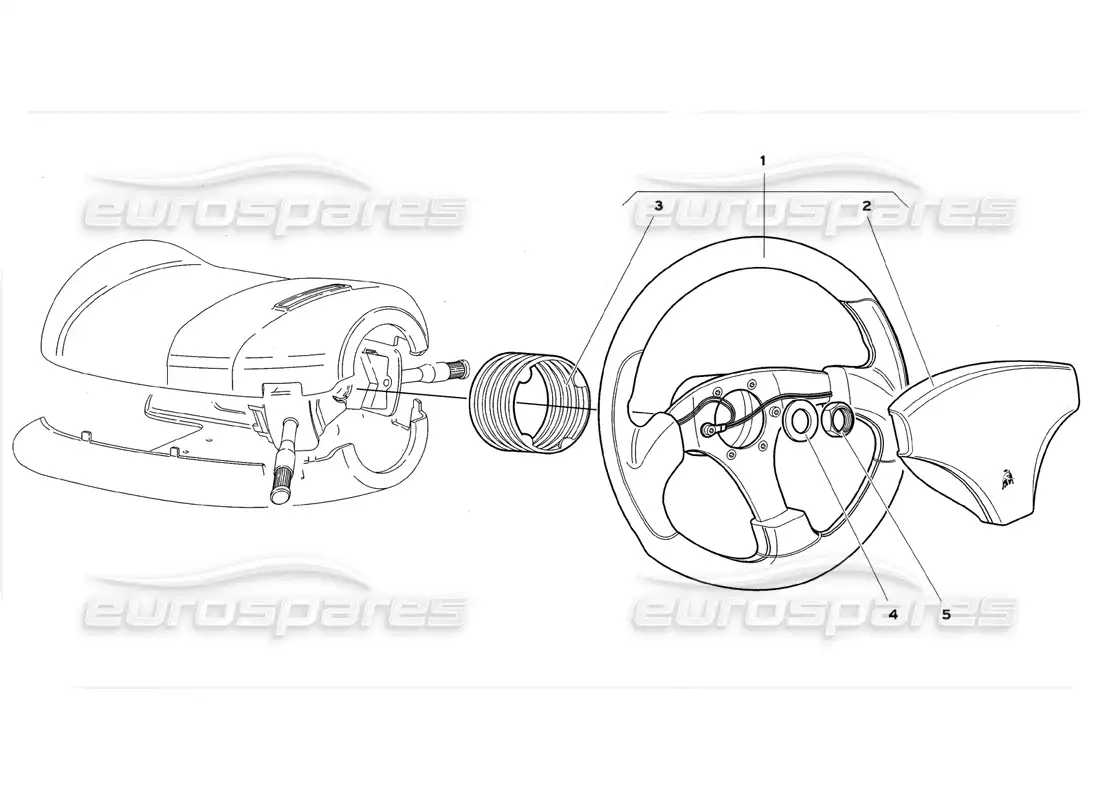

-part-diagram-43.05.00.webp "LAMBORGHINI DIABLO GT (1999) STEERING SYSTEM WITHOUT AIR BAG PARTS DIAGRAM")

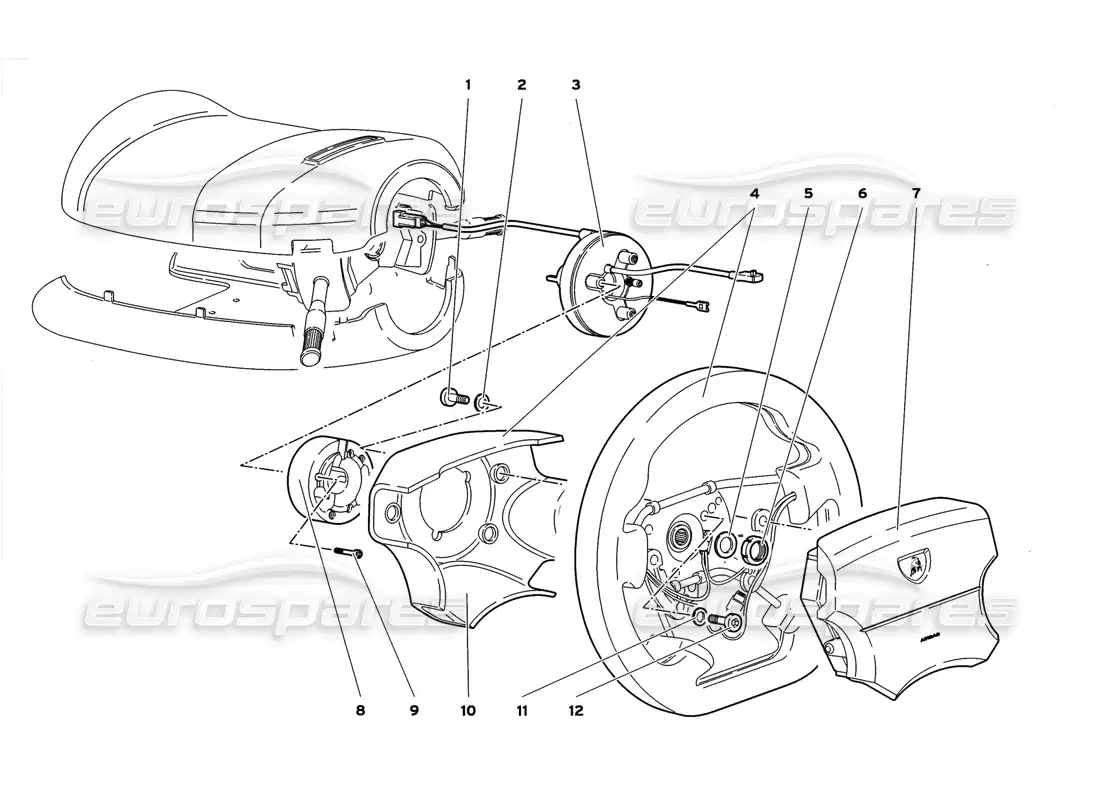

-part-diagram-43.06.00.webp "LAMBORGHINI DIABLO GT (1999) STEERING SYSTEM WITH AIR BAG PARTS DIAGRAM")
-part-diagram-44.01.00.webp "LAMBORGHINI DIABLO GT (1999) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-44.02.00.webp "LAMBORGHINI DIABLO GT (1999) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-44.03.00.webp "LAMBORGHINI DIABLO GT (1999) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-44.04.00.webp "LAMBORGHINI DIABLO GT (1999) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-45.01.00.webp "LAMBORGHINI DIABLO GT (1999) CLIMATE CONTROL PARTS DIAGRAM")
-part-diagram-45.02.00.webp "LAMBORGHINI DIABLO GT (1999) CLIMATE CONTROL PARTS DIAGRAM")
-part-diagram-45.03.00.webp "LAMBORGHINI DIABLO GT (1999) CLIMATE CONTROL PARTS DIAGRAM")
-part-diagram-45.04.00.webp "LAMBORGHINI DIABLO GT (1999) CLIMATE CONTROL PARTS DIAGRAM")
-part-diagram-51.01.00.webp "LAMBORGHINI DIABLO GT (1999) FRONT WHEEL AND HUB CARRIER PARTS DIAGRAM")
-part-diagram-51.02.00.webp "LAMBORGHINI DIABLO GT (1999) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-52.01.00.webp "LAMBORGHINI DIABLO GT (1999) REAR WHEEL AND HUB CARRIER PARTS DIAGRAM")
-part-diagram-52.02.00.webp "LAMBORGHINI DIABLO GT (1999) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-59.01.00.webp "LAMBORGHINI DIABLO GT (1999) ACCESSORIES PARTS DIAGRAM")
-part-diagram-60.01.00.webp "LAMBORGHINI DIABLO GT (1999) DASHBOARD INSTRUMENTS PARTS DIAGRAM")
-part-diagram-60.02.00.webp "LAMBORGHINI DIABLO GT (1999) TUNNEL PANEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-61.01.00.webp "LAMBORGHINI DIABLO GT (1999) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-61.02.00.webp "LAMBORGHINI DIABLO GT (1999) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-61.03.00.webp "LAMBORGHINI DIABLO GT (1999) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-61.04.00.webp "LAMBORGHINI DIABLO GT (1999) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-61.05.00.webp "LAMBORGHINI DIABLO GT (1999) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-61.06.00.webp "LAMBORGHINI DIABLO GT (1999) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-62.01.00.webp "LAMBORGHINI DIABLO GT (1999) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-62.02.00.webp "LAMBORGHINI DIABLO GT (1999) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-62.03.00.webp "LAMBORGHINI DIABLO GT (1999) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-62.04.00.webp "LAMBORGHINI DIABLO GT (1999) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-62.05.00.webp "LAMBORGHINI DIABLO GT (1999) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-63.01.00.webp "LAMBORGHINI DIABLO GT (1999) LIGHTS PARTS DIAGRAM")
-part-diagram-66.01.00.webp "LAMBORGHINI DIABLO GT (1999) REAR BODY ELEMENTS PARTS DIAGRAM")
-part-diagram-66.02.00.webp "LAMBORGHINI DIABLO GT (1999) FRONT BODY ELEMENTS FRONT BODY ELEMENTS PARTS DIAGRAM")
-part-diagram-66.03.00.webp "LAMBORGHINI DIABLO GT (1999) BODY ELEMENTS - LEFT FLANK PARTS DIAGRAM")
-part-diagram-66.04.00.webp "LAMBORGHINI DIABLO GT (1999) FRAME FLOOR PANELS PARTS DIAGRAM")
-part-diagram-68.01.00.webp "LAMBORGHINI DIABLO GT (1999) FRONT FLOOR PANELS PARTS DIAGRAM")
-part-diagram-68.02.00.webp "LAMBORGHINI DIABLO GT (1999) CONVEYORS PARTS DIAGRAM")
-part-diagram-68.03.00.webp "LAMBORGHINI DIABLO GT (1999) ENGINE COMPARTMENT PARTS DIAGRAM")
-part-diagram-68.04.00.webp "LAMBORGHINI DIABLO GT (1999) INSULATING PANELS PARTS DIAGRAM")
-part-diagram-68.05.00.webp "LAMBORGHINI DIABLO GT (1999) PASSENGER COMPARTMENT PARTS DIAGRAM")
-part-diagram-70.01.00.webp "LAMBORGHINI DIABLO GT (1999) GLASS PARTS DIAGRAM")
-part-diagram-71.01.00.webp "LAMBORGHINI DIABLO GT (1999) WINDSCREEN WIPER PARTS DIAGRAM")
-part-diagram-72.01.00.webp "LAMBORGHINI DIABLO GT (1999) DOOR MECHANISM PARTS DIAGRAM")
-part-diagram-72.02.00.webp "LAMBORGHINI DIABLO GT (1999) DOOR WINDOW MECHANISM PARTS DIAGRAM")
-part-diagram-72.03.00.webp "LAMBORGHINI DIABLO GT (1999) DOOR INTERNAL PANELS PARTS DIAGRAM")
-part-diagram-73.01.00.webp "LAMBORGHINI DIABLO GT (1999) REAR SPOILER PARTS DIAGRAM")
-part-diagram-75.01.00.webp "LAMBORGHINI DIABLO GT (1999) FOUR-POINT SEAT BELTS PARTS DIAGRAM")
-part-diagram-75.02.00.webp "LAMBORGHINI DIABLO GT (1999) THREE-POINT SEAT BELTS PARTS DIAGRAM")
-part-diagram-78.01.00.webp "LAMBORGHINI DIABLO GT (1999) PASSENGER COMPARTMENT INTERIOR PANELS WITH AIR BAG PARTS DIAGRAM")
-part-diagram-78.02.00.webp "LAMBORGHINI DIABLO GT (1999) PASSENGER COMPARTMENT INTERIOR PANELS WITHOUT AIR BAG PARTS DIAGRAM")
-part-diagram-78.03.00.webp "LAMBORGHINI DIABLO GT (1999) PASSENGER COMPARTMENT TRIM PARTS DIAGRAM")
-part-diagram-78.04.00.webp "LAMBORGHINI DIABLO GT (1999) PASSENGER COMPARTMENT TRIM PARTS DIAGRAM")
-part-diagram-79.01.00.webp "LAMBORGHINI DIABLO GT (1999) FRONT HOOD PARTS DIAGRAM")
-part-diagram-92.01.00.webp "LAMBORGHINI DIABLO GT (1999) ENGINE HOOD PARTS DIAGRAM")
-part-diagram-93.01.00.webp "LAMBORGHINI DIABLO GT (1999) BUMPERS PARTS DIAGRAM")
-part-diagram-97.01.00.webp "LAMBORGHINI DIABLO GT (1999) EXTERNAL REAR VIEW MIRRORS PARTS DIAGRAM")
-part-diagram-11.01.00.webp "LAMBORGHINI DIABLO GT (1999) RIGHT CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-11.02.00.webp "LAMBORGHINI DIABLO GT (1999) LEFT CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-11.03.00.webp "LAMBORGHINI DIABLO GT (1999) ACCESSORIES FOR RIGHT CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-11.04.00.webp "LAMBORGHINI DIABLO GT (1999) ACCESSORIES FOR LEFT CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-11.05.00.webp "LAMBORGHINI DIABLO GT (1999) ENGINE GASKET KIT PARTS DIAGRAM")
-part-diagram-11.06.00.webp "LAMBORGHINI DIABLO GT (1999) COVER GASKET KIT PARTS DIAGRAM")
-part-diagram-12.01.00.webp "LAMBORGHINI DIABLO GT (1999) TIMING SYSTEM PARTS DIAGRAM")
-part-diagram-12.02.00.webp "LAMBORGHINI DIABLO GT (1999) TIMING SYSTEM PARTS DIAGRAM")
-part-diagram-13.01.00.webp "LAMBORGHINI DIABLO GT (1999) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-13.02.00.webp "LAMBORGHINI DIABLO GT (1999) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-13.03.00.webp "LAMBORGHINI DIABLO GT (1999) AIR FILTERS PARTS DIAGRAM")
-part-diagram-13.04.00.webp "LAMBORGHINI DIABLO GT (1999) ACCELERATOR CABLES PARTS DIAGRAM")
-part-diagram-13.05.00.webp "LAMBORGHINI DIABLO GT (1999) SENSOR INSTALLATION PARTS DIAGRAM")
-part-diagram-14.01.00.webp "LAMBORGHINI DIABLO GT (1999) CRANKGEARS PARTS DIAGRAM")
-part-diagram-15.01.00.webp "LAMBORGHINI DIABLO GT (1999) ENGINE OIL PUMP PARTS DIAGRAM")
-part-diagram-15.02.00.webp "LAMBORGHINI DIABLO GT (1999) ENGINE OIL SYSTEM PARTS DIAGRAM")
-part-diagram-15.03.00.webp "LAMBORGHINI DIABLO GT (1999) ENGINE OIL FILTER PARTS DIAGRAM")
-part-diagram-15.04.00.webp "LAMBORGHINI DIABLO GT (1999) ENGINE OIL BREATHING SYSTEM PARTS DIAGRAM")
-part-diagram-16.01.00.webp "LAMBORGHINI DIABLO GT (1999) PHASE SENSORS AND ELECTRICAL COMPONENTS PARTS DIAGRAM")
-part-diagram-16.02.00.webp "LAMBORGHINI DIABLO GT (1999) ALTERNATOR PARTS DIAGRAM")
-part-diagram-16.03.00.webp "LAMBORGHINI DIABLO GT (1999) ELECTRONIC INJECTION UNITS PARTS DIAGRAM")
-part-diagram-17.01.00.webp "LAMBORGHINI DIABLO GT (1999) WATER PUMP PARTS DIAGRAM")
-part-diagram-17.02.00.webp "LAMBORGHINI DIABLO GT (1999) WATER COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-17.03.00.webp "LAMBORGHINI DIABLO GT (1999) RADIATORS AND ELECTRO-FANS PARTS DIAGRAM")
-part-diagram-18.01.00.webp "LAMBORGHINI DIABLO GT (1999) CRANKASE PARTS DIAGRAM")
-part-diagram-18.02.00.webp "LAMBORGHINI DIABLO GT (1999) CRANKASE AND LOWER MOUNTING PARTS DIAGRAM")
-part-diagram-18.03.00.webp "LAMBORGHINI DIABLO GT (1999) OIL SUMP PARTS DIAGRAM")
-part-diagram-18.04.00.webp "LAMBORGHINI DIABLO GT (1999) OIL SUMP DEFLECTORS PARTS DIAGRAM")
-part-diagram-21.01.00.webp "LAMBORGHINI DIABLO GT (1999) CLUTCH PARTS DIAGRAM")
-part-diagram-21.02.00.webp "LAMBORGHINI DIABLO GT (1999) CLUTCH CONTROL LEVERS PARTS DIAGRAM")
-part-diagram-23.01.00.webp "LAMBORGHINI DIABLO GT (1999) REAR DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-24.01.00.webp "LAMBORGHINI DIABLO GT (1999) GEARBOX CONTROL TOWER PARTS DIAGRAM")
-part-diagram-24.02.00.webp "LAMBORGHINI DIABLO GT (1999) GEARBOX SHIFTING RODS PARTS DIAGRAM")
-part-diagram-24.03.00.webp "LAMBORGHINI DIABLO GT (1999) GEARBOX PARTS DIAGRAM")
-part-diagram-24.04.00.webp "LAMBORGHINI DIABLO GT (1999) GEARBOX OIL PUMP PARTS DIAGRAM")
-part-diagram-24.05.00.webp "LAMBORGHINI DIABLO GT (1999) MAIN SHAFT PARTS DIAGRAM")
-part-diagram-24.06.00.webp "LAMBORGHINI DIABLO GT (1999) DRIVEN SHAFT PARTS DIAGRAM")
-part-diagram-24.07.00.webp "LAMBORGHINI DIABLO GT (1999) GEAR TRASMISSION END PARTS DIAGRAM")
-part-diagram-25.01.00.webp "LAMBORGHINI DIABLO GT (1999) DRIVESHAFT PARTS DIAGRAM")
-part-diagram-31.01.00.webp "LAMBORGHINI DIABLO GT (1999) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-3132.01.00.webp "LAMBORGHINI DIABLO GT (1999) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-3132.02.00.webp "LAMBORGHINI DIABLO GT (1999) ELECTROHYDRAULIC ABS ECU PARTS DIAGRAM")
-part-diagram-32.01.00.webp "LAMBORGHINI DIABLO GT (1999) REAR BRAKES PARTS DIAGRAM")
-part-diagram-33.01.00.webp "LAMBORGHINI DIABLO GT (1999) HANDBRAKE PARTS DIAGRAM")

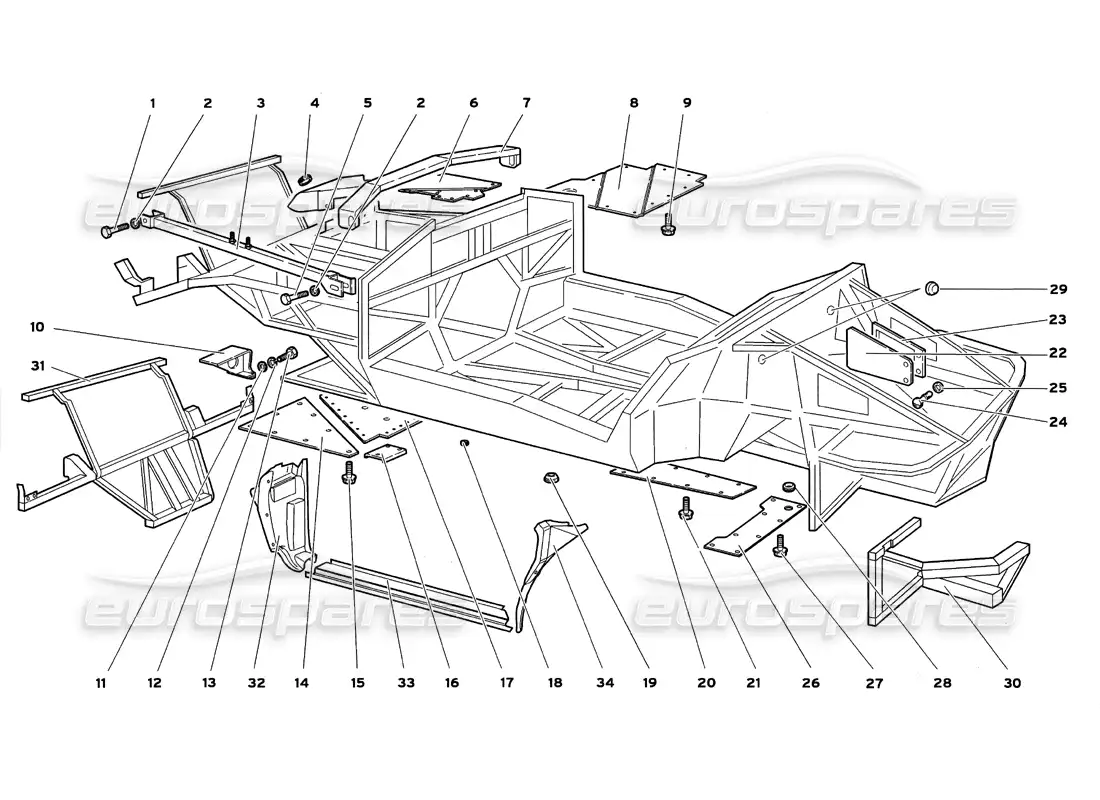

-part-diagram-41.01.00.webp "LAMBORGHINI DIABLO GT (1999) FRAME ELEMENTS PARTS DIAGRAM")

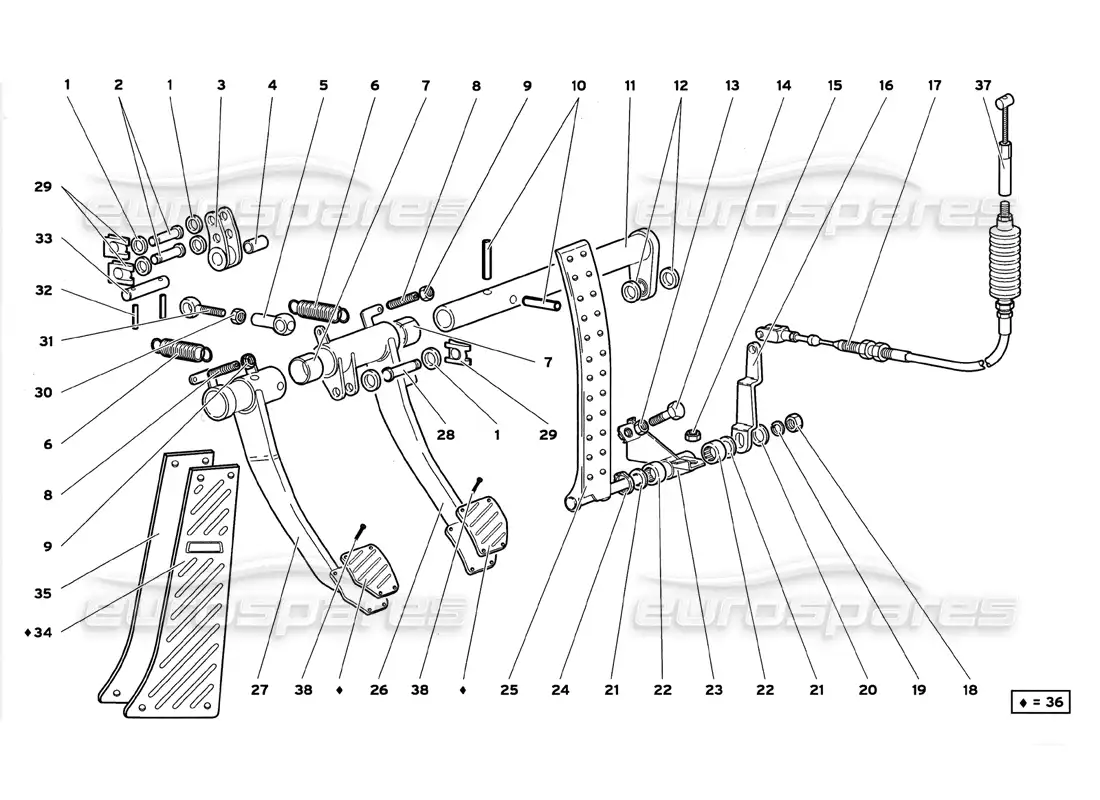

-part-diagram-42.01.00.webp "LAMBORGHINI DIABLO GT (1999) PEDALS PARTS DIAGRAM")

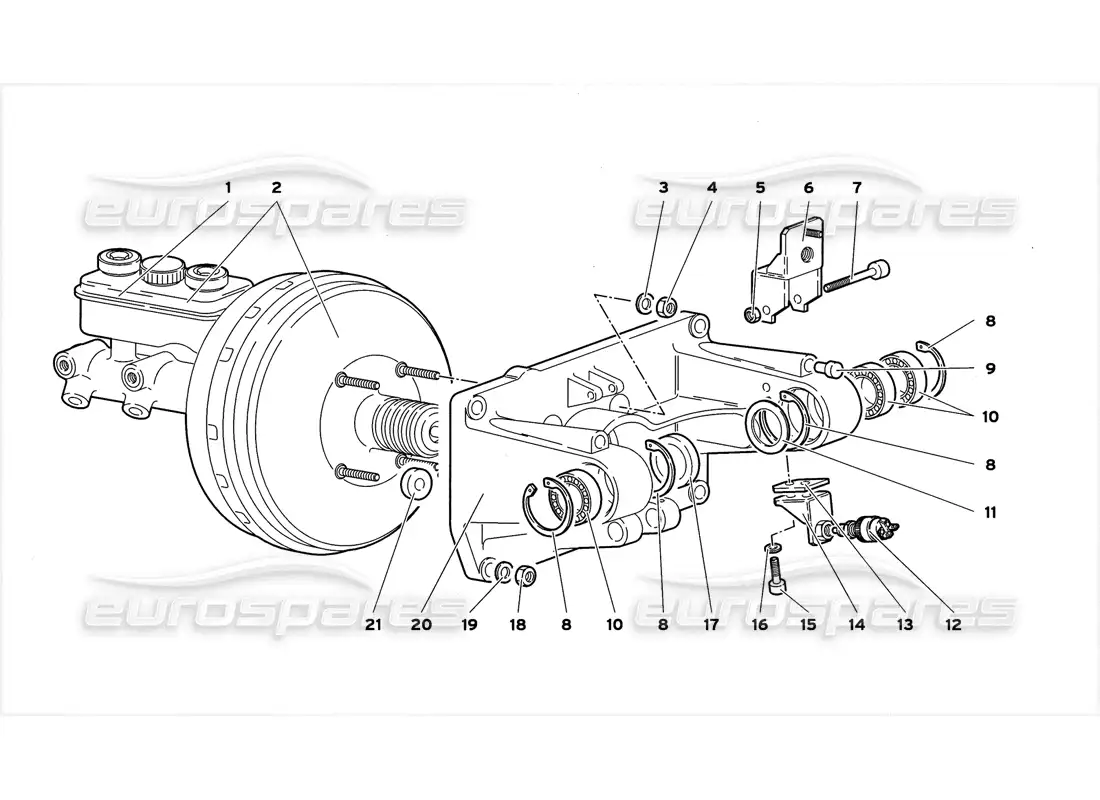

-part-diagram-42.02.00.webp "LAMBORGHINI DIABLO GT (1999) PEDAL MOUNTING PARTS DIAGRAM")

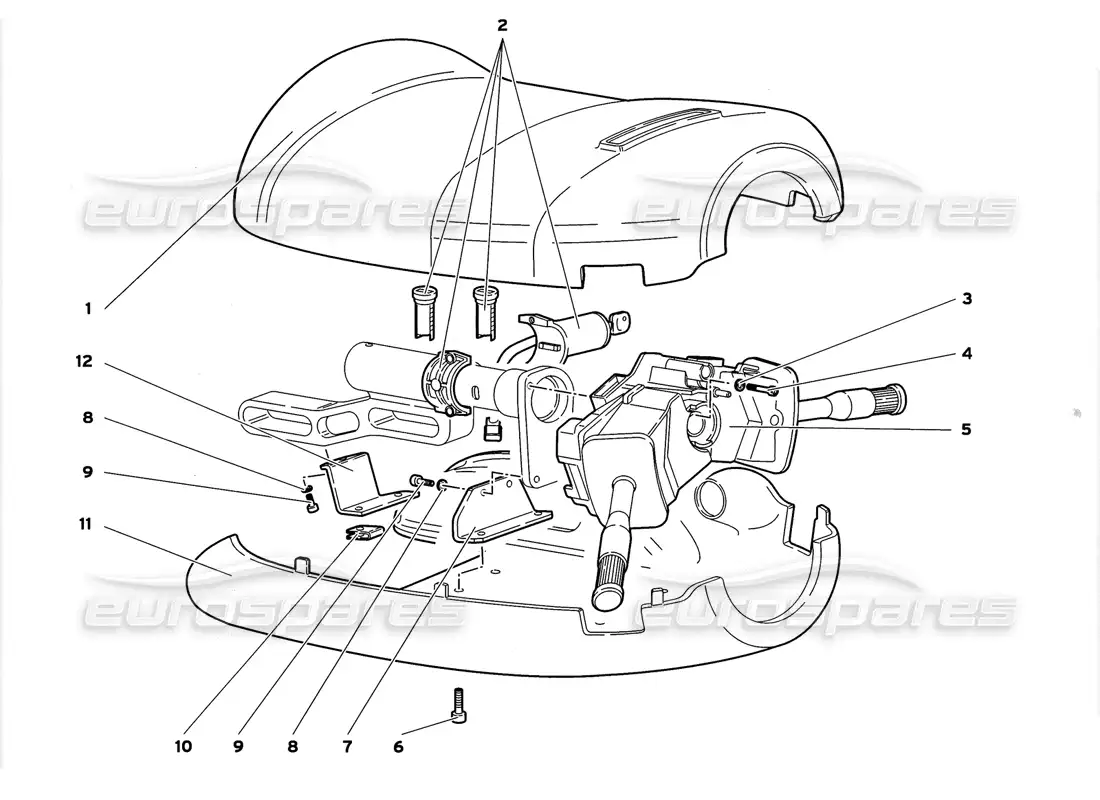

-part-diagram-43.01.00.webp "LAMBORGHINI DIABLO GT (1999) STEERING PARTS DIAGRAM")
