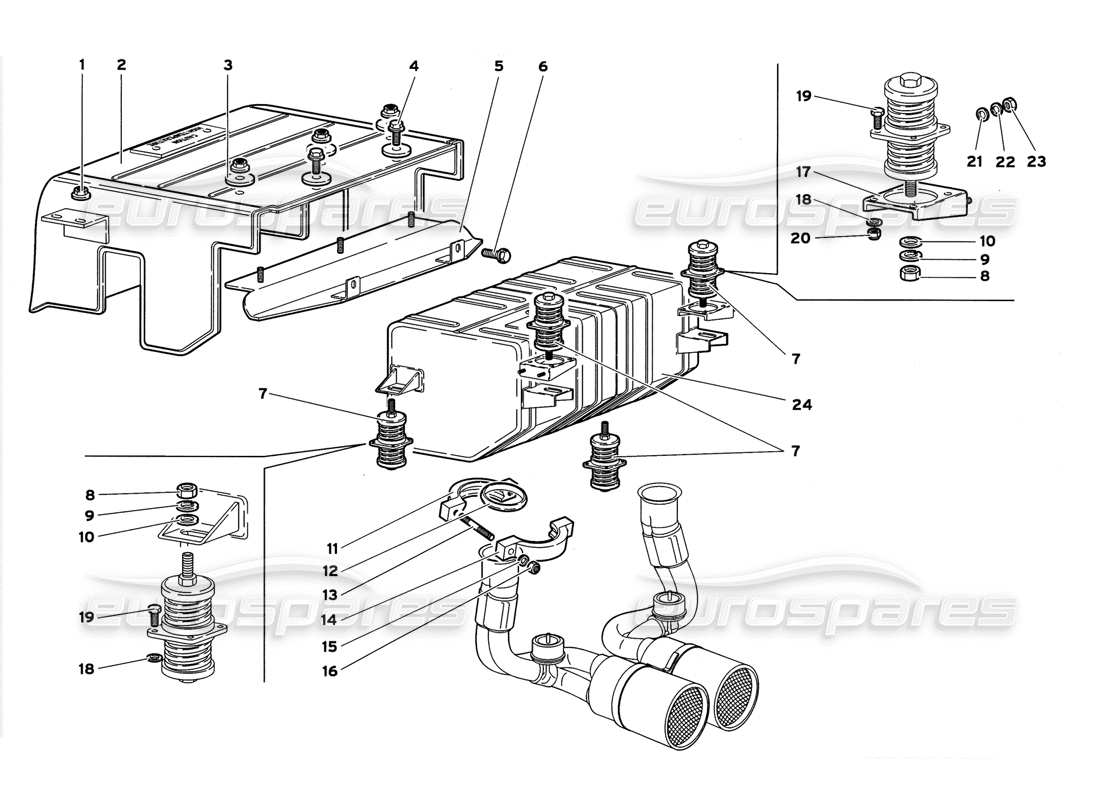

44.03.00 - Exhaust System

Lamborghini Diablo GT (1999) Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 008200614
NUT
DADO
Supersession
Supersession
# 002
MPN: 004435003
SHIELD
PROTEZIONE
from £3,086.78
from £3,086.78
# 003
MPN: 009444151
WASHER
RONDELLA
Supersession
Supersession
# 005
MPN: 0044001454
SHIELD
PROTEZIONE
from £326.68
from £326.68
This part replaces part number 004432116
# 006
MPN: 008700449
SCREW
VITE
from £2.04
from £2.04
# 007
MPN: 0044006410
SHOCK ABSORBER
AMMORTIZZATORE
from £223.03
from £223.03
# 008
MPN: N10155210
NUT
DADO
from £1.25
from £1.25
This part replaces part number 008201001
# 009
MPN: 008451005
WASHER
RONDELLA
from £0.50
from £0.50
# 010
MPN: 008401006
WASHER
RONDELLA
from £0.53
from £0.53
# 011
MPN: 004425084
HALF RING
SEMIANELLO FILETTATO
from £283.61
from £283.61
# 012
MPN: 004424070
BI-CONE RING
ANELLO DOPPIO CONO
from £93.82
from £93.82
# 013
MPN: N0444416
STUD
PRIGIONIERO
from £2.18
from £2.18
# 014
MPN: 004425084
HALF RING
SEMIANELLO
from £283.61
from £283.61
# 015
MPN: 008440806
WASHER
use : WHT001185
Supersession
Supersession
# 016
MPN: N02214621
NUT
DADO
from £1.39
from £1.39
This part replaces part number N0221468
# 017
MPN: 004437428
SUPPORT
SUPPORTO
from £55.17
from £55.17
# 018
MPN: 008410508
WASHER
RONDELLA
from £0.48
from £0.48
# 019
MPN: 008140504
SCREW
VITE
from £12.19
from £12.19
# 020
MPN: N0211963
NUT
DADO
from £0.48
from £0.48
# 021
MPN: N90179103
WASHER
RONDELLA
from £0.98
from £0.98
This part replaces part number 008400801
# 022
MPN: 008410806
WASHER
RONDELLA
Supersession
Supersession
# 023
MPN: N01100845
NUT
DADO
from £0.47
from £0.47
This part replaces part number 008200801 - and 2 more. Click to view details
# 024
MPN: 0044004543
SILENCER
SILENZIATORE
from £2,018.89
from £2,018.89
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
