45.03.00 - Climate Control

Lamborghini Diablo GT (1999) Climate Control Parts Diagram

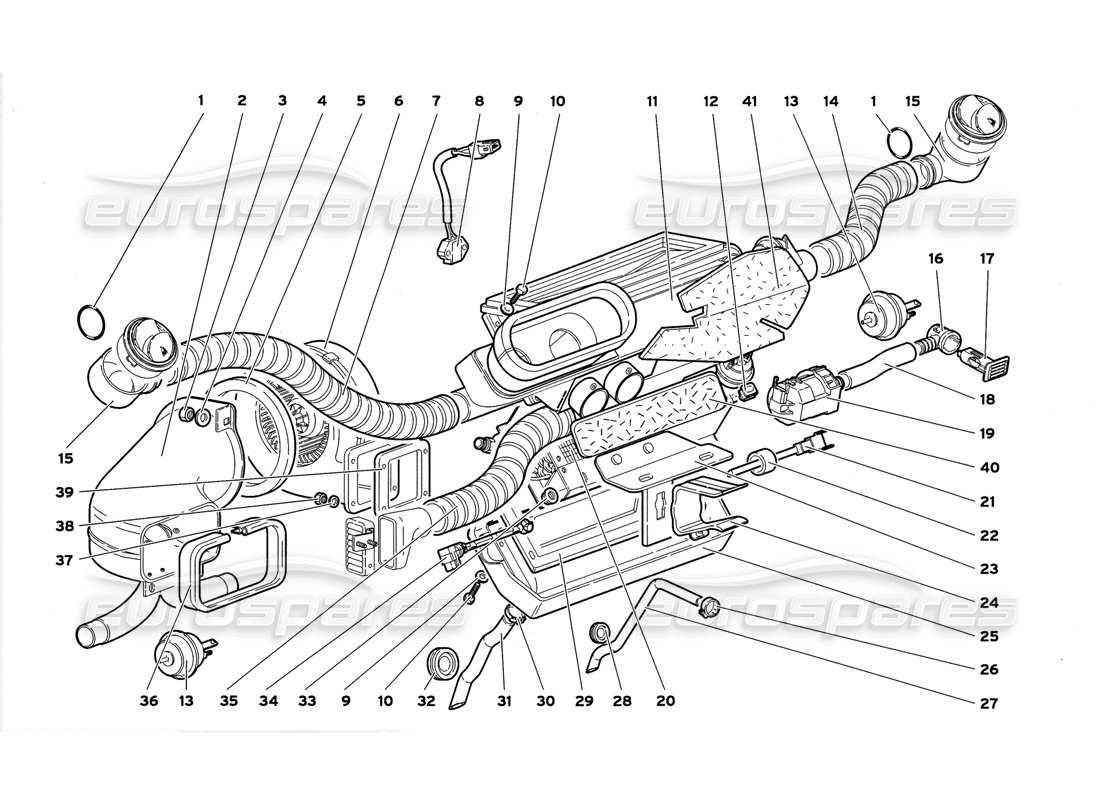

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 008604401
SEAL
ANELLO TENUTA
from £0.53
from £0.53
# 002
MPN: 009453182
CONVEYOR
CONVOGLIATORE
from £460.98
from £460.98
# 003
MPN: 008200606
NUT
DADO
Supersession
Supersession
# 004
MPN: WHT002961
WASHER
RONDELLA
from £0.53
from £0.53
This part replaces part number 008400607
# 005
MPN: 009490202
GASKET
Guarnizione
from £6.59
from £6.59
# 006
MPN: 004537176
ELECTROFAN
ELETTROVENTILATORE
from £243.76
from £243.76
# 007
MPN: 009414546
PIPE
Tubo
from £12.93
from £12.93
# 008
MPN: 004526662
TEMPER. SENSOR
SENSORE TEMP. ESTERNA
from £135.31
from £135.31
# 009
MPN: WHT003040
WASHER
RONDELLA
from £4.55
from £4.55
# 010
MPN: 008100502
SCREW
VITE
from £0.51
from £0.51
# 011
MPN: 0069003353
CONVEYOR
CONVOGLIATORE
from £1,376.33
from £1,376.33
# 012
MPN: 008220503
CLIP
MOLLETTA
from £6.59
from £6.59
# 013
MPN: 009414548
CONTROL
ATTUATORE
# 014
MPN: 009414544
PIPE
Tubo
from £8.54
from £8.54
# 015
MPN: 007014135
CONNECTION
RACCORDO
Supersession
Supersession
# 016
MPN: 004526666
CONNECTION
RACCORDO
from £21.81
from £21.81
# 017
MPN: 004526661
TEMPER. SENSOR
SENSORE TEMP. ABITACOLO
from £106.95
from £106.95
# 018
MPN: 006032223
PIPE
Tubo
from £6.02
from £6.02
# 019
MPN: 004526665
ELECTROFAN
ELETTROVENTOLA
from £213.08
from £213.08
# 020
MPN: 004535410
evaporator
EVAPORATORE - RISCALDATORE
from £266.97
from £266.97
# 021
MPN: 004526663
TEMPER. SENSOR
SENSORE TEMPERATURA
from £1,106.74
from £1,106.74
# 022
MPN: 004532839
SHIELD
PROTEZIONE
from £6.31
from £6.31
# 023
MPN: 005931538
SUPPORT
SUPPORTO
from £25.16
from £25.16
# 024
MPN: 005931539
SUPPORT
SUPPORTO RADIO
from £1.78
from £1.78
# 025
MPN: 009414505
CONVEYOR
CONVOGLIATORE
from £172.87
from £172.87
# 026
MPN: 008831117
STRAP
FASCETTA
Supersession
Supersession
# 027
MPN: 009414537
PIPE
DRAIN PIPE
from £24.43
from £24.43
# 028
MPN: 008612804
GASKET
Guarnizione
from £3.94
from £3.94
# 029
MPN: 009490203
GASKET
Guarnizione
from £11.77
from £11.77
# 030
MPN: 008832806
STRAP
FASCETTA
from £2.09
from £2.09
# 031
MPN: 009414540
PIPE
DRAIN PIPE
from £40.09
from £40.09
# 032
MPN: 008611606
GASKET
Guarnizione
from £1.21
from £1.21
# 033
MPN: 008200614
NUT
DADO
Supersession
Supersession
# 034
MPN: 004526664
TEMPER. SENSOR
SENSORE TEMP. ARIA
from £24.88
from £24.88
# 035
MPN: 009414544
PIPE
Tubo
from £8.54
from £8.54
# 036
MPN: 009490201
GASKET
Guarnizione
from £27.57
from £27.57
# 037
MPN: 008400401
WASHER
RONDELLA
Supersession
Supersession
# 038
MPN: WHT002959
NUT
DADO
from £0.55
from £0.55
# 039
MPN: 004731661
GASKET
Guarnizione
from £6.02
from £6.02
# 040
MPN: 0069004894
COVERING
RIVESTIMENTO
from £35.40
from £35.40
# 041
MPN: 0069005078
COVERING
RIVESTIMENTO
from £9.58
from £9.58
