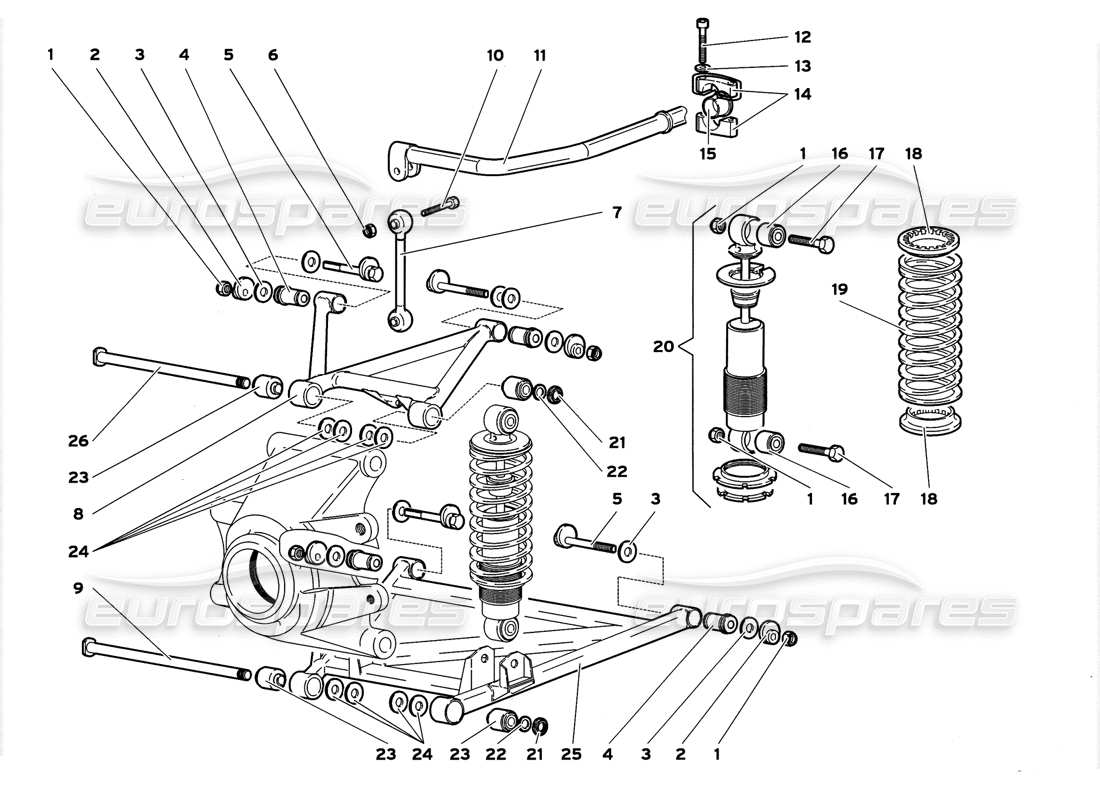

52.02.00 - Rear Suspension

Lamborghini Diablo GT (1999) Rear Suspension Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: WHT003355
      NUT USE (WHT003355)
      DADO
      from £8.48
      from £8.48
      # 002
      MPN: 410407127A
      BOLT
      ECCENTRICO
      from £608.71
      from £608.71
      This part replaces part number 005231923
      # 003
      MPN: 005133488
      SHIM
      SPESSORE1.5 MM
      Supersession
      Supersession
      # 003
      MPN: 410407295
      SHIM
      SPESSORE1 MM
      from £2.73
      from £2.73
      # 003
      MPN: 410407295B
      SHIM
      SPESSORE2 MM
      from £2.39
      from £2.39
      # 003
      MPN: 410407295C
      SHIM
      SPESSORE2,5MM
      from £2.64
      from £2.64
      # 003
      MPN: 410407295D
      SHIM
      SPESSORE3 MM
      from £17.99
      from £17.99
      # 004
      MPN: 008921206
      RESILIENT BUSHING
      BOCCOLA ELASTICA
      from £29.93
      from £29.93
      # 005
      MPN: 410407127A
      BOLT
      PERNO CON ECCENTRICO
      from £608.71
      from £608.71
      This part replaces part number 005231923
      # 006
      MPN: 008200804
      NUT
      DADO
      from £0.71
      from £0.71
      # 007
      MPN: 410411317
      COMPLETE CONNECTING ROD
      BIELLA COMPLETA
      from £258.53
      from £258.53
      # 008
      MPN: 005225908
      RH UPPER SUSPENSION ARM
      from £1,344.52
      from £1,344.52
      # 008
      MPN: 005225909
      ARM
      BRACCIO SUPERIORE SX
      from £1,539.06
      from £1,539.06
      # 009
      MPN: 005225205
      PIN
      PERNO
      from £57.79
      from £57.79
      # 011
      MPN: 0052005049
      TORSION BAR
      BARRA TORSIONE
      from £417.87
      from £417.87
      # 012
      MPN: WHT002960
      SCREW
      VITE
      from £5.07
      from £5.07
      # 013
      MPN: 008410602
      WASHER
      RONDELLA
      from £28.28
      from £28.28
      # 014
      MPN: 0052003970
      RETAINER
      CAVALLOTTO
      Supersession
      Supersession
      # 015
      MPN: 0052003966
      BUSHING
      BOCCOLA
      Supersession
      Supersession
      # 016
      MPN: 410512383
      RESILIENT BUSHING
      from £356.24
      from £356.24
      # 017
      MPN: 008101269
      SCREW
      VITE
      Supersession
      Supersession
      # 018
      MPN: 410512385
      RUBBER RING
      from £32.34
      from £32.34
      # 019
      MPN: 0052004952
      SPRING
      MOLLA
      from £453.94
      from £453.94
      # 020
      MPN: 005233166
      SHOCK ABSORBER (LIFTING SYSTEM)
      use part number 0R1320014 kit
      from £3,426.33
      from £3,426.33
      # 021
      MPN: 008251702
      PLUG
      GHIERA
      from £2.41
      from £2.41
      This part replaces part number 008251701
      # 022
      MPN: 008401708
      WASHER
      RONDELLA
      from £1.58
      from £1.58
      # 023
      MPN: 005225207
      RESILIENT BUSHING
      BOCCOLA ELASTICA
      from £128.20
      from £128.20
      # 024
      MPN: 008401710
      WASHER
      RONDELLA
      from £26.12
      from £26.12
      # 025
      MPN: 005225906
      ARM
      BRACCIO INFERIORE DX
      from £1,119.71
      from £1,119.71
      # 025
      MPN: 005225907
      ARM
      BRACCIO INFERIORE SX
      from £1,111.07
      from £1,111.07
      # 026
      MPN: 005225204
      PIN
      PERNO
      from £57.79
      from £57.79
      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
