60.02.00 - Tunnel Panel Instruments

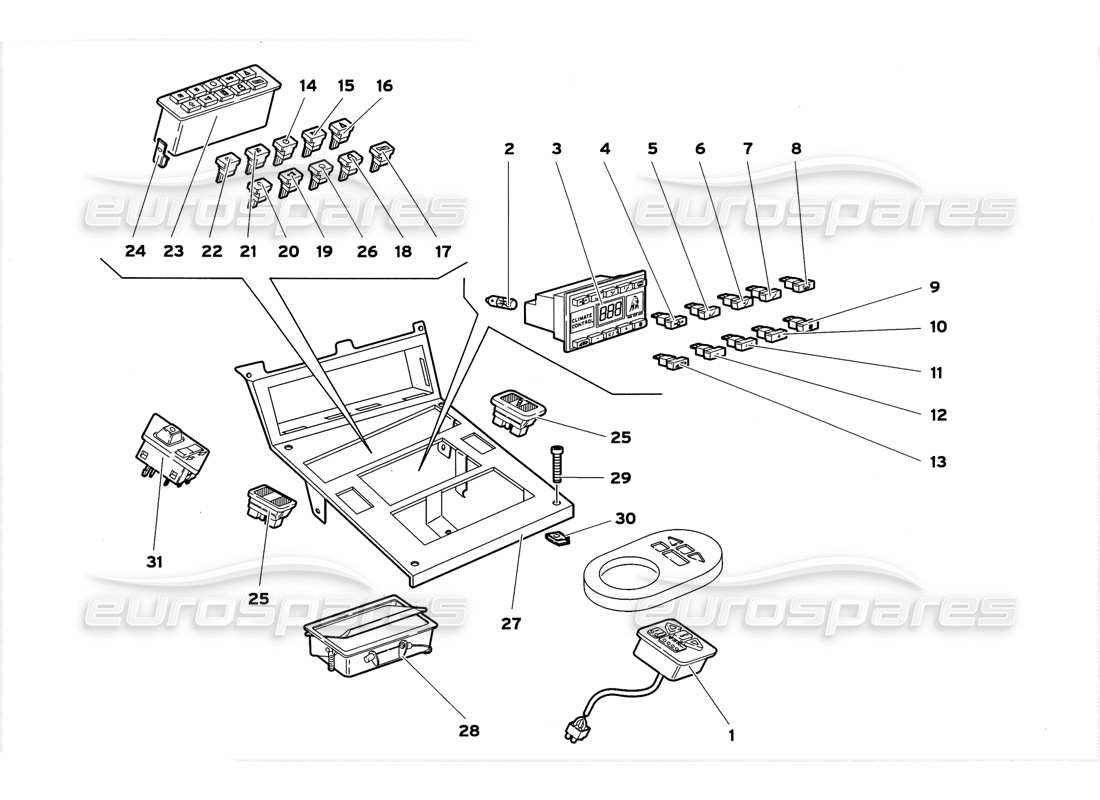

Lamborghini Diablo GT (1999) Tunnel Panel Instruments Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 005134573
SWITCH PANEL
PULSANTIERA (KONI)
from £766.10
from £766.10
# 002
MPN: 006327459
BULB
LAM PA DA
from £3.48
from £3.48
# 003
MPN: 006029692
CLIMATE CONTR. PAN.
AIR CONDITIONING DASHBOARD
from £7,345.14
from £7,345.14
# 004
MPN: 006027080
SWITCH
INTERRUT. MANDA. ARIA LATERALE
from £23.51
from £23.51
# 005
MPN: 006026633
SWITCH
INTERRUT. MANDA. ARIA INFERIORE
from £23.51
from £23.51
# 006
MPN: 006029741
SWITCH
INTERRUT. MANDA. ARIA FRONTALE
from £155.21
from £155.21
# 007
MPN: 006026632
SWITCH
INTERRUT. MANDATA ARIA SUPER.
from £23.51
from £23.51
# 008
MPN: 006026634
SWITCH
INTERRUT. DEFROSTER
from £23.51
from £23.51
# 009
MPN: 006027085
SWITCH
INTERRUT. COMANDO VENTOLA
from £23.51
from £23.51
# 010
MPN: 006027084
SWITCH
INTERRUT. CON +
from £23.51
from £23.51
# 011
MPN: 006027083
SWITCH
INTERRUT. CON C°/F°
from £23.51
from £23.51
# 012
MPN: 006027082
SWITCH
INTERRUT. CON -
from £23.51
from £23.51
# 013
MPN: 006027081
SWITCH
INTERRUT. RICIRCOLO ARIA
from £23.51
from £23.51
# 014
MPN: 006035295
LOCKED SWITCH
SWITCH BLOCKED
from £30.14
from £30.14
# 015
MPN: 006029662
SWITCH
INTERRUT. LUCI POSIZIONE
from £75.37
from £75.37
# 016
MPN: 006029664
SWITCH
INTERRUT. HAZARD
from £45.21
from £45.21
# 017
MPN: 006031357
SWITCH
INTERRUT. REGOLAZ. LUCI
from £76.26
from £76.26
# 018
MPN: 006029668
SWITCH
INTERRUT. SBLOCCA PORTE
from £18.20
from £18.20
# 019
MPN: 006029667
SWITCH
INTERRUT. BLOCCA PORTE
from £66.41
from £66.41
# 020
MPN: 006030484
SWITCH
INTERRUT. PLAFONIERA
from £17.04
from £17.04
# 021
MPN: 006029665
SWITCH
INTERRUT. FENDINEBBIA ANT.
from £155.21
from £155.21
# 022
MPN: 006029666
SWITCH
INTERRUT. RETRONEBBIA
from £155.21
from £155.21
# 023
MPN: 006038266
SWITCH PANEL
PULSANTIERA
from £821.41
from £821.41
# 024
MPN: 006032439
CLIP
MOLLETTA
from £5.94
from £5.94
# 025
MPN: 006029671
SWITCH
INTERRUT. ALZACR.
from £13.53
from £13.53
# 026
MPN: 006035295
SWITCH
SWITCH BLOCKED
from £30.14
from £30.14
# 027
MPN: 0069004452
TUNNEL BOARD WITHOUT
PLANCETTA TUNNEL SENZA AUTORADIO
# 027
MPN: 0069004710
TUNNEL BOARD WITH SOUND SYSTEM
PLANCETTA TUNNEL CON AUTORADIO
# 028
MPN: 005933187
ASHTRAY SOUND SYSTEM
POSACENERE
from £342.67
from £342.67
# 029
MPN: 008700347
SCREW
VITE
from £17.55
from £17.55
# 030
MPN: 008220306
CLIP
MOLLETTA
from £2.20
from £2.20
# 031
MPN: 006037116
Mirror Switch
MIRROR SWITCH
from £31.18
from £31.18
