62.01.00 - fuel system

Lamborghini Diablo GT (1999) Fuel System Parts Diagram

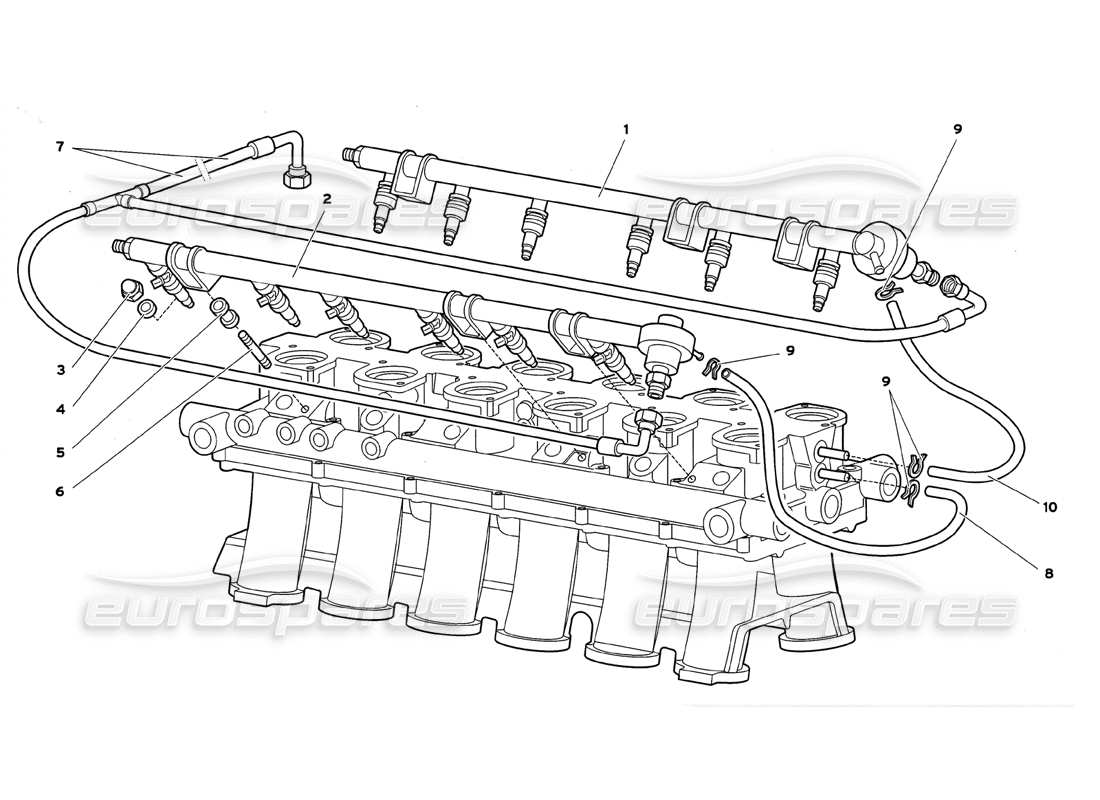

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 0020004634
RH TUBE COMPLETE
TUBO COMPLETO DX
# 002
MPN: 0020004637
LH TUBE COMPLETE
TUBO COMPLETO SX
# 003
MPN: 008200816
NUT
DADO
from £2.90
from £2.90
# 004
MPN: 008410806
WASHER
RONDELLA
Supersession
Supersession
# 005
MPN: 0020004638
SPACER
DISTANZIALE
# 006
MPN: 008600833
STUD
PRIGIONIERO
# 007
MPN: 0062006578
PIPE
Tubo
from £736.68
from £736.68
# 008
MPN: 0013004793
PIPE
Tubo
from £14.22
from £14.22
# 009
MPN: 008830122
STRAP
FASCETTA
from £0.54
from £0.54
# 010
MPN: 0013004792
PIPE
Tubo
from £19.70
from £19.70
