lamborghini diablo gt (1999) fuel system parts diagram

62.02.00 - fuel system

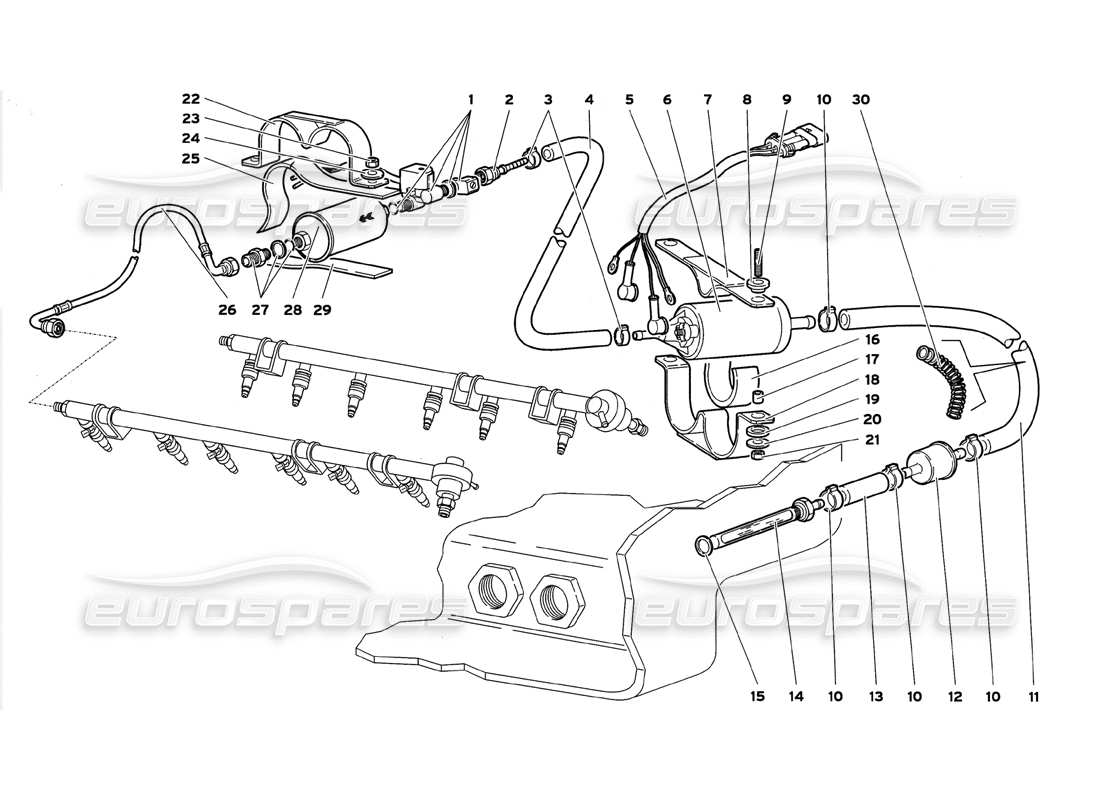

Lamborghini Diablo GT (1999) Fuel System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 006138349
        ELECTRO-VALVE KIT
        SOLENOID VALVE KIT
        Supersession
        Supersession
        # 002
        MPN: 006227630
        CONNECTION
        RACCORDO
        from £8.43
        from £8.43
        # 003
        MPN: 008831528
        STRAP
        FASCETTA
        Supersession
        Supersession
        # 004
        MPN: 006230218
        PIPE
        Tubo
        from £31.52
        from £31.52
        # 005
        MPN: 006130194
        ELECT CABLE
        CABLAGGIO POMPE BENZINA
        from £26.29
        from £26.29
        # 006
        MPN: 002024398
        fuel pump
        POMPA ALIMENTAZIONE
        from £429.73
        from £429.73
        # 007
        MPN: 006229533
        PLATE
        PIASTRA
        from £38.35
        from £38.35
        # 008
        MPN: 001701495
        RUBBER RING
        ANELLO COMMA
        from £32.99
        from £32.99
        # 009
        MPN: 008300803
        STUD
        PRIGIONIERO
        from £7.78
        from £7.78
        # 010
        MPN: 400251189B
        STRAP
        from £6.53
        from £6.53
        # 011
        MPN: 006230225
        PIPE
        Tubo
        from £12.62
        from £12.62
        # 012
        MPN: 006229221
        FILTER
        FILTRO
        from £45.69
        from £45.69
        # 013
        MPN: 006230226
        PIPE
        Tubo
        from £29.23
        from £29.23
        # 014
        MPN: 0062001649
        PIPE
        TUBO PESCANTE
        from £377.24
        from £377.24
        # 015
        MPN: WHT003048
        WASHER
        RONDELLA
        from £2.13
        from £2.13
        # 016
        MPN: 006226900
        GASKET
        Guarnizione
        from £15.05
        from £15.05
        # 017
        MPN: 001701592
        SPACER
        DISTANZIALE
        from £11.72
        from £11.72
        # 018
        MPN: 006229532
        STRAP
        FASCETTA
        from £29.10
        from £29.10
        # 019
        MPN: WHT001189
        RUBBER RING
        from £2.38
        from £2.38
        This part replaces part number 001707163
        # 020
        MPN: WHT001942
        WASHER
        RONDELLA
        from £2.18
        from £2.18
        # 021
        MPN: 008200804
        NUT
        DADO
        from £0.73
        from £0.73
        # 022
        MPN: 006230214
        STRAP
        FASCETTA
        # 023
        MPN: 008200606
        NUT
        DADO
        Supersession
        Supersession
        # 024
        MPN: WHT002961
        WASHER
        RONDELLA
        from £0.53
        from £0.53
        This part replaces part number 008400607
        # 025
        MPN: 410201349
        GASKET
        Guarnizione
        from £19.89
        from £19.89
        # 026
        MPN: 0062005093
        PIPE
        TUBO PER BANCATA 1-6
        from £445.23
        from £445.23
        # 026
        MPN: 0062005094
        PIPE
        TUBO PER BANCATA 7-12
        from £124.38
        from £124.38
        # 027
        MPN: 006230564
        CONNECTION
        RACCORDO
        Supersession
        Supersession
        # 028
        MPN: 400201511A
        FUEL FILTER
        from £32.95
        from £32.95
        This part replaces part number 002030563
        # 029
        MPN: 410201196
        GASKET
        Guarnizione
        from £3.03
        from £3.03
        # 030
        MPN: 0062002430
        SPRING
        MOLLA
        Supersession
        Supersession
