lamborghini diablo gt (1999) fuel system parts diagram

62.03.00 - fuel system

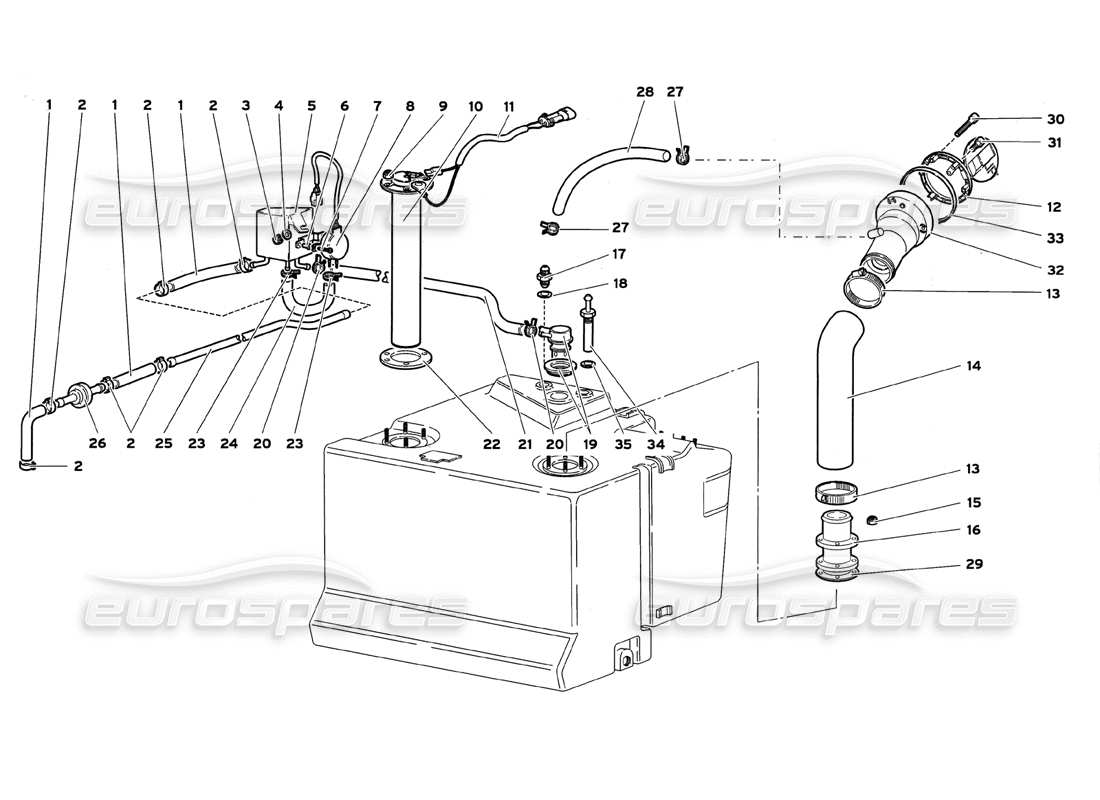

Lamborghini Diablo GT (1999) Fuel System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 0062001398
PIPE
Tubo
from £8.42
from £8.42
# 002
MPN: 008831528
STRAP
FASCETTA
Supersession
Supersession
# 003
MPN: 008200606
NUT
DADO
Supersession
Supersession
# 004
MPN: 008400606
WASHER
RONDELLA
Supersession
Supersession
# 005
MPN: 0062001351
SEGREGATOR
SEPARATORE VAPORI BENZ.
from £180.72
from £180.72
# 006
MPN: 0062001396
RUBBER BUSHING
BOCCOLA COMMA
from £1.41
from £1.41
# 007
MPN: 008700346
SCREW
VITE
from £0.53
from £0.53
# 008
MPN: 400906206
SENSOR
SENSORE
from £1,316.10
from £1,316.10
# 009
MPN: N0211963
NUT
DADO
from £0.51
from £0.51
# 010
MPN: 006229648
FUEL LEVEL GAUGE
INDICATORE LIVELLO CARBUR.
from £215.57
from £215.57
# 011
MPN: 006135126
ELECT CABLE
CABLAGGIO GALLEGGIANTE
from £6.06
from £6.06
# 012
MPN: 009490521
TANK CAP
TAPPO SERBATOIO
from £156.70
from £156.70
# 013
MPN: 008834501
STRAP
FASCETTA
Supersession
Supersession
# 014
MPN: 0062004384
PIPE
Tubo
from £74.12
from £74.12
# 015
MPN: WHT002959
NUT
DADO
from £0.53
from £0.53
# 016
MPN: 0062004581
UNION
BOCCHETTONE
from £544.72
from £544.72
# 017
MPN: 0062001267
CONNECTION
RACCORDO
from £21.27
from £21.27
# 018
MPN: 008401425
WASHER
RONDELLA
Supersession
Supersession
# 019
MPN: 0062001272
ROLL OVER VALVE
VALVOLA ROLL OVER
from £213.92
from £213.92
# 020
MPN: 008830131
STRAP
FASCETTA
Supersession
Supersession
# 021
MPN: 0062001160
PIPE
Tubo
from £8.71
from £8.71
# 022
MPN: 006229649
GASKET
Guarnizione
from £9.77
from £9.77
# 023
MPN: 008830128
STRAP
FASCETTA
Supersession
Supersession
# 024
MPN: 0062001397
PIPE
Tubo
from £3.65
from £3.65
# 025
MPN: 006237081
PIPE
Tubo
from £28.19
from £28.19
# 026
MPN: 0062001313
VALVE
VALVOLA
from £20.02
from £20.02
# 027
MPN: 008830214
STRAP
FASCETTA
from £2.37
from £2.37
# 028
MPN: 0062005002
PIPE
TUBO SFIATO
from £20.78
from £20.78
# 029
MPN: 006205360
GASKET
Guarnizione
from £34.44
from £34.44
# 030
MPN: 008740505
SCREW
VITE
from £0.53
from £0.53
# 031
MPN: 008740512
DOWEL
GRAND
from £0.53
from £0.53
# 032
MPN: 0062004922
UNION
BOCCHETTONE
from £532.29
from £532.29
# 033
MPN: 009490527
GASKET
Guarnizione
from £54.15
from £54.15
# 034
MPN: 0062006319
CONNECTION
RACCORDO
from £38.77
from £38.77
# 035
MPN: 008402018
GASKET
Guarnizione
from £6.97
from £6.97
