62.04.00 - fuel system

Lamborghini Diablo GT (1999) Fuel System Parts Diagram

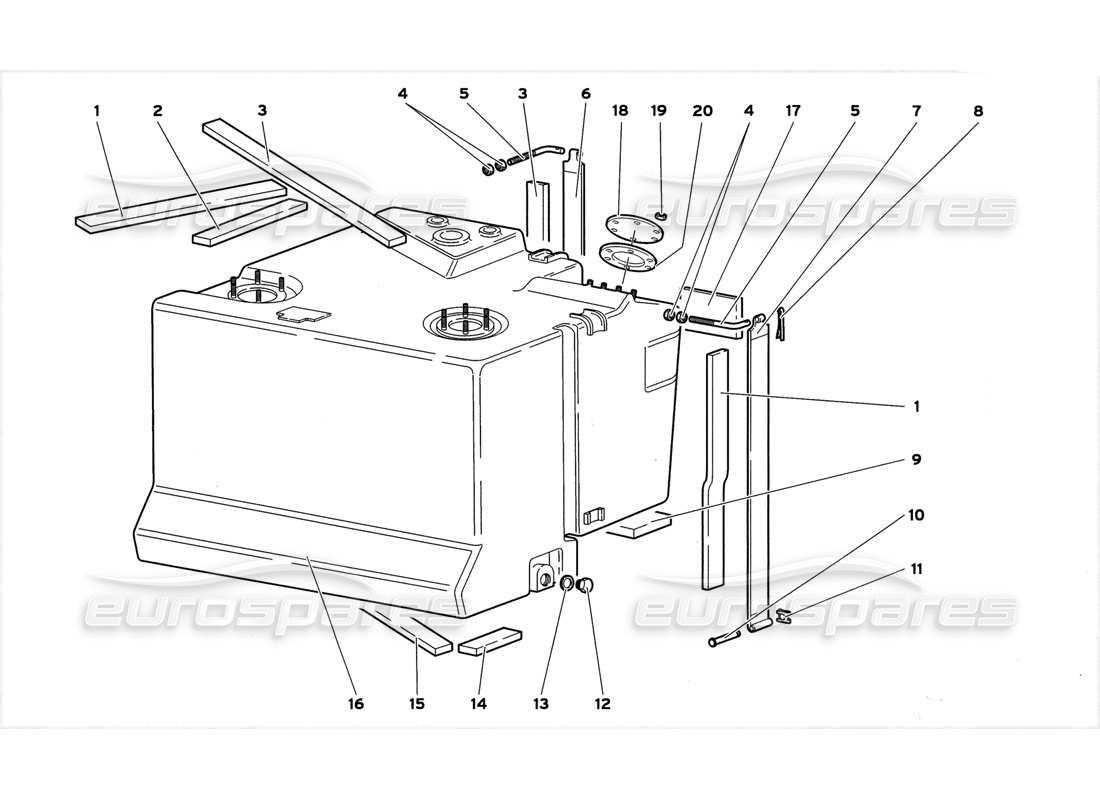

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 006231704
SHIELD
PROTEZIONE
from £46.19
from £46.19
# 002
MPN: 006237956
SHIELD
PROTEZIONE
# 003
MPN: 410201644
SHIELD
PROTEZIONE
from £10.59
from £10.59
# 004
MPN: N01100845
NUT
DADO
from £0.47
from £0.47
This part replaces part number 008200801 - and 2 more. Click to view details
# 005
MPN: 006226884
TIE ROD
TIRANTE
# 006
MPN: 006237360
STRAP
FASCETTA
from £48.93
from £48.93
# 007
MPN: 006229506
STRAP
FASCETTA
from £24.67
from £24.67
# 008
MPN: 008820304
SPLIT PIN
COPIGLIA
Supersession
Supersession
# 009
MPN: 006231701
SHIELD
PROTEZIONE
from £36.90
from £36.90
# 010
MPN: 006233763
PIN
PERNO
from £6.28
from £6.28
# 011
MPN: 008580604
CLIP
MOLLETTA
from £1.42
from £1.42
# 012
MPN: 008931203
PLUG
TAPPO
from £9.44
from £9.44
# 013
MPN: WHT003362
WASHER
RONDELLA
from £0.92
from £0.92
# 014
MPN: 006231706
SHIELD
PROTEZIONE
from £25.87
from £25.87
# 015
MPN: 006231702
SHIELD
PROTEZIONE
from £3.07
from £3.07
# 016
MPN: 0062004580
FUEL TANK
GAS TANK
from £1,737.00
from £1,737.00
# 017
MPN: 006237368
SHIELD
PROTEZIONE
from £12.19
from £12.19
# 018
MPN: 0062004582
PLUG
TAPPO
from £33.66
from £33.66
# 019
MPN: WHT002959
NUT
DADO
from £0.53
from £0.53
# 020
MPN: 006205360
GASKET
Guarnizione
from £34.32
from £34.32
