68.02.00 - Conveyors

Lamborghini Diablo GT (1999) Conveyors Parts Diagram

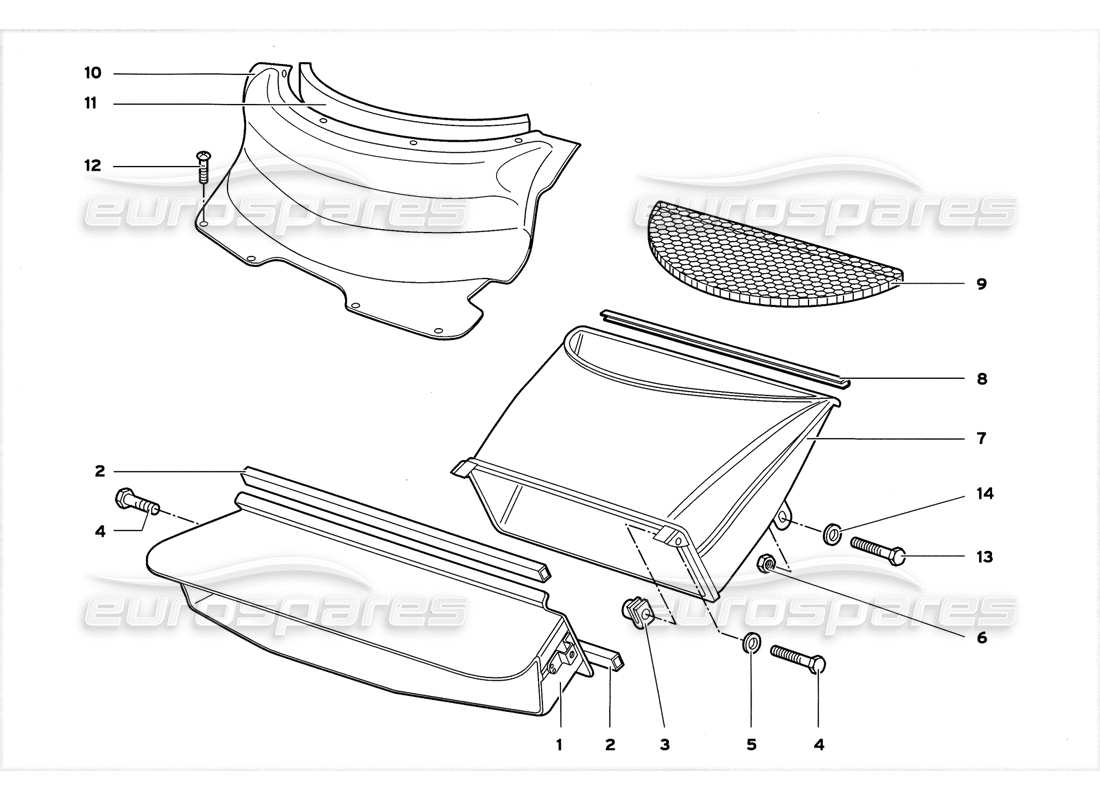

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 0074004681
    FRONT MANIFOLD
    CONVOGLIATORE ANT.
    from £286.88
    from £286.88
    # 002
    MPN: 0074006471
    GASKET
    Guarnizione
    from £2.95
    from £2.95
    # 003
    MPN: N90327506
    CLIP
    from £0.62
    from £0.62
    # 005
    MPN: WHT002961
    WASHER
    RONDELLA
    from £0.53
    from £0.53
    This part replaces part number 008400607
    # 006
    MPN: 008200614
    NUT
    DADO
    Supersession
    Supersession
    # 007
    MPN: 0074004682
    REAR MANIFOLD
    REAR CONVEYOR
    from £430.60
    from £430.60
    # 008
    MPN: 0074004842
    GASKET
    Guarnizione
    from £4.11
    from £4.11
    # 009
    MPN: 0074004841
    NET
    RETE
    from £313.41
    from £313.41
    # 010
    MPN: 0068004677
    DUCT COVER
    CONVEYOR COVER
    from £2,965.73
    from £2,965.73
    # 011
    MPN: 0074006472
    GASKET
    Guarnizione
    from £5.27
    from £5.27
    # 012
    MPN: WHT003304
    SCREW
    VITE
    from £0.51
    from £0.51
    # 013
    MPN: N10158604
    SCREW
    VITE
    from £16.26
    from £16.26
    # 014
    MPN: WHT003093
    WASHER
    RONDELLA
    from £0.53
    from £0.53
