lamborghini diablo gt (1999) glass parts diagram

70.01.00 - Glass

Lamborghini Diablo GT (1999) Glass Parts Diagram

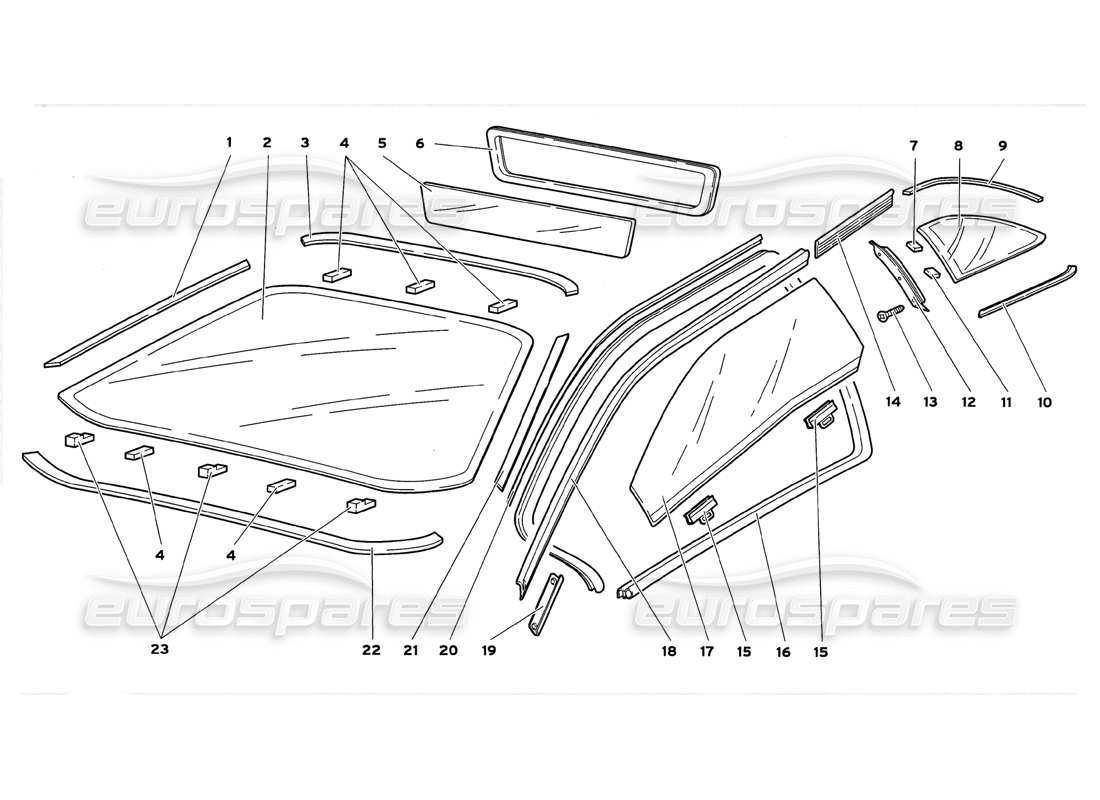

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 009415204
          RIGHT FRAME
          CORNICE DX
          from £232.59
          from £232.59
          # 002
          MPN: 009415107
          FRONT GLASS
          CRISTALLO ANTERIORE
          from £2,750.00
          from £2,750.00
          This part replaces part number 009415100
          # 003
          MPN: 009415200
          top frame
          CORNICE SUPERIORE
          from £297.44
          from £297.44
          # 004
          MPN: 410845235
          SPACER
          from £19.89
          from £19.89
          # 005
          MPN: 009418100
          REAR GLASS
          CRISTALLO POSTERIORE
          from £534.78
          from £534.78
          # 006
          MPN: 009418103
          GASKET
          Guarnizione
          from £380.57
          from £380.57
          # 007
          MPN: 400845633
          SPACER
          DISTANZIALE
          from £10.21
          from £10.21
          # 008
          MPN: 0070004149
          RIGHT GLASS
          CRISTALLO DX
          from £3,389.84
          from £3,389.84
          # 008
          MPN: 0070004150
          LEFT GLASS
          CRISTALLO SX
          from £3,389.84
          from £3,389.84
          # 009
          MPN: 009417106
          RIGHT FRAME
          CORNICE DX
          from £403.78
          from £403.78
          # 009
          MPN: 009417107
          LEFT FRAME
          CORNICE SX
          from £206.65
          from £206.65
          # 010
          MPN: 009417102
          RIGHT FRAME
          CORNICE DX
          from £174.53
          from £174.53
          # 010
          MPN: 009417103
          LEFT FRAME
          CORNICE SX
          from £131.42
          from £131.42
          # 011
          MPN: 410845626
          SPACER
          from £7.18
          from £7.18
          # 012
          MPN: 009417104
          RIGHT FRAME
          CORNICE DX
          from £349.32
          from £349.32
          # 012
          MPN: 009417105
          LEFT FRAME
          CORNICE SX
          from £261.13
          from £261.13
          # 013
          MPN: WHT003065
          SCREW
          VITE
          from £0.85
          from £0.85
          # 014
          MPN: 009421733
          GASKET
          Guarnizione
          from £34.70
          from £34.70
          # 015
          MPN: 009421608
          BRACKET
          STAFFA
          from £76.70
          from £76.70
          # 016
          MPN: 0072010205
          RHS GASKET
          from £449.38
          from £449.38
          # 016
          MPN: 0072010206
          LHS GASKET
          Guarnizione
          from £830.78
          from £830.78
          # 017
          MPN: 0072004147
          RIGHT DOOR GLASS
          from £3,259.70
          from £3,259.70
          # 017
          MPN: 0072004148
          LEFT DOOR GLASS
          from £2,455.58
          from £2,455.58
          # 018
          MPN: 0072001177
          GASKET
          Guarnizione
          from £305.22
          from £305.22
          This part replaces part number 009421703
          # 019
          MPN: 0072001470
          PLATE
          PIASTRINO
          from £77.78
          from £77.78
          # 020
          MPN: 009421708
          RIGHT SUPPORT
          SUPPORTO DX
          from £202.32
          from £202.32
          # 020
          MPN: 009421709
          LEFT SUPPORT
          SUPPORTO SX
          from £210.98
          from £210.98
          # 021
          MPN: 009415205
          LEFT FRAME
          CORNICE SX
          from £294.85
          from £294.85
          # 022
          MPN: 009415201
          BOTTOM FRAME
          CORNICE INFERIORE
          from £265.44
          from £265.44
          # 023
          MPN: 410845235
          SPACER
          from £19.89
          from £19.89
