72.01.00 - Door Mechanism

Lamborghini Diablo GT (1999) Door Mechanism Parts Diagram

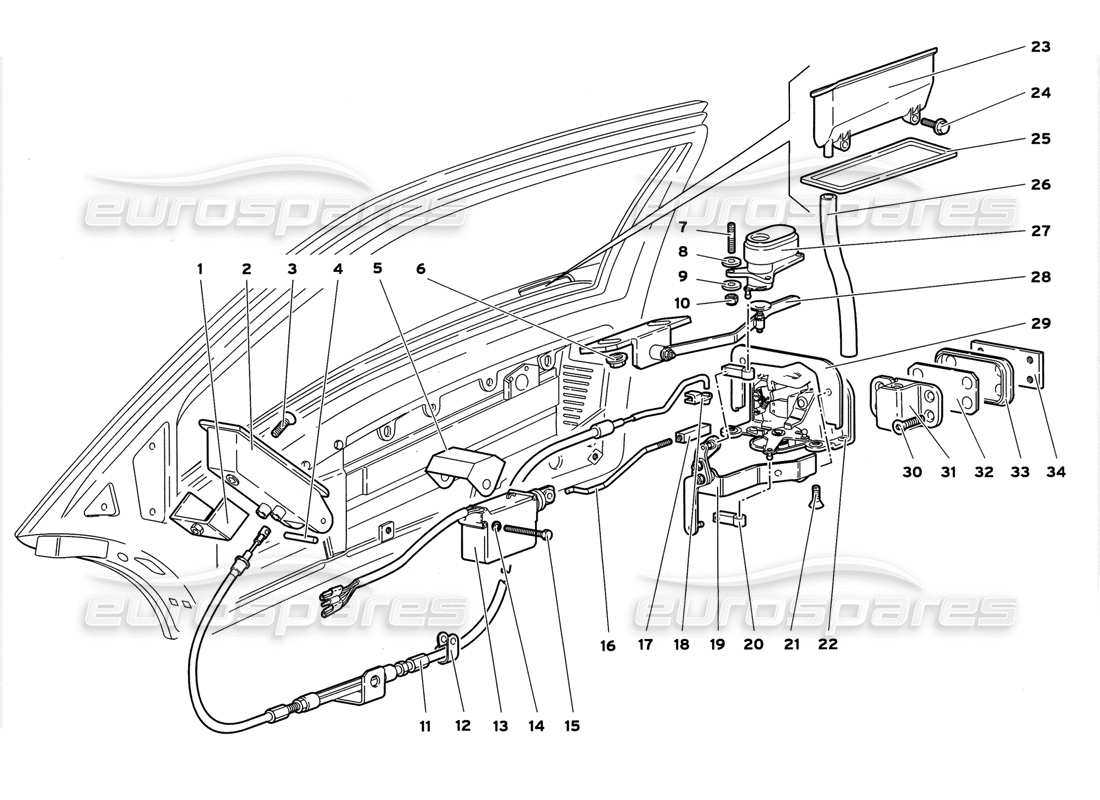

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 009421274
        BRACKET
        CAVALLOTTO
        from £40.25
        from £40.25
        # 002
        MPN: 0072004757
        HANDLE
        HANDLE
        from £341.30
        from £341.30
        # 004
        MPN: 008900305
        PIN
        PERNO
        from £0.53
        from £0.53
        # 005
        MPN: 009921112
        RIGHT SHIELD
        PROTEZIONE DX
        from £53.89
        from £53.89
        # 005
        MPN: 009921113
        LEFT SHIELD
        PROTEZIONE SX
        from £9.83
        from £9.83
        # 006
        MPN: 008200614
        NUT
        DADO
        Supersession
        Supersession
        # 007
        MPN: 008300403
        STUD
        PRIGIONIERO (L=21 MM)
        from £16.59
        from £16.59
        # 007
        MPN: 009921221
        STUD
        PRIGIONIERO (L=18 MM)
        from £2.69
        from £2.69
        # 008
        MPN: 008400401
        WASHER (SPACER)
        RONDELLA (DISTANZIALE)
        Supersession
        Supersession
        # 009
        MPN: 008400401
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 010
        MPN: WHT002959
        NUT
        DADO
        from £0.53
        from £0.53
        # 011
        MPN: 009421051
        LEFT CABLE
        CAVO SX
        from £84.98
        from £84.98
        # 011
        MPN: 009421052
        RIGHT CABLE
        CAVO DX
        from £183.65
        from £183.65
        # 012
        MPN: 008830907
        STRAP
        FASCETTA
        from £0.52
        from £0.52
        # 013
        MPN: 0R1320007
        LHS DOOR ACTUATOR
        from £555.96
        from £555.96
        # 013
        MPN: 0R1320008
        RHS DOOR ACTUATOR
        from £262.86
        from £262.86
        # 014
        MPN: 008400401
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 015
        MPN: 008100404
        SCREW
        VITE
        Supersession
        Supersession
        # 016
        MPN: 009921204
        RIGHT TIE ROD
        TIRANTE DX
        from £13.90
        from £13.90
        # 016
        MPN: 009921211
        LEFT TIE ROD
        TIRANTE SX
        from £13.90
        from £13.90
        # 017
        MPN: 007021016
        PAWL
        NOTTOLINO
        Supersession
        Supersession
        # 018
        MPN: 009421251
        CLIP
        HOOKING CLAMP
        # 019
        MPN: 009921225
        RIGHT IDLE LEVER
        RINVIO A LEVA DX
        from £207.95
        from £207.95
        # 019
        MPN: 009921226
        LEFT IDLE LEVER
        RINVIO A LEVA SX
        from £153.39
        from £153.39
        # 020
        MPN: 009421214
        COUPLING
        TESTINA
        Supersession
        Supersession
        # 021
        MPN: 008700638
        SCREW
        VITE
        Supersession
        Supersession
        # 022
        MPN: 410837015
        Left lock
        Left lock
        from £136.50
        from £136.50
        # 022
        MPN: 410837016
        Right lock
        Right lock
        from £136.50
        from £136.50
        # 023
        MPN: 009421200
        RIGHT HANDLE
        RIGHT HANDLE
        from £193.69
        from £193.69
        # 023
        MPN: 009421201
        LEFT HANDLE
        MANIGLIA SX
        from £202.77
        from £202.77
        # 024
        MPN: N10718801
        SCREW
        VITE
        from £0.59
        from £0.59
        # 025
        MPN: 009421712
        RIGHT GASKET
        GUARNIZIONE DX
        from £3.45
        from £3.45
        # 025
        MPN: 009421713
        LEFT GASKET
        GUARNIZIONESX
        from £8.34
        from £8.34
        # 026
        MPN: 009421245
        PIPE
        Tubo
        from £11.28
        from £11.28
        # 027
        MPN: 0072005036
        LH & RH DOOR BUTTONS
        from £282.74
        from £282.74
        # 027
        MPN: 009421227/a
        RIGHT DOOR BUTTON
        use : 0072005036 (LH & RH buttons)
        # 027
        MPN: 009421228/a
        LEFT DOOR BUTTON
        use : 0072005036 (LH & RH buttons)
        # 028
        MPN: 009921223
        RIGHT IDLE LEVER
        RINVIO A LEVA DX
        from £153.39
        from £153.39
        # 028
        MPN: 009921224
        LEFT IDLE LEVER
        RINVIO A LEVA SX
        from £153.39
        from £153.39
        # 029
        MPN: 009421272
        LEFT GASKET
        GUARNIZIONE SX
        # 029
        MPN: 009421273
        RIGHT GASKET
        GUARNIZIONE DX
        # 030
        MPN: 008700610
        SCREW
        VITE
        from £0.51
        from £0.51
        # 031
        MPN: 410831407A
        LEFT LOCK STRIKER
        from £163.12
        from £163.12
        # 031
        MPN: 410831408A
        RIGHT LOCK STRIKER
        from £287.71
        from £287.71
        # 032
        MPN: 410837963
        SPACER
        DISTANZIALE
        from £9.81
        from £9.81
        # 032
        MPN: 410837964
        SPACER
        DISTANZIALE
        from £9.56
        from £9.56
        # 033
        MPN: 410837899
        PLATE
        from £9.34
        from £9.34
        # 034
        MPN: 007021253
        PLATE
        PIASTRA
        from £18.62
        from £18.62
