lamborghini diablo gt (1999) door window mechanism parts diagram

72.02.00 - Door window mechanism

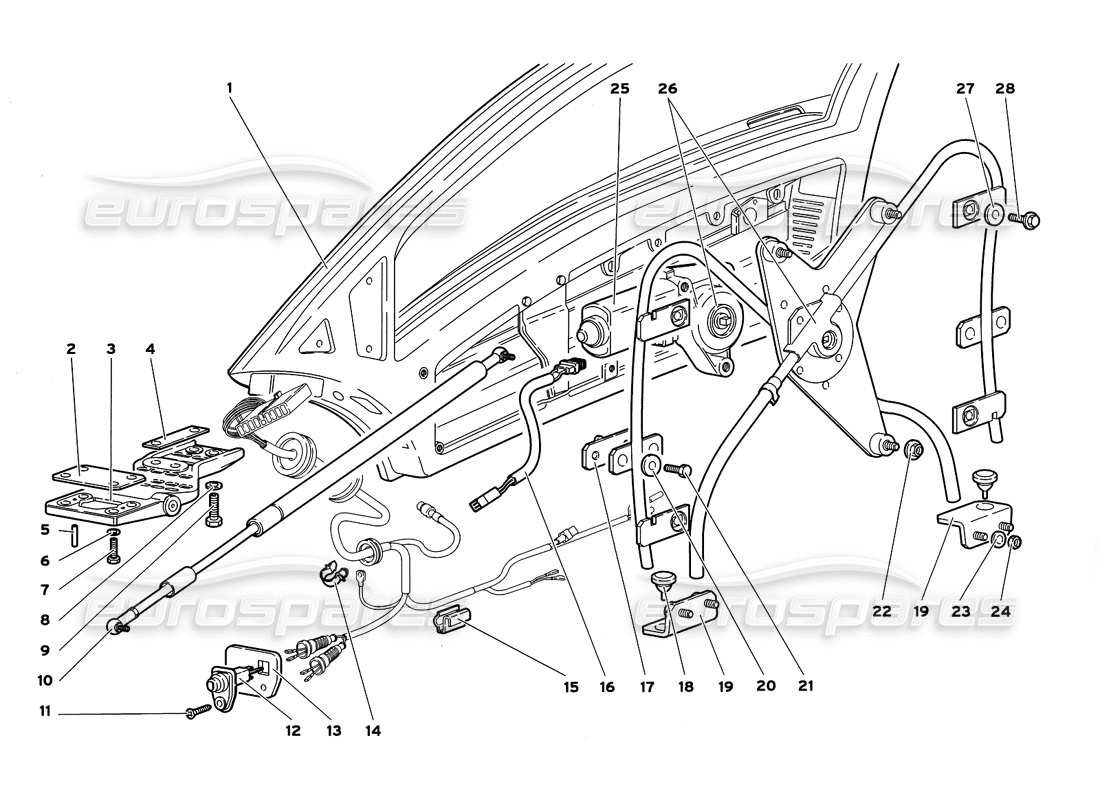

Lamborghini Diablo GT (1999) Door window mechanism Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 0072004753
RIGHT DOOR
PORTA DX
from £7,039.14
from £7,039.14
RIGHT DOOR ASSEMBLY Genuine Lamborghini - New (to order)
# 001
MPN: 0072004754
LEFT DOOR
PORTA SX
from £7,076.45
from £7,076.45
LEFT DOOR ASSEMBLY Genuine Lamborghini - New (to order)
# 002
MPN: 004132051
SHIM
SPESSORE 0,8 MM
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 002
MPN: 004132052
SHIM
SPESSORE1 MM
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 002
MPN: 004132053
SHIM
SPESSORE 1,2 MM
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 002
MPN: 004132054
SHIM
SPESSORE 1,5 MM
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 003
MPN: 009421030
LEFT HINGE
CERNIERASX
from £802.58
from £802.58
LEFT DOOR HINGE Genuine Lamborghini - New (to order)
# 003
MPN: 410831402
RIGHT HINGE
CERNIERADX
from £699.50
from £699.50
This part replaces part number 009421359
DOOR HINGE Genuine Lamborghini - New In stock
# 004
MPN: 009421380
SHIM
SPESSORE 1 MM
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 004
MPN: 009421381
SHIM
SPESSORE 1,5 MM
from £17.75
from £17.75
DOOR HINGE SHIM MM.1.5 Genuine Lamborghini - New (to order)
# 005
MPN: 008900401
PIN
SPINA ELASTICA
from £0.53
from £0.53
ELASTIC PIN 4X20 DIN1481 Genuine Lamborghini - New In stock
# 006
MPN: N90179103
WASHER
RONDELLA
from £0.98
from £0.98
This part replaces part number 008400801
WASHER Genuine Lamborghini - New In stock
# 007
MPN: 008100821
SCREW
VITE
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 008
MPN: 008411015
WASHER
RONDELLA
from £7.05
from £7.05
WASHER TAB FIAT 1119579 Genuine Lamborghini - New (to order)
# 009
MPN: 008101008
SCREW
VITE
from £9.69
from £9.69
SCREW M10X30UNI 5739/8G/ZD Genuine Lamborghini - New (to order)
# 010
MPN: 009421031
DOOR STRUT
MARTINETTO
from £70.52
from £70.52
DOOR SPRING Genuine Lamborghini - New In stock
DOOR SPRING Original Equipment - New In stock
# 011
MPN: WHT003304
SCREW
VITE
from £0.53
from £0.53
LOCK SCREW 2.9X16DIN7981/CR B LACK Genuine Lamborghini - New In stock
# 012
MPN: 005934450
SWITCH
INTERRUTTORE
from £13.56
from £13.56
DOOR SWITCH Genuine Lamborghini - New (to order)
# 013
MPN: 005934447
PLATE
Piastrina
from £46.85
from £46.85
DOOR BUTTON SHIM Genuine Lamborghini - New (to order)
# 014
MPN: 008830411
CLIP
MOLLETTA
from £0.83
from £0.83
SPRING Genuine Lamborghini - New In stock
# 015
MPN: 008830302
STRAP
FASCETTA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 016
MPN: 009421606
ELECT CABLE
CABLAGGIO
from £15.85
from £15.85
WINDER MOTOR WIRING Genuine Lamborghini - New (to order)
# 017
MPN: 009421607
BRACKET
STAFFA
from £37.32
from £37.32
PIN AND BRACKET Genuine Lamborghini - New (to order)
# 018
MPN: 009421408
RUBBER BUMPER
PARACOLPI COMMA
from £13.06
from £13.06
WINDOW STOP PAD Genuine Lamborghini - New (to order)
# 019
MPN: 009421406
RIGHT DOOR PLATE
PIASTRINA PORTA DX
from £30.39
from £30.39
DOOR WINDOW STOP PAD Genuine Lamborghini - New (to order)
# 019
MPN: 009421407
LEFT DOOR PLATE
PIASTRINA PORTA SX
from £6.02
from £6.02
DOOR WINDOW STOP PAD Genuine Lamborghini - New (to order)
# 020
MPN: WHT003040
WASHER
RONDELLA
from £4.55
from £4.55
WASHER Genuine Lamborghini - New (to order)
# 021
MPN: N01020717
SCREW
VITE
from £0.51
from £0.51
This part replaces part number 008100504
HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
screw, hex. hd. - M5 X 12 - D - MJ 1973>> Genuine Porsche Part - New (to order)
# 022
MPN: 008200614
NUT
DADO
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 023
MPN: WHT003040
WASHER
RONDELLA
from £4.55
from £4.55
WASHER Genuine Lamborghini - New (to order)
# 024
MPN: N0211963
NUT
DADO
from £0.48
from £0.48
HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
HEX. NUT - M5 Genuine Porsche Part - New (to order)
# 025
MPN: 009421604
RIGHT ELECT MOTOR
MOTORING DX
from £307.60
from £307.60
RH DOOR MOTOR Genuine Lamborghini - New (to order)
# 025
MPN: 009421605
LEFT ELECT MOTOR
MOTORING SX
from £307.60
from £307.60
LH DOOR MOTOR Genuine Lamborghini - New (to order)
# 026
MPN: 009421600
RIGHT KIT WIND. REGUL
RIGHT WINDOW REGULATOR KIT
from £393.41
from £393.41
WINDER MOTOR Genuine Lamborghini - New (to order)
# 026
MPN: 009421601
LEFT KIT WINDOW REG.
KIT ALZACRISTALLO SX
from £1,296.97
from £1,296.97
WINDER MOTOR Genuine Lamborghini - New (to order)
# 027
MPN: WHT002961
WASHER
RONDELLA
from £0.51
from £0.51
This part replaces part number 008400607
WASHER Genuine Lamborghini - New In stock
# 028
MPN: 008700663
SCREW
VITE
from £0.51
from £0.51
SCREW M6 Genuine Lamborghini - New (to order)
