lamborghini diablo gt (1999) rear spoiler parts diagram

73.01.00 - REAR SPOILER

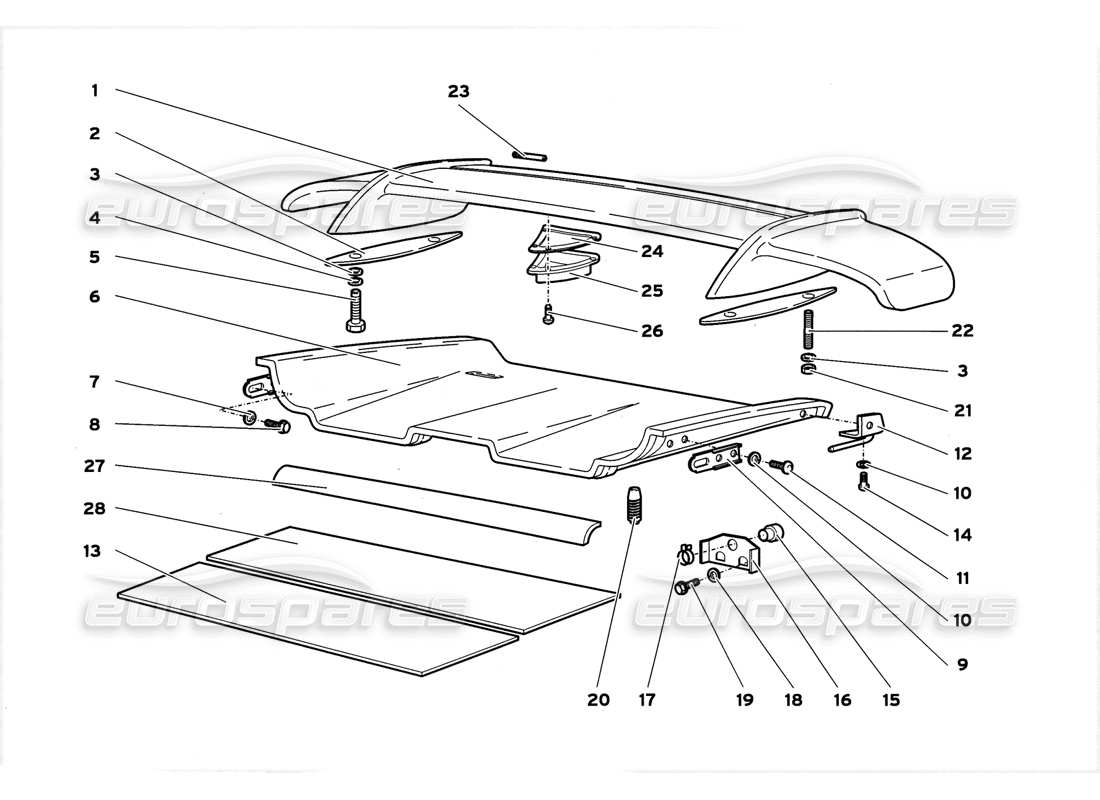

Lamborghini Diablo GT (1999) Rear Spoiler Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 0097006243
    REAR SPOILER
    from £8,045.49
    from £8,045.49
    # 002
    MPN: 0097001880
    GASKET
    Guarnizione
    from £116.73
    from £116.73
    # 003
    MPN: 008400606
    WASHER
    RONDELLA
    Supersession
    Supersession
    # 004
    MPN: 008410601
    WASHER
    RONDELLA
    from £0.53
    from £0.53
    # 005
    MPN: 008100621
    SCREW
    VITE
    from £1.11
    from £1.11
    # 006
    MPN: 0073004627
    BONNET
    COFANO POST.
    from £9,708.88
    from £9,708.88
    # 007
    MPN: 008400606
    WASHER
    RONDELLA
    Supersession
    Supersession
    # 008
    MPN: N10718801
    SCREW
    VITE
    from £0.59
    from £0.59
    # 009
    MPN: 0073005391
    REAR LID FRONT BRACKET
    STAFFA ANT. COFANO POST.
    from £162.50
    from £162.50
    # 010
    MPN: 008440608
    WASHER
    RONDELLA
    from £0.50
    from £0.50
    # 012
    MPN: 0073006748
    REAR LID RH REAR BRACKET
    from £24.34
    from £24.34
    # 012
    MPN: 0073006749
    REAR LID LH REAR BRACKET
    STAFFA POST. SX. COFANO POST.
    from £33.26
    from £33.26
    # 013
    MPN: 0077004735
    INSULATION KIT
    KIT ISOLAMENTO
    from £154.63
    from £154.63
    # 014
    MPN: 00870655
    SCREW
    VITE
    # 015
    MPN: 410814940
    BUSHING
    BOCCOLA
    from £29.96
    from £29.96
    # 018
    MPN: 0041006778
    BRACKET
    STAFFA
    from £26.51
    from £26.51
    # 018
    MPN: WHT002961
    WASHER
    RONDELLA
    from £0.53
    from £0.53
    This part replaces part number 008400607
    # 019
    MPN: 008100618
    SCREW
    VITE
    Supersession
    Supersession
    # 019
    MPN: 008830131
    CLIP
    MOLLETTA
    Supersession
    Supersession
    # 020
    MPN: 009460214
    RUBBER WASHER
    GOMMINO
    from £4.88
    from £4.88
    # 021
    MPN: 008200606
    NUT
    DADO
    Supersession
    Supersession
    # 022
    MPN: 008300663
    STUD
    PRIGIONIERO
    from £15.72
    from £15.72
    # 023
    MPN: 009490017
    PIN
    PERNO
    from £28.66
    from £28.66
    # 024
    MPN: 0097006622
    GASKET
    Guarnizione
    # 025
    MPN: 0097006248
    CAMERA BRACKET
    CAMERA SUPPORT
    from £582.04
    from £582.04
    # 026
    MPN: 008740510
    SCREW
    VITE
    from £1.33
    from £1.33
    # 027
    MPN: 009429111
    CHANNEL
    PROFILATO
    from £18.83
    from £18.83
    # 028
    MPN: 007700554
    INSULATION KIT
    KIT ISOLAMENTO
