lamborghini diablo gt (1999) front hood parts diagram

79.01.00 - Front Hood

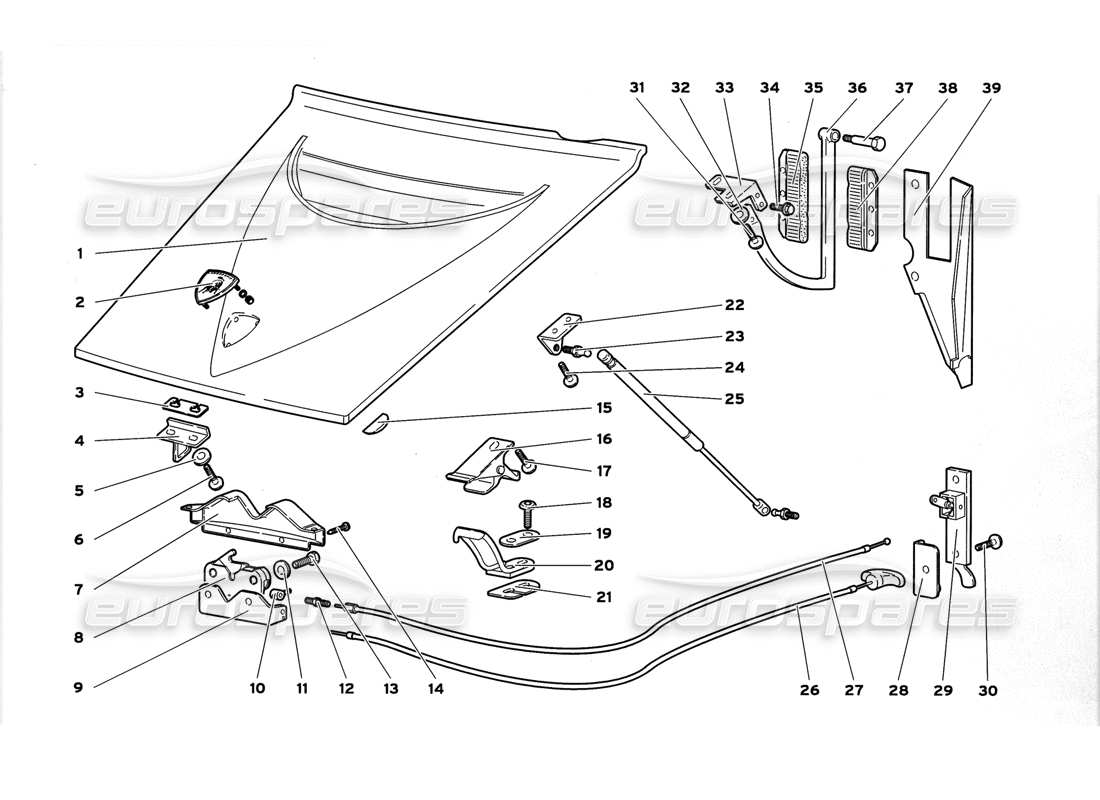

Lamborghini Diablo GT (1999) Front Hood Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 002
MPN: 006127985
ORNAMENT
SHIELD Lamborghini
from £206.68
from £206.68
# 003
MPN: 009459228
SHIM
SPESSORE
from £6.14
from £6.14
# 004
MPN: 0079005096
LOCK STRIKER
RISCONTRO
from £39.02
from £39.02
# 005
MPN: 008400627
WASHER
RONDELLA
from £13.82
from £13.82
# 006
MPN: 008740685
SCREW
VITE
from £12.06
from £12.06
# 007
MPN: 009459230
COVERING
RIVESTIMENTO
from £26.29
from £26.29
# 008
MPN: 009459216
lock
SERRATURA
from £107.65
from £107.65
# 009
MPN: 009459213
SPACER
DISTANZIALE
from £14.06
from £14.06
# 010
MPN: 009459217
CLAMP
MORSETTO
# 011
MPN: WHT002961
WASHER
RONDELLA
from £0.53
from £0.53
This part replaces part number 008400607
# 012
MPN: 009460213
ADJ/SCREW
VITE REGISTRO
# 013
MPN: 008100623
SCREW
VITE
Supersession
Supersession
# 014
MPN: WHT003065
SCREW
VITE
from £0.90
from £0.90
# 015
MPN: 009459108
RIGHT ELASTIC PAD
TASSELLO DX
from £21.97
from £21.97
# 015
MPN: 009459109
LEFT ELASTIC PAD
TASSELLO SX
from £21.97
from £21.97
# 016
MPN: 009459208
HOOK
GANCIO
from £72.48
from £72.48
# 017
MPN: 008740685
SCREW
VITE
from £12.06
from £12.06
# 018
MPN: 008700665
SCREW
VITE
from £31.84
from £31.84
# 019
MPN: 009459226
PLATE
Piastrina
from £19.04
from £19.04
# 020
MPN: 009459224
LOCK STRIKER
RISCONTRO
from £95.98
from £95.98
# 021
MPN: 009459225
SHIM
SPESSORE Dl REGISTRO 1 MM
from £9.95
from £9.95
# 021
MPN: 009459235
SHIM
SPESSORE Dl REGISTRO 2 MM
from £4.56
from £4.56
# 022
MPN: 009459309
BRACKET
STAFFA
from £24.05
from £24.05
# 023
MPN: 009459305
PIN
PERNO
from £1.60
from £1.60
# 024
MPN: 008740685
SCREW
VITE
from £12.06
from £12.06
# 025
MPN: 0079004387
SHOCK ABSORBER
MARTINETTO (ARGENTO)
from £78.86
from £78.86
This part replaces part number 009459318
# 026
MPN: 009459003
CABLE
CAVO EMERGENZA
# 027
MPN: 009459001
CABLE
CAVO APERTURA COFANO
from £12.76
from £12.76
# 028
MPN: 009459223
PLATE
Piastrina
from £8.87
from £8.87
# 029
MPN: 009459200
HANDLE
MANIGLIA APERTURA COFANO
from £326.68
from £326.68
# 030
MPN: 008700544
SCREW
VITE
from £1.09
from £1.09
# 031
MPN: 008700685
SCREW
VITE
Supersession
Supersession
# 032
MPN: 008400627
WASHER
RONDELLA
from £13.82
from £13.82
# 033
MPN: 009459321
RIGHT SUPPORT
SUPPORTO DX
from £31.84
from £31.84
# 033
MPN: 009459322
LEFT SUPPORT
SUPPORTO SX
from £31.84
from £31.84
# 034
MPN: 008700674
SCREW
VITE
Supersession
Supersession
# 035
MPN: 0079001335
BRUSH
SPAZZOLA
from £26.54
from £26.54
# 036
MPN: 0079001733
LEFT HINGE
CERNIERASX
from £172.46
from £172.46
# 036
MPN: 0079001734
RIGHT HINGE
CERNIERA DX
from £179.85
from £179.85
# 037
MPN: 009459323
PIN
PERNO
from £30.66
from £30.66
# 038
MPN: 0079001336
BRUSH
SPAZZOLA
from £26.54
from £26.54
# 039
MPN: 0079001337
RIGHT PLATE
PIASTRA DX
from £33.66
from £33.66
# 039
MPN: 0079001338
LEFT PLATE
PIASTRA SX
from £33.66
from £33.66
