17.03.00 - Radiators and Electro-Fans

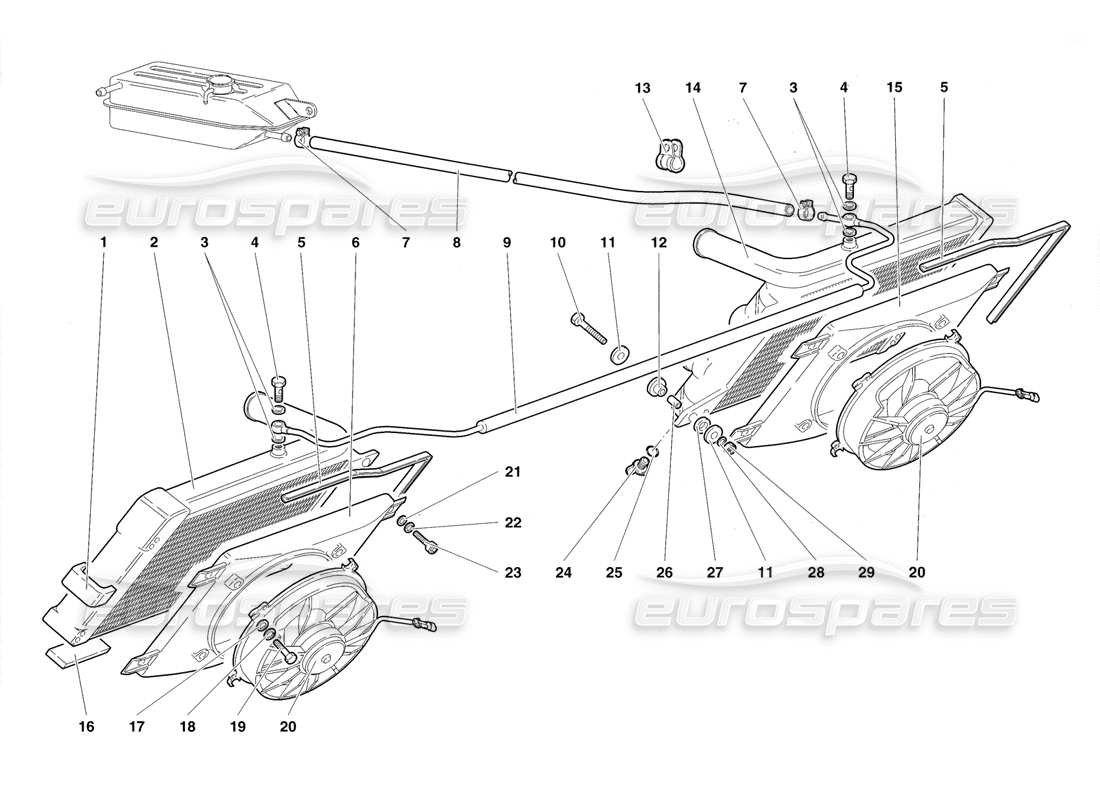

Lamborghini Diablo Roadster (1998) Radiators and Electro-Fans Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 001733004
      SHIELD
      PROTEZIONE
      from £13.61
      from £13.61
      BRACKET SEAL Genuine Lamborghini - New (to order)
      # 002
      MPN: 001737087
      LEFT RADIATOR
      RADIATORE SX
      from £1,763.87
      from £1,763.87
      LH COOLANT RADIATOR ASSEMBLY Genuine Lamborghini - New (to order)
      # 003
      MPN: 008400818
      WASHER
      RONDELLA
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 004
      MPN: WHT000524
      VENT SCREW
      from £14.96
      from £14.96
      This part replaces part number 001733423
      BANJO BOLT Genuine Lamborghini - New (to order)
      # 005
      MPN: 410121539
      GASKET
      Guarnizione
      from £35.11
      from £35.11
      AIR MANIFOLD SEAL Genuine Lamborghini - New (to order)
      # 006
      MPN: 410121333
      LEFT CONVEYOR
      CONVOGLIATORE SX
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 007
      MPN: 008830817
      STRAP
      FASCETTA
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 008
      MPN: 001737090
      PIPE
      Tubo
      from £13.40
      from £13.40
      TUBO COLL.NOUR.DX/SF.ARIA Genuine Lamborghini - New (to order)
      # 009
      MPN: 001737089
      VENT PIPE
      TUBO Dl SFIATO
      from £70.48
      from £70.48
      COOLANT BREATHER FROM RADIATOR ASSEMBLY Genuine Lamborghini - New (to order)
      # 010
      MPN: 008100824
      SCREW
      VITE
      from £0.89
      from £0.89
      SCREW M8X75 UNI 5737-65A/F Genuine Lamborghini - New In stock
      # 011
      MPN: WHT001942
      WASHER
      RONDELLA
      from £2.06
      from £2.06
      WASHER Genuine Lamborghini - New In stock
      # 012
      MPN: 001733266
      RUBBER BUSHING
      BOCCOLA GOMMA
      from £4.20
      from £4.20
      RADIATOR BRACKET RING Genuine Lamborghini - New (to order)
      # 013
      MPN: 008831515
      STRAP
      FASCETTA
      from £5.63
      from £5.63
      CLAMP Genuine Lamborghini - New (to order)
      # 014
      MPN: 001737086
      RIGHT RADIATOR
      RADIATORE DX
      from £1,686.06
      from £1,686.06
      RH COOLANT RADIATOR ASSEMBLY Genuine Lamborghini - New (to order)
      # 015
      MPN: 410121334A
      RIGHT CONVEYOR
      CONVOGLIATORE DX
      from £535.00
      from £535.00
      AIR DUCT Genuine Lamborghini - New In stock
      AIR DUCT Genuine Lamborghini - Used In stock
      # 016
      MPN: 001731451
      SHIELD
      PROTEZIONE
      from £9.25
      from £9.25
      COOLANT RADIATOR BRACKET SEAL Genuine Lamborghini - New (to order)
      # 017
      MPN: WHT003040
      WASHER
      RONDELLA
      from £4.55
      from £4.55
      WASHER Genuine Lamborghini - New (to order)
      # 018
      MPN: 008410502
      WASHER
      RONDELLA
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 019
      MPN: 008100502
      SCREW
      VITE
      from £0.51
      from £0.51
      SCREW 5X16 UNI 5739/8G/Z Genuine Lamborghini - New In stock
      # 020
      MPN: 0017017063
      ELECTROFAN
      ELETTROVENTILATORE
      from £225.53
      from £225.53
      This part replaces part number 001734039
      FAN WHEEL Genuine Lamborghini - New (to order)
      # 021
      MPN: WHT002961
      WASHER
      RONDELLA
      from £0.51
      from £0.51
      This part replaces part number 008400607
      WASHER Genuine Lamborghini - New In stock
      # 022
      MPN: 008410611
      WASHER
      RONDELLA
      from £0.51
      from £0.51
      SNAP RING D.6 DIN 7980 Genuine Lamborghini - New (to order)
      # 023
      MPN: 008700614
      SCREW
      VITE
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 024
      MPN: 410121299
      PLUG
      TAPPO
      from £140.51
      from £140.51
      WING PLUG ON RADIATOR Genuine Lamborghini - New (to order)
      # 025
      MPN: 008600901
      SEAL
      use : WHT003058
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 026
      MPN: 001733267
      BUSHING
      BOCCOLA
      from £7.26
      from £7.26
      RADIATOR BRACKET RING SHIM Genuine Lamborghini - New (to order)
      # 027
      MPN: WHT001189
      RUBBER RING
      from £2.38
      from £2.38
      This part replaces part number 001707163
      WASHER Genuine Lamborghini - New In stock
      # 028
      MPN: 008400801
      WASHER
      RONDELLA
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 029
      MPN: 008200804
      NUT
      DADO
      from £0.71
      from £0.71
      NUT Genuine Lamborghini - New In stock
