lamborghini diablo roadster (1998) front differential case (version 4x) parts diagram

23.02.00 - Front Differential Case (Version 4X)

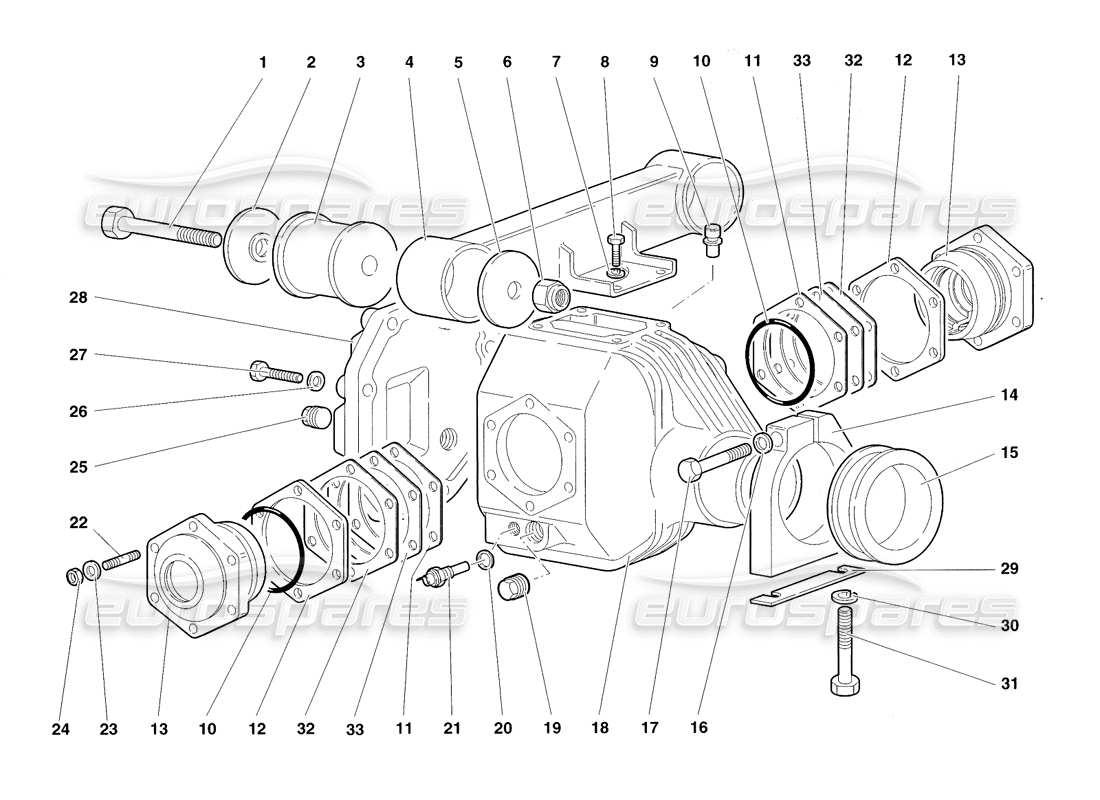

Lamborghini Diablo Roadster (1998) Front Differential Case (Version 4X) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 008101434
      SCREW
      VITE
      from £1.95
      from £1.95
      SCREW 14X2X130UNI5735-8GZD Genuine Lamborghini - New (to order)
      # 002
      MPN: 004134280
      WASHER
      RONDELLA
      from £29.15
      from £29.15
      FRONT DIFFERENTIAL BRACKET WAS HER Genuine Lamborghini - New (to order)
      # 003
      MPN: 0B9501144
      SUPPORT MOUNT
      from £114.80
      from £114.80
      This part replaces part number 008921408 - and 1 more. Click to view details
      SILENTBLOC 14X56,5X52,5 Genuine Lamborghini - New In stock
      SILENTBLOC 14X56,5X52,5 Eurospares Approved Part - New In stock
      # 003
      MPN: 0B9501144
      SUPPORT MOUNT
      from £114.80
      from £114.80
      This part replaces part number 008921408 - and 1 more. Click to view details
      SILENTBLOC 14X56,5X52,5 Genuine Lamborghini - New In stock
      SILENTBLOC 14X56,5X52,5 Eurospares Approved Part - New In stock
      # 004
      MPN: 002326142
      SUPPORT
      SUPPORTO
      from £80.48
      from £80.48
      FRONT DIFFERENTIAL MOUNT Genuine Lamborghini - New (to order)
      FRONT DIFFERENTIAL MOUNT Genuine Lamborghini - Used In stock
      # 005
      MPN: 008401415
      WASHER
      RONDELLA
      from £10.71
      from £10.71
      FLAT WASHER D.14X58X3 8G Genuine Lamborghini - New In stock
      # 006
      MPN: 008201416
      NUT
      DADO
      from £1.23
      from £1.23
      14X2X14 8G/Z NUT Genuine Lamborghini - New (to order)
      # 007
      MPN: 008410806
      WASHER
      RONDELLA
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 008
      MPN: N01029315
      SCREW
      VITE
      from £0.85
      from £0.85
      HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
      # 009
      MPN: 0B9507141
      VENT PIPE
      SFIATO
      from £43.11
      from £43.11
      DIFFERENTIAL OIL VAPOUR BREATH ER PIPE Genuine Lamborghini - New (to order)
      # 010
      MPN: WHT002158
      SEAL
      ANELLO TENUTA
      from £13.02
      from £13.02
      RING 85 MM OR Genuine Lamborghini - New In stock
      # 011
      MPN: 002334027
      SHIM
      SPESSORE Dl REGISTRO
      SHIM Genuine Lamborghini - New (to order)
      # 011
      MPN: 002336158
      SHIM
      SPESSORE Dl REGISTRO
      SHIM Genuine Lamborghini - New (to order)
      # 012
      MPN: 002334026
      SHIM
      SPESSORE Dl REGISTRO
      SHIM Genuine Lamborghini - New (to order)
      # 013
      MPN: 002334044
      FLANGE
      FLANGIA
      from £140.95
      from £140.95
      FRONT DIFFERENTIAL BOX FLANGE Genuine Lamborghini - New (to order)
      # 014
      MPN: 002325440
      SILENTBLOC
      SILENTBLOC
      from £32.29
      from £32.29
      COLLAR RUBBER RING Genuine Lamborghini - New (to order)
      # 015
      MPN: 002325441
      CLAMP
      STAFFA-COLLARE
      from £173.70
      from £173.70
      FRONT DIFFERENTIAL MOUNTING CO LLAR Genuine Lamborghini - New (to order)
      # 016
      MPN: WHT000768
      WASHER
      from £1.36
      from £1.36
      This part replaces part number 008410806 - and 1 more. Click to view details
      SPRING WASHER Genuine Lamborghini - New In stock
      # 017
      MPN: 008101018
      SCREW
      VITE
      from £0.54
      from £0.54
      SCREW M10X1.5X60 UNI5737/ Genuine Lamborghini - New In stock
      # 018
      MPN: 002325400
      CASE
      SCATOLA DIFFER.
      from £2,362.97
      from £2,362.97
      FRONT DIFFERENTIAL BOX Genuine Lamborghini - New (to order)
      # 019
      MPN: 086301141A
      MAGNETIC PLUG
      TAPPO MAGNETICO
      from £23.18
      from £23.18
      This part replaces part number TN-03165
      MAGNETIC PLUG 22X1.5 Genuine Lamborghini - New (to order)
      # 020
      MPN: 008401425
      WASHER
      RONDELLA
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 021
      MPN: 006033681
      TEMPERATURE SENS.
      SENSORE
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 022
      MPN: 008300801
      STUD
      PRIGIONIERO
      from £4.15
      from £4.15
      STUD M8X20 UNI 5911 8G ZD Genuine Lamborghini - New (to order)
      # 023
      MPN: 008410810
      WASHER
      RONDELLA
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 024
      MPN: 008200801
      NUT
      DADO
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 025
      MPN: 086301141A
      PLUG
      TAPPO
      from £23.18
      from £23.18
      This part replaces part number TN-03165
      MAGNETIC PLUG 22X1.5 Genuine Lamborghini - New (to order)
      # 026
      MPN: 008410810
      WASHER
      RONDELLA
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 027
      MPN: 008100821
      SCREW
      VITE
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 028
      MPN: 002325401
      COVER
      Box lid
      from £155.88
      from £155.88
      FRONT DIFFERENTIAL BOX COVER Genuine Lamborghini - New (to order)
      # 029
      MPN: 004134397
      SHIM
      SPESSORE Dl REGISTRO 1,5 MM
      from £6.89
      from £6.89
      FRONT DIFFERENTIAL SHIM 1.5 MM Genuine Lamborghini - New (to order)
      # 029
      MPN: 004134398
      SHIM
      SPESSORE Dl REGISTRO 2 MM
      from £6.89
      from £6.89
      FRONT DIFFERENTIAL SHIM 2 MM Genuine Lamborghini - New (to order)
      # 030
      MPN: 008411005
      WASHER
      RONDELLA
      from £0.53
      from £0.53
      WASHER D.10.5 UNI 1751/F Genuine Lamborghini - New In stock
      # 031
      MPN: 008101031
      SCREW
      VITE
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 032
      MPN: 0023002122
      SHIM
      SPESSORE Dl REGISTRO
      SHIM Genuine Lamborghini - New (to order)
      # 033
      MPN: 0023002142
      SHIM
      SPESSORE Dl REGISTRO
      SHIM Genuine Lamborghini - New (to order)
