lamborghini diablo roadster (1998) gearbox control tower parts diagram

24.01.00 - Gearbox Control Tower

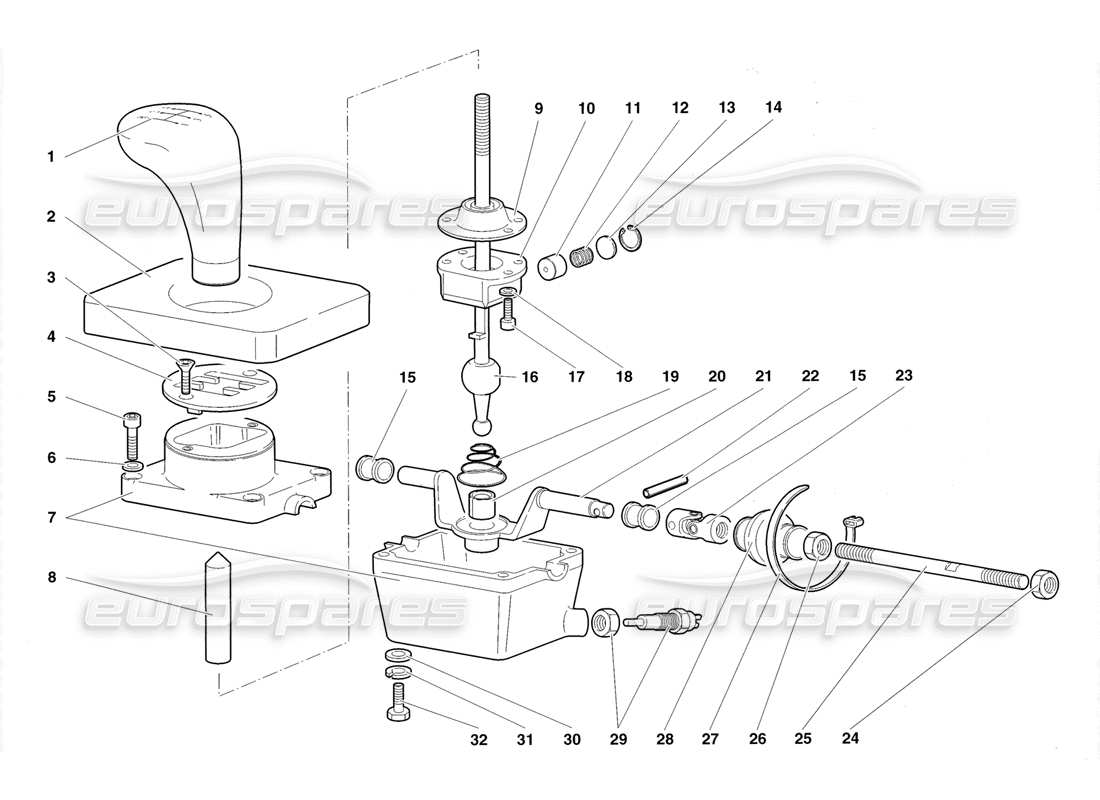

Lamborghini Diablo Roadster (1998) Gearbox Control Tower Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 0024005195
    KNOB
    from £363.15
    from £363.15
    Gear Lever Knob Genuine Lamborghini - New (to order)
    # 002
    MPN: 002431785
    FLEX PAD
    SPESSORE IN GOMMA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 003
    MPN: 008740613
    SCREW
    VITE
    from £0.53
    from £0.53
    STAINLESS STEEL SCREW M6X1X14 UNI 5933 Genuine Lamborghini - New In stock
    # 004
    MPN: 002433874
    PLATE
    PIASTRADISELEZIONE
    from £734.94
    from £734.94
    GEAR LEVER SELECTOR Genuine Lamborghini - New (to order)
    # 005
    MPN: 008700804
    SCREW
    VITE
    from £1.03
    from £1.03
    SCREW 8X1.5X25 5931 8G ZG Genuine Lamborghini - New (to order)
    # 006
    MPN: 008410810
    WASHER
    RONDELLA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 007
    MPN: 240132003
    CASE
    SCATOLA
    from £1,028.10
    from £1,028.10
    GEARBOX LEVER COMPLETE Genuine Lamborghini - New (to order)
    # 008
    MPN: 002438011
    ADAPTER KNOB
    ADATTATORE POMELLO
    from £25.00
    from £25.00
    ADATT.X POM.LEVA COM.CAMB Genuine Lamborghini - New (to order)
    # 009
    MPN: 002433043
    BOOT
    CUFFIA
    from £100.52
    from £100.52
    GEAR LEVER CAP Genuine Lamborghini - New (to order)
    # 010
    MPN: 002434091
    BALL SOCKFT
    SEDE SFERICA
    from £151.73
    from £151.73
    GEAR LEVER BALL SEAT Genuine Lamborghini - New (to order)
    # 011
    MPN: 002427202
    CYLINDER
    CILINDRO
    from £53.57
    from £53.57
    GEAR LEVER CYLINDER Genuine Lamborghini - New (to order)
    # 012
    MPN: 002432167
    SPRING
    MOLLA
    from £7.63
    from £7.63
    GEAR LEVER CYLINDER SPRING Genuine Lamborghini - New (to order)
    # 013
    MPN: 002427204
    PLATE
    Piastrina
    from £1.02
    from £1.02
    RETAINER Genuine Lamborghini - New In stock
    # 014
    MPN: 008572201
    RETAINER RING
    ANELLO RITEGNO
    from £0.54
    from £0.54
    O-RING I 22 UNI 3654 Genuine Lamborghini - New In stock
    # 015
    MPN: 002433020
    BUSHING
    BOCCOLA
    from £20.24
    from £20.24
    CAMSHAFT SLIDING BUSH Genuine Lamborghini - New (to order)
    # 016
    MPN: 002433008
    LEVER
    LEVA
    from £841.55
    from £841.55
    GEAR LEVER Genuine Lamborghini - New (to order)
    # 017
    MPN: 008700646
    SCREW
    VITE
    from £0.53
    from £0.53
    SCREW M6X12 UNI 5931/8G/ZD Genuine Lamborghini - New (to order)
    # 018
    MPN: 008410602
    WASHER
    RONDELLA
    from £27.52
    from £27.52
    WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
    # 019
    MPN: 002429160
    SPRING
    MOLLA
    from £96.84
    from £96.84
    GEAR LEVER SPRING Genuine Lamborghini - New In stock
    # 020
    MPN: 002427207
    BUSHING
    BOCCOLA
    from £202.32
    from £202.32
    GEAR LEVER BUSHING Genuine Lamborghini - New (to order)
    # 021
    MPN: 002429161
    SHAFT
    ALBERO
    from £191.95
    from £191.95
    GEAR LEVER SHAFT Genuine Lamborghini - New (to order)
    # 022
    MPN: 008900305
    PIN
    SPINA
    from £0.54
    from £0.54
    ELASTIC PIN 3X24 DIN1481 Genuine Lamborghini - New In stock
    # 023
    MPN: 410711615
    JOINT
    RIGHT JOINT
    from £655.41
    from £655.41
    RH THREADED JOINT Genuine Lamborghini - New (to order)
    # 025
    MPN: 002434472
    TIE ROD
    TIRANTE
    from £24.59
    from £24.59
    GEARBOX TIEROD Genuine Lamborghini - New (to order)
    # 027
    MPN: 008830305
    STRAP
    FASCETTA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 028
    MPN: 002434614
    BOOT
    CUFFIA
    BOOT Genuine Lamborghini - New (to order)
    # 029
    MPN: 002408637
    SWITCH
    INTERRUTTORE RETROMARCIA
    from £73.80
    from £73.80
    SWITCH Genuine Lamborghini - New (to order)
    # 030
    MPN: 008400801
    WASHER
    RONDELLA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 031
    MPN: 008410806
    WASHER
    RONDELLA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 032
    MPN: N01029315
    SCREW
    VITE
    from £0.82
    from £0.82
    HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
