25.01.00 - Driveshafts and Propeller Shaft

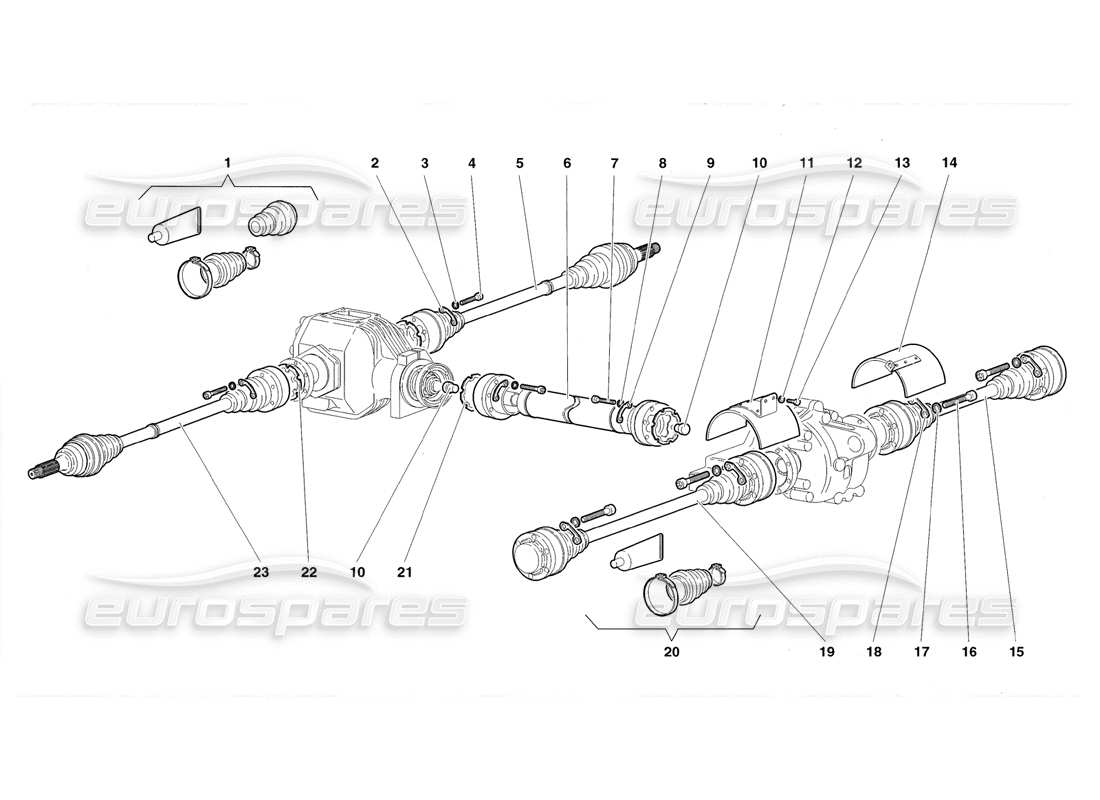

Lamborghini Diablo Roadster (1998) Driveshafts and Propeller Shaft Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 002534887
BOOT KIT
USE 95860404
from £142.67
from £142.67
# 002
MPN: 002534274
PLATE
(Valid for 4WD only) PIASTRINA
from £5.41
from £5.41
# 003
MPN: 008410810
WASHER
(Valid for 4WD only) RONDELLA
Supersession
Supersession
# 004
MPN: 008700802
SCREW
(Valid for 4WD only) VITE
Supersession
Supersession
# 005
MPN: 002534283
RIGHT HALF SHAFT
(Valid for 4WD only) SEMIASSE DESTRO ANT.
from £1,720.41
from £1,720.41
# 006
MPN: 002234277
propeller shaft
(Valid for 4WD only) ALBERO TRASMISSIONE
from £1,828.73
from £1,828.73
# 007
MPN: 008700802
SCREW
(Valid for 4WD only) VITE
Supersession
Supersession
# 008
MPN: 008410810
WASHER
(Valid for 4WD only) RONDELLA
Supersession
Supersession
# 009
MPN: 002234273
PLATE
(Valid for 4WD only) PIASTRINA
from £5.65
from £5.65
# 010
MPN: 002334235
RUBBER PAD
(Valid for 4WD only) TAMPONE GOMMA
from £7.13
from £7.13
# 011
MPN: 002530901
SHIELD
PROTEZIONE
from £114.42
from £114.42
# 012
MPN: 008410602
WASHER
RONDELLA
from £28.66
from £28.66
# 013
MPN: 008700644
SCREW
VITE
Supersession
Supersession
# 014
MPN: 002530896
SHIELD
PROTEZIONE
from £393.41
from £393.41
# 015
MPN: 0025001631
RIGHT HALF SHAFT
RIGHT REAR HALF SHAFT
# 016
MPN: 008701008
SCREW
VITE
Supersession
Supersession
# 017
MPN: 008411011
WASHER
RONDELLA
from £0.50
from £0.50
# 018
MPN: 002533290
PLATE
Piastrina
from £8.13
from £8.13
# 019
MPN: 0025001630
LEFT HALF SHAFT
REAR LEFT HALF AXLE
# 020
MPN: 002537315
BOOT KIT
KIT CUFFIA
from £88.31
from £88.31
# 021
MPN: 002234523
GASKET
(Valid for 4WD only) GUARNIZIONE
from £23.00
from £23.00
# 022
MPN: 002534666
GASKET
(Valid for 4WD only) GUARNIZIONE
from £42.70
from £42.70
# 023
MPN: 002534284
LEFT HALF SHAFT
(Valid for 4WD only) SEMIASSE SINISTRO ANT.
from £515.71
from £515.71
