lamborghini diablo roadster (1998) electrohydraulic abs ecu parts diagram

3132.02.00 - Electrohydraulic ABS ECU

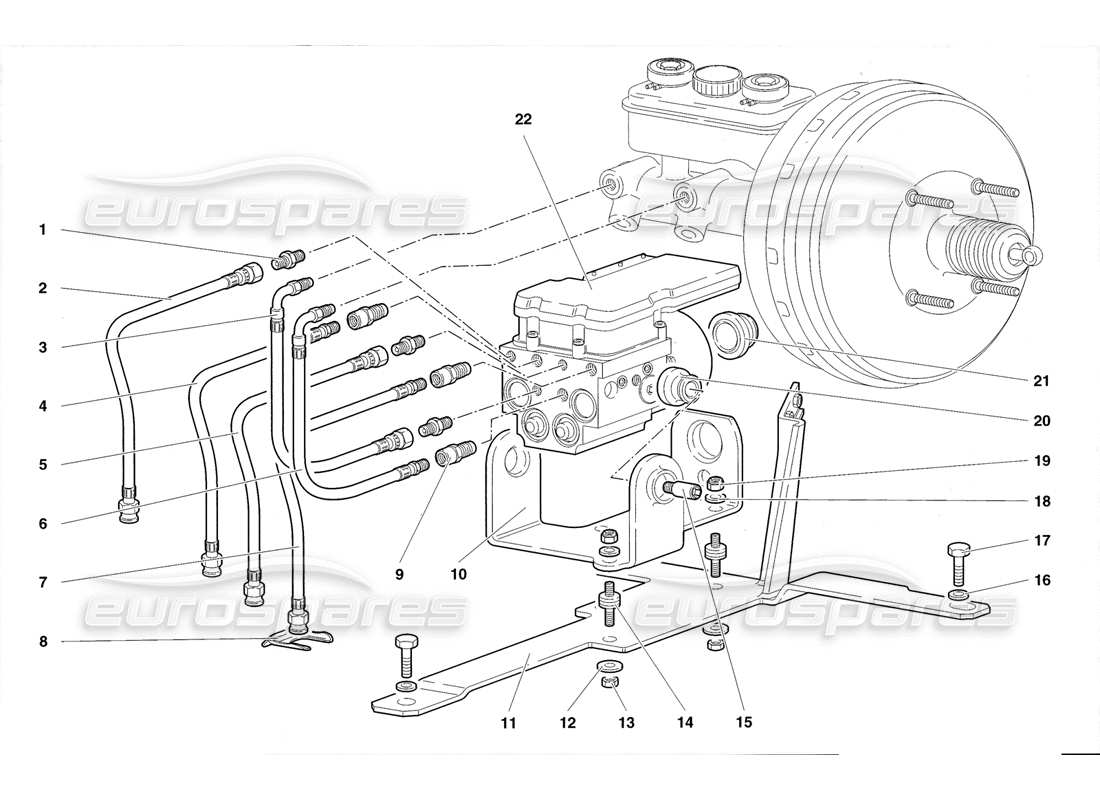

Lamborghini Diablo Roadster (1998) Electrohydraulic ABS ECU Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 0031001088
CONNECTION
RACCORDO
CONNECTOR Genuine Lamborghini - New (to order)
# 002
MPN: 0032001097
FLEX. HOSE
TUBO FLESSIBILE
from £34.16
from £34.16
HOSE Genuine Lamborghini - New (to order)
# 002
MPN: 0032001508
FLEX. HOSE
(Valid for U.K.1998) TUBO FLESSIBILE
from £59.06
from £59.06
HOSE Genuine Lamborghini - New (to order)
# 003
MPN: 0032001096
FLEX. HOSE
TUBO FLESSIBILE
from £89.49
from £89.49
HOSE Genuine Lamborghini - New (to order)
# 003
MPN: 0032001504
FLEX. HOSE
(Valid for U.K.1998) TUBO FLESSIBILE
from £50.58
from £50.58
HOSE Genuine Lamborghini - New (to order)
# 004
MPN: 0032001101
FLEX. HOSE
TUBO FLESSIBILE
from £35.58
from £35.58
HOSE Genuine Lamborghini - New (to order)
# 004
MPN: 0032001507
FLEX. HOSE
(Valid for U.K.1998) TUBO FLESSIBILE
from £43.62
from £43.62
HOSE Genuine Lamborghini - New (to order)
# 005
MPN: 0031001091
FLEX. HOSE
TUBO FLESSIBILE
from £32.84
from £32.84
HOSE Genuine Lamborghini - New (to order)
# 005
MPN: 0031001506
FLEX. HOSE
(Valid for U.K.1998) TUBO FLESSIBILE
from £59.06
from £59.06
HOSE Genuine Lamborghini - New (to order)
# 006
MPN: 0031001090
FLEX. HOSE
TUBO FLESSIBILE
from £32.84
from £32.84
ABS PUMP-ECU PIPE Genuine Lamborghini - New (to order)
# 006
MPN: 0031001503
FLEX. HOSE
(Valid for U.K.1998) TUBO FLESSIBILE
from £59.06
from £59.06
HOSE Genuine Lamborghini - New (to order)
# 007
MPN: 0031001094
FLEX. HOSE
TUBO FLESSIBILE
from £62.43
from £62.43
HOSE Genuine Lamborghini - New (to order)
# 007
MPN: 0031001505
FLEX. HOSE
(Valid for U.K.1998) TUBO FLESSIBILE
from £43.62
from £43.62
HOSE Genuine Lamborghini - New (to order)
# 008
MPN: 003130840
PLATE
Piastrina
from £16.77
from £16.77
PIPE LOCK PLATE Genuine Lamborghini - New (to order)
# 009
MPN: 410614185
CONNECTION
RACCORDO
from £26.51
from £26.51
M12 FITTING Genuine Lamborghini - New (to order)
# 010
MPN: 0031001291
BRACKET
STAFFA
BRACKET Genuine Lamborghini - New (to order)
# 011
MPN: 0031001083
SUPPORT
SUPPORTO
from £110.69
from £110.69
CHASSIS MOUNT ON CHASSIS Genuine Lamborghini - New (to order)
# 011
MPN: 0031001552
SUPPORT
(Valid for U.K.1998) SUPPORTO
from £63.02
from £63.02
ABS ECU BRACKET Genuine Lamborghini - New (to order)
# 012
MPN: WHT002961
WASHER
RONDELLA
from £0.53
from £0.53
This part replaces part number 008400607
WASHER Genuine Lamborghini - New In stock
# 013
MPN: 008200606
NUT
DADO
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 014
MPN: 008920602
ELASTIC SUPPORT
SUPPORTO ELASTICO
from £8.91
from £8.91
RUBBER SUPPORT D18X8.5 FIL.M6X 10/16 Genuine Lamborghini - New (to order)
# 015
MPN: 0031001000
PIN
PERNO
PIN Genuine Lamborghini - New (to order)
# 016
MPN: 008410819
WASHER
RONDELLA
from £1.46
from £1.46
SNAP RING D.8 DIN 7980 Genuine Lamborghini - New (to order)
SNAP RING D.8 DIN 7980 Genuine Lamborghini - New (other) In stock
WASHER
# 017
MPN: N01029315
SCREW
VITE
from £0.83
from £0.83
HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
# 018
MPN: 008410612
WASHER
RONDELLA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 019
MPN: 008200604
NUT
DADO
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 020
MPN: 0031001001
ELASTIC SUPPORT
SUPPORTO ELASTICO
FLEXIBLE SUPPORT Genuine Lamborghini - New (to order)
# 021
MPN: 0031000999
ELASTIC SUPPORT
SUPPORTO ELASTICO
FLEXIBLE SUPPORT Genuine Lamborghini - New (to order)
# 022
MPN: 0031000998
ABS ECU
CENTRALINA ABS
from £3,073.51
from £3,073.51
ABS HYDRAULIC ECU Genuine Lamborghini - New (to order)
ABS HYDRAULIC ECU Genuine Lamborghini - Used In stock
