31.01.00 - Front Brakes

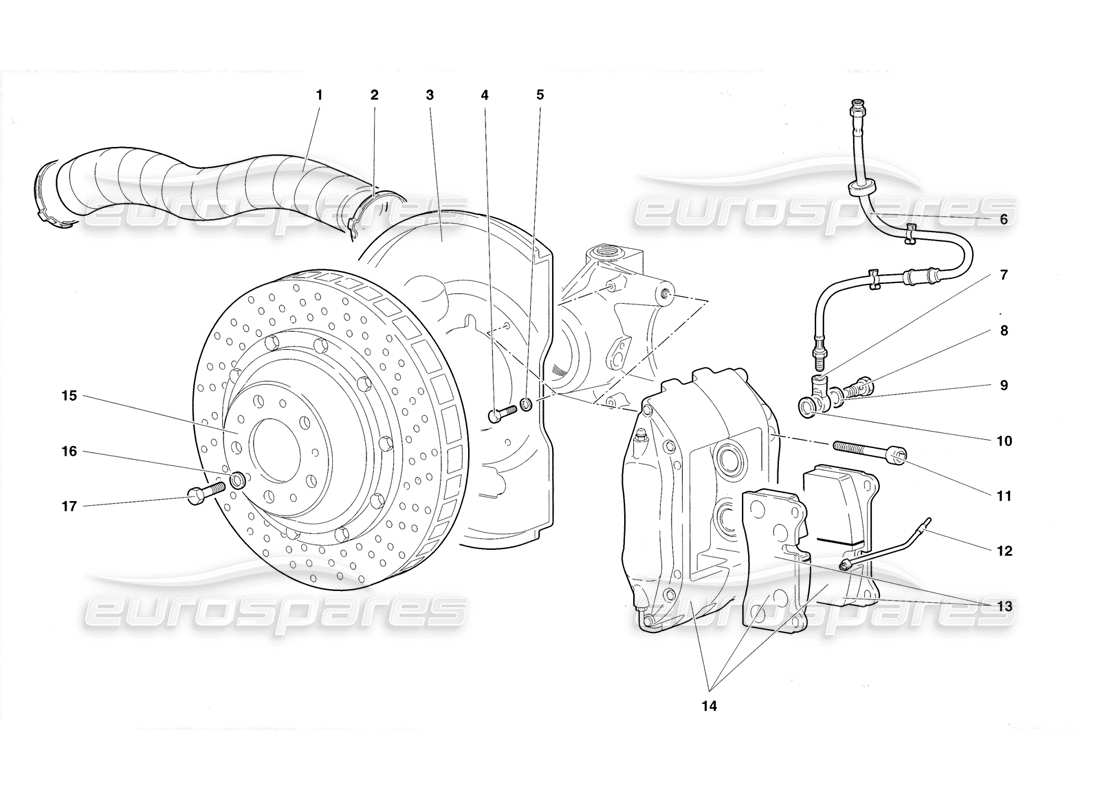

Lamborghini Diablo Roadster (1998) Front Brakes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 009453133
FLEX. HOSE
TUBO FLESSIBILE
from £153.80
from £153.80
# 002
MPN: 008837501
STRAP
FASCETTA
from £9.60
from £9.60
# 003
MPN: 0031001180
LEFT CONVEYOR
CONVOGLIATORE SX
from £256.20
from £256.20
# 003
MPN: 0031001183
RIGHT CONVEYOR
CONVOGLIATORE DX
from £140.91
from £140.91
# 004
MPN: N01020717
SCREW
VITE
from £0.47
from £0.47
This part replaces part number 008100504
# 005
MPN: 008410503
WASHER
RONDELLA
Supersession
Supersession
# 006
MPN: 003229882
FLEX. HOSE
TUBO FLESSIBILE
from £104.89
from £104.89
# 007
MPN: 003113904
CONNECTION
RACCORDO
from £92.09
from £92.09
# 008
MPN: 003113907
SCREW
Vite forata
from £17.17
from £17.17
# 009
MPN: 003113905
WASHER
RONDELLA
from £1.55
from £1.55
# 010
MPN: 003113906
WASHER
RONDELLA
from £11.68
from £11.68
# 011
MPN: 008701224
SCREW
VITE
from £10.03
from £10.03
# 012
MPN: 003135643
ELECT CABLE
CAVO ELETTRICO
from £7.10
from £7.10
# 013
MPN: 0032000561
BRAKE PADS KIT
BRAKE PADS KIT
from £625.15
from £625.15
# 014
MPN: 0031001456
LEFT BRAKE CALIPER
PINZA FRENI SX
from £708.06
from £708.06
# 014
MPN: 0031001457
RIGHT BRAKE CALIP.
PINZA FRENI DX
from £708.06
from £708.06
# 015
MPN: 0031016759
BRAKE DISC
(355 mm diameter)
from £1,452.60
from £1,452.60
# 016
MPN: 008410810
WASHER
RONDELLA
Supersession
Supersession
# 017
MPN: N01029315
SCREW
VITE
from £0.80
from £0.80
