lamborghini diablo roadster (1998) rear brakes parts diagram

32.01.00 - Rear Brakes

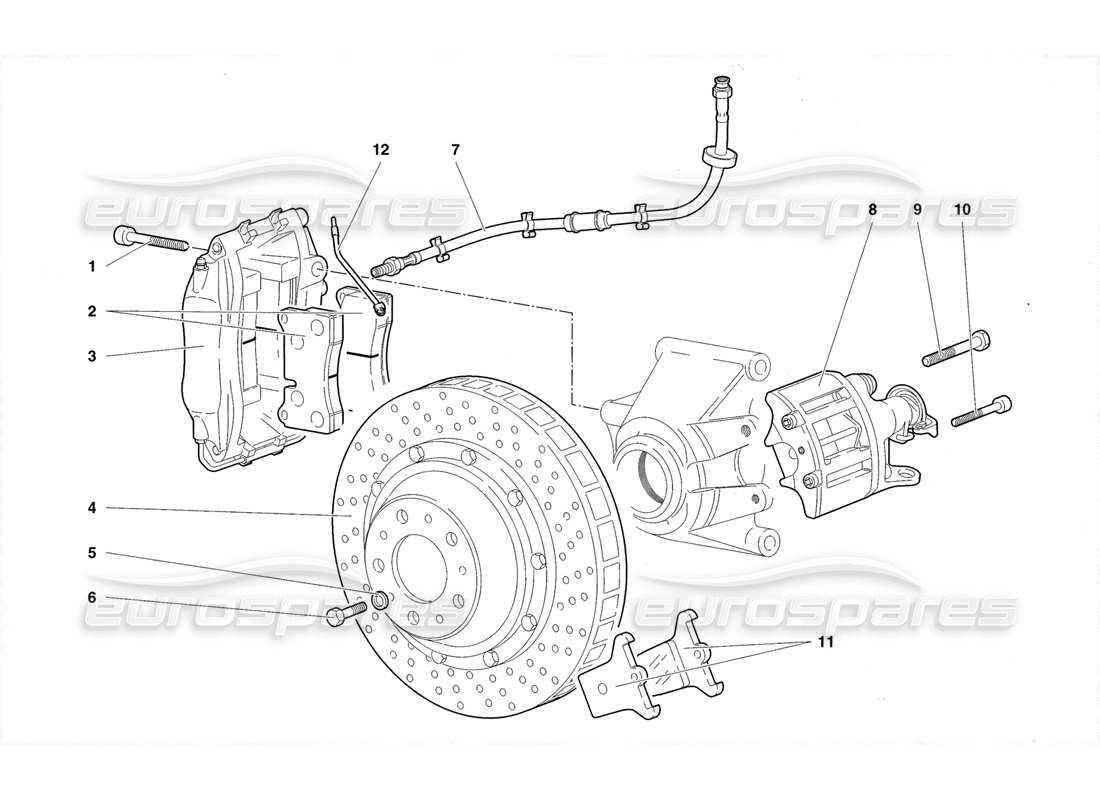

Lamborghini Diablo Roadster (1998) Rear Brakes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 008701224
SCREW
VITE
from £10.03
from £10.03
# 002
MPN: 0032000561
BRAKE PADS KIT
BRAKE PADS KIT
from £625.15
from £625.15
# 003
MPN: 0032001458
LEFT BRAKE CALIPER
PINZAFRENISX
from £802.58
from £802.58
# 003
MPN: 0032001459
RIGHT BRAK. CALIPER
PINZAFRENIDX
from £802.58
from £802.58
# 004
MPN: 0032016285
BRAKE DISC
DISCO FRENO
from £1,357.50
from £1,357.50
# 005
MPN: 008410810
WASHER
RONDELLA
Supersession
Supersession
# 006
MPN: N01029315
SCREW
VITE
from £0.80
from £0.80
# 007
MPN: 003229882
FLEX. HOSE
TUBO FLESSIBILE
from £104.89
from £104.89
# 008
MPN: 0033001460
LEFT BRAKE CALIPER
PINZAFRENISX
Supersession
Supersession
# 008
MPN: 0033001461
RIGHT BRAK. CALIPER
PINZAFRENI DX
# 009
MPN: WHT002636
SCREW
VITE
from £4.80
from £4.80
# 010
MPN: WHT003311
SCREW
VITE
from £13.92
from £13.92
# 011
MPN: 410615115D
HAND BRAKE PAD
(4 pcs. required )
from £31.23
from £31.23
# 012
MPN: 003135643
ELECT CABLE
CAVO ELETTRICO
from £7.10
from £7.10
