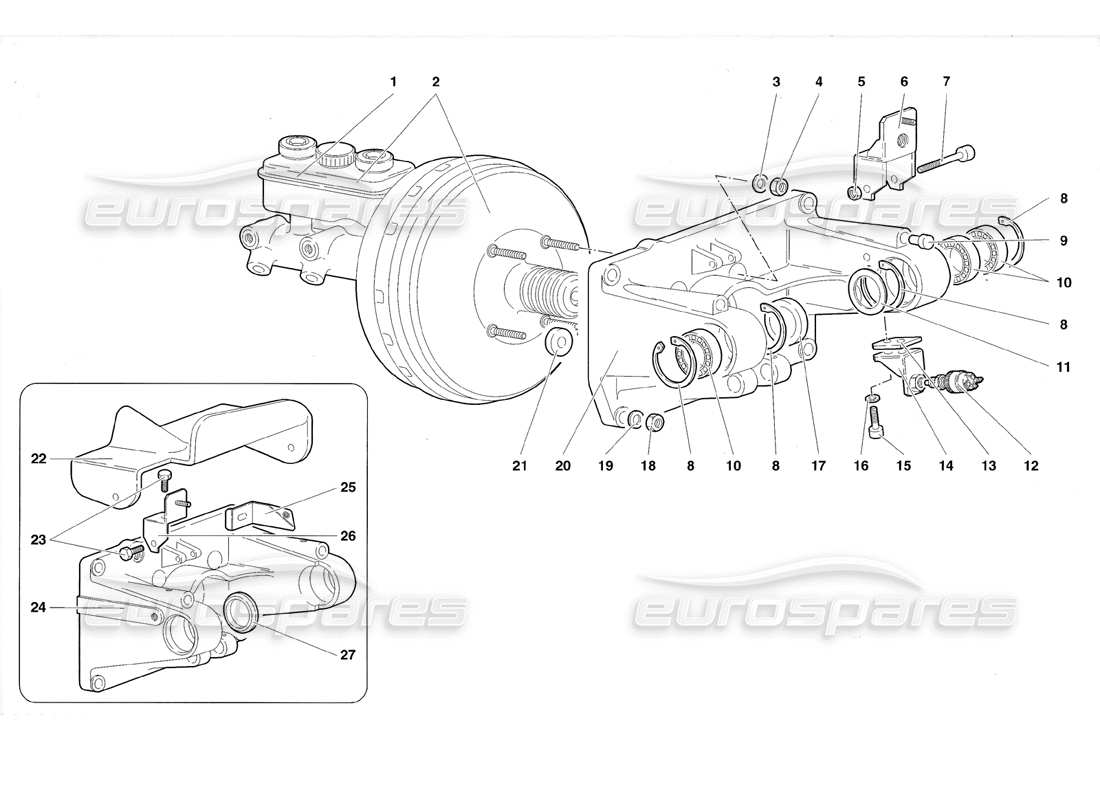

42.02.00 - Pedal Mounting

Lamborghini Diablo Roadster (1998) Pedal Mounting Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 004236817
    BRAKE-SERVO RESER.
    BRAKE SERVO RESERVOIR
    from £134.03
    from £134.03
    # 002
    MPN: 0042001085
    BRAKE-SERVO
    SERVOFRENO
    from £2,495.00
    from £2,495.00
    # 003
    MPN: 008400801
    WASHER
    RONDELLA
    Supersession
    Supersession
    # 004
    MPN: 008200804
    NUT
    DADO
    from £0.71
    from £0.71
    # 005
    MPN: 008400606
    WASHER
    DADO
    Supersession
    Supersession
    # 006
    MPN: 004231515
    SUPPORT
    SUPPORTO
    from £26.49
    from £26.49
    # 007
    MPN: 008700644
    SCREW
    VITE
    Supersession
    Supersession
    # 008
    MPN: 008573701
    RETAINER RIN§
    ANELLO RITEGNO
    from £0.53
    from £0.53
    # 009
    MPN: 410721381
    PEDAL STOP
    from £51.54
    from £51.54
    # 010
    MPN: 008502513
    BEARING
    CUSCINETTO
    from £22.97
    from £22.97
    # 011
    MPN: 008402507
    WASHER
    RONDELLA
    from £17.59
    from £17.59
    # 012
    MPN: 0042001192
    ABS SWITCH
    INTERRUTTORE ABS
    from £15.22
    from £15.22
    # 013
    MPN: 0042001530
    SPACER
    DISTANZIALE
    # 014
    MPN: 0042001489
    SUPPORT
    SUPPORTO
    from £20.20
    from £20.20
    # 015
    MPN: 008700644
    SCREW
    VITE
    Supersession
    Supersession
    # 016
    MPN: 008400606
    WASHER
    RONDELLA
    Supersession
    Supersession
    # 017
    MPN: 004230923
    SPACER
    DISTANZIALE
    from £17.96
    from £17.96
    # 018
    MPN: 008200804
    NUT
    DADO
    from £0.71
    from £0.71
    # 019
    MPN: 008400801
    WASHER
    RONDELLA
    Supersession
    Supersession
    # 020
    MPN: 004233483
    PEDALS SUPPORT
    SUPPORTO PEDALIERA
    from £479.10
    from £479.10
    # 021
    MPN: 0042000931
    SPACER
    DISTANZIALE
    from £22.31
    from £22.31
    # 022
    MPN: 004332774
    SHIELD
    (Valid for U.K.1998) PROTEZIONE
    # 023
    MPN: 008700644
    SCREW
    (Valid for U.K.1998) VITE
    Supersession
    Supersession
    # 024
    MPN: 004233485
    PEDALS SUPPORT
    (Valid for U.K.1998) SUPPORTO PEDALIERA
    from £704.75
    from £704.75
    # 025
    MPN: 004234610
    SUPPORT
    (Valid for U.K.1998) SUPPORTO
    # 026
    MPN: 004232996
    PLATE
    (Valid for U.K.1998) PIASTRINA
    from £28.65
    from £28.65
    # 027
    MPN: 004232777
    SPACER
    (Valid for U.K.1998) DISTANZIALE
