45.01.00 - Climate Control

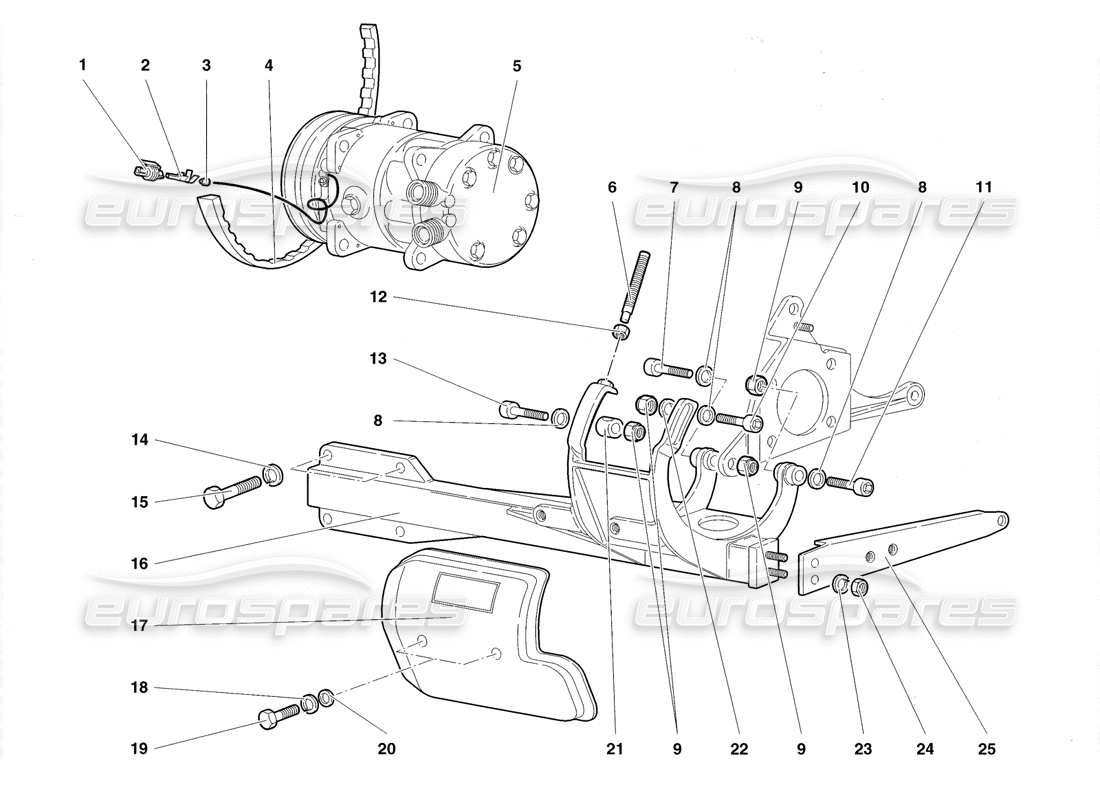

Lamborghini Diablo Roadster (1998) Climate Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 006136453
    CONNECTION
    CONNESSIONE
    # 002
    MPN: 006136454
    Key
    LINGUETTA
    # 003
    MPN: 006136447
    RUBBER
    GOMMA
    # 004
    MPN: 004534071
    BELT
    CINGHIA
    from £80.33
    from £80.33
    # 005
    MPN: 004535409
    AIR COMPRESSOR
    COMPRESSORE
    from £903.73
    from £903.73
    # 006
    MPN: 008700841
    SCREW
    VITE
    from £1.59
    from £1.59
    # 007
    MPN: 008701008
    SCREW
    VITE
    Supersession
    Supersession
    # 008
    MPN: WHT000768
    WASHER
    from £1.21
    from £1.21
    This part replaces part number 008410806 - and 1 more. Click to view details
    # 009
    MPN: 008201008
    NUT
    DADO
    from £0.55
    from £0.55
    # 010
    MPN: 008701017
    SCREW
    VITE .
    from £0.66
    from £0.66
    # 011
    MPN: 008701014
    SCREW
    VITE
    from £0.54
    from £0.54
    # 012
    MPN: 008200801
    NUT
    DADO
    Supersession
    Supersession
    # 013
    MPN: 008701020
    SCREW
    VITE
    from £1.06
    from £1.06
    # 014
    MPN: 008410810
    WASHER
    RONDELLA
    Supersession
    Supersession
    # 015
    MPN: 008100830
    SCREW
    VITE
    from £0.53
    from £0.53
    # 016
    MPN: 004535242
    SUPPORT
    SUPPORTO
    from £344.09
    from £344.09
    # 017
    MPN: 004535934
    SHIELD
    PROTEZIONE
    from £220.55
    from £220.55
    # 018
    MPN: 008410602
    WASHER
    RONDELLA
    from £28.28
    from £28.28
    # 019
    MPN: 008100601
    SCREW
    VITE
    Supersession
    Supersession
    # 020
    MPN: 008400606
    WASHER
    RONDELLA
    Supersession
    Supersession
    # 021
    MPN: 004529646
    SPACER
    DISTANZIALE
    from £15.59
    from £15.59
    # 022
    MPN: 008401028
    WASHER
    RONDELLA
    from £3.65
    from £3.65
    # 023
    MPN: 008410810
    WASHER
    RONDELLA
    Supersession
    Supersession
    # 024
    MPN: 008200801
    NUT
    DADO
    Supersession
    Supersession
    # 025
    MPN: 004529645
    TIE ROD
    TIRANTE
    from £23.10
    from £23.10
    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
