45.04.00 - Climate Control

Lamborghini Diablo Roadster (1998) Climate Control Parts Diagram

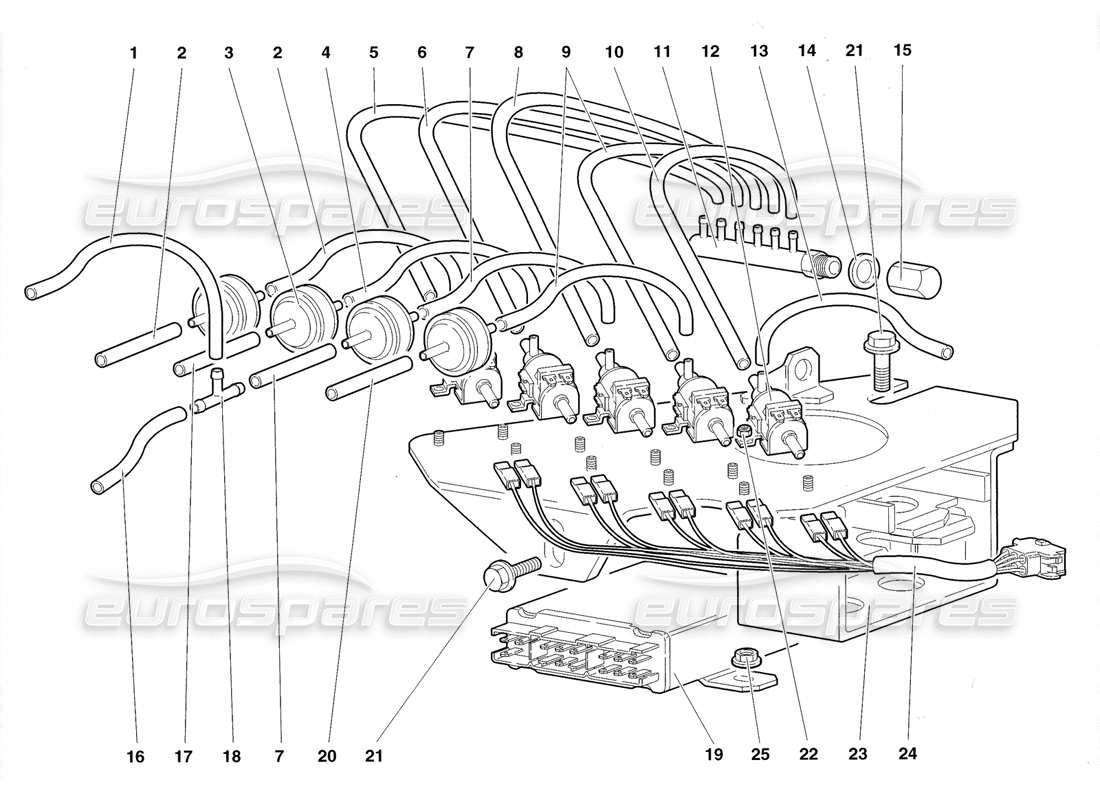

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 009414649
FLEX. HOSE
TUBO FLESSIBILE
from £87.48
from £87.48
# 002
MPN: 009414643
FLEX. HOSE
TUBO FLESSIBILE
from £87.48
from £87.48
# 003
MPN: 009414633
VALVE
VALVOLA
from £102.81
from £102.81
# 004
MPN: 009414645
FLEX. HOSE
TUBO FLESSIBILE
from £87.48
from £87.48
# 005
MPN: 009414642
FLEX. HOSE
TUBO FLESSIBILE
from £87.48
from £87.48
# 006
MPN: 009414644
FLEX. HOSE
TUBO FLESSIBILE
from £87.48
from £87.48
# 007
MPN: 009414648
FLEX. HOSE
TUBO FLESSIBILE
from £87.48
from £87.48
# 008
MPN: 009414647
FLEX. HOSE
TUBO FLESSIBILE
from £87.48
from £87.48
# 009
MPN: 009414651
FLEX. HOSE
TUBO FLESSIBILE
from £87.48
from £87.48
# 010
MPN: 009414653
FLEX. HOSE
TUBO FLESSIBILE
from £87.48
from £87.48
# 011
MPN: 004621565
CONNECTION
RACCORDO
from £50.58
from £50.58
# 012
MPN: 077906283
ELECTRO-VALVE
ELETTROVALVOLA
from £34.59
from £34.59
# 013
MPN: 009414654
FLEX. HOSE
TUBO FLESSIBILE
from £87.48
from £87.48
# 014
MPN: 008401008
WASHER
RONDELLA
Supersession
Supersession
# 015
MPN: 009414606
PLUG
TAPPO
from £44.53
from £44.53
# 016
MPN: 009414650
FLEX. HOSE
TUBO FLESSIBILE
from £87.48
from £87.48
# 017
MPN: 009414646
FLEX. HOSE
TUBO FLESSIBILE
from £87.48
from £87.48
# 018
MPN: 007014169
CONNECTION
RACCORDO
from £15.47
from £15.47
# 019
MPN: 004526659
ELECTRONIC C. UNIT
CENTRALINA CLIMATIZZAZIONE
from £2,995.99
from £2,995.99
# 020
MPN: 009414652
FLEX. HOSE
TUBO FLESSIBILE
from £87.48
from £87.48
# 021
MPN: 008700663
SCREW
VITE
from £0.53
from £0.53
# 022
MPN: N01100412
NUT
DADO
from £0.77
from £0.77
# 023
MPN: 009414628
SUPPORT
SUPPORTO
from £164.58
from £164.58
# 024
MPN: 006130618
ELECT CABLE
CABLAGGIO ELETTROV.
from £75.62
from £75.62
# 025
MPN: N0211963
NUT
DADO
from £0.53
from £0.53
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
