lamborghini diablo roadster (1998) front suspension parts diagram

51.02.00 - Front Suspension

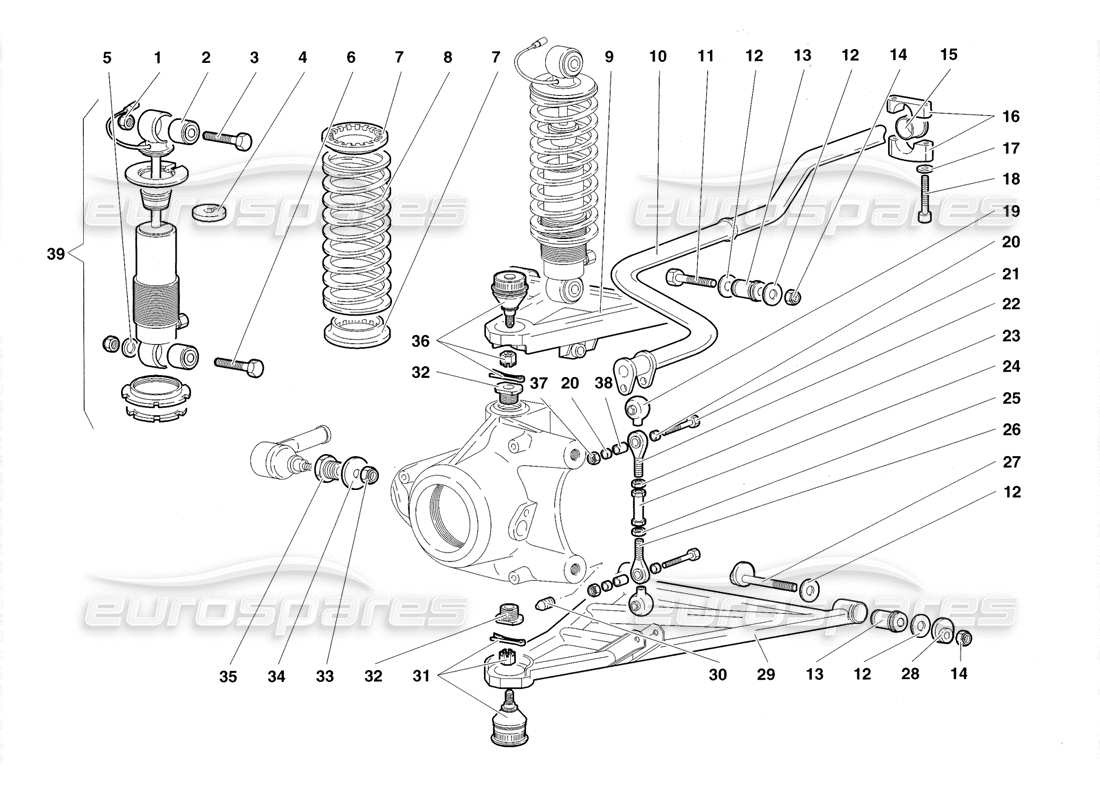

Lamborghini Diablo Roadster (1998) Front Suspension Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: WHT003355
        NUT
        DADO
        from £13.28
        from £13.28
        CLAMPING NUT Genuine Lamborghini - New In stock
        # 002
        MPN: 410512383
        RESILIENT BUSHING
        from £356.24
        from £356.24
        EXTENDIBLE 012 X 042X 46 X 35 Genuine Lamborghini - New In stock
        # 003
        MPN: 008101269
        SCREW
        VITE
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 004
        MPN: 005134315
        SPACER
        DISTANZIALE
        from £22.64
        from £22.64
        SHOCK ABSORBER TOP SHIM Genuine Lamborghini - New (to order)
        # 005
        MPN: 008401234
        WASHER
        RONDELLA
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 006
        MPN: 005133229
        SCREW
        VITE
        from £4.78
        from £4.78
        FRONT SHOCK ABSORBERBOLTS Genuine Lamborghini - New (to order)
        # 007
        MPN: 410512385
        RUBBER RING
        from £32.34
        from £32.34
        SHOCK ABSORBER BULKHEAD Genuine Lamborghini - New (to order)
        # 008
        MPN: 005133618
        SPRING
        MOLLA
        from £124.79
        from £124.79
        FRONT SUSPENSION SPRING Genuine Lamborghini - New (to order)
        # 009
        MPN: 005133344
        ARM
        BRACCIO SUPERIORE DX
        from £518.36
        from £518.36
        RH UPPER WISHBONE Genuine Lamborghini - New (to order)
        RH UPPER WISHBONE Genuine Lamborghini - Used In stock
        # 009
        MPN: 005133345
        ARM
        BRACCIO SUPERIORE SX
        from £544.51
        from £544.51
        LH UPPER WISHBONE Genuine Lamborghini - New (to order)
        LH UPPER WISHBONE Genuine Lamborghini - Used In stock
        # 010
        MPN: 005134057
        TORSION BAR
        (Valid for 2WD only) BARRATORSIONE
        from £279.42
        from £279.42
        FRONT TORSION BAR Genuine Lamborghini - New (to order)
        # 010
        MPN: 005134392
        TORSION BAR
        BARRATORSIONE
        from £592.82
        from £592.82
        ROLL BAR Genuine Lamborghini - New (to order)
        # 011
        MPN: 008101269
        SCREW
        VITE
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 012
        MPN: 005133488
        SPACER
        DISTANZIALE 1,5 MM
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 012
        MPN: 410407295
        SPACER
        DISTANZIALE 1 MM
        from £2.73
        from £2.73
        SPACER RING Genuine Lamborghini - New (to order)
        # 012
        MPN: 410407295B
        SPACER
        DISTANZIALE 2 MM
        from £2.39
        from £2.39
        SPACER RING Genuine Lamborghini - New In stock
        # 012
        MPN: 410407295C
        SPACER
        DISTANZIALE 2,5 MM
        from £2.64
        from £2.64
        SPACER RING Genuine Lamborghini - New In stock
        # 012
        MPN: 410407295D
        SPACER
        DISTANZIALE 3 MM
        from £17.99
        from £17.99
        SPACER RING Genuine Lamborghini - New In stock
        # 013
        MPN: 008921206
        RESILIENT BUSHING
        BOCCOLA ELASTICA
        from £29.93
        from £29.93
        FLANBLOC Genuine Lamborghini - New In stock
        # 014
        MPN: WHT003355
        NUT
        DADO
        from £13.28
        from £13.28
        CLAMPING NUT Genuine Lamborghini - New In stock
        # 015
        MPN: 005238302
        BUSHING
        BOCCOLA
        from £88.31
        from £88.31
        This part replaces part number 005230804
        TORSION BAR BUSHING Genuine Lamborghini - New In stock
        # 016
        MPN: 005230258
        RETAINER
        CAVALLOTTO
        from £195.68
        from £195.68
        TORSION BAR BRACKET ASSEMBLY Genuine Lamborghini - New (to order)
        # 017
        MPN: 008410602
        WASHER
        RONDELLA
        from £27.52
        from £27.52
        WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
        # 018
        MPN: WHT002960
        SCREW
        VITE
        from £5.31
        from £5.31
        SCREW Genuine Lamborghini - New (to order)
        # 019
        MPN: 005109714
        BOOT
        CUFFIA
        from £16.55
        from £16.55
        BOOT Genuine Lamborghini - New In stock
        # 020
        MPN: 005227297
        BUSHING
        BOCCOLA
        from £18.21
        from £18.21
        BALL JOINT BUSHING Genuine Lamborghini - New (to order)
        # 021
        MPN: 008100807
        SCREW
        VITE
        from £0.51
        from £0.51
        SCREW M8X40 UNI 5737/8G ZD Genuine Lamborghini - New In stock
        # 022
        MPN: 417801931A
        BALL JOINT
        GIUNTO SFERICO
        from £160.39
        from £160.39
        This part replaces part number 005206963 - and 1 more. Click to view details
        STRAP JOINT Genuine Lamborghini - New In stock
        # 023
        MPN: 008201035
        NUT
        DADO
        from £0.91
        from £0.91
        M10X1 UNI 5588 8G/Z NUT Genuine Lamborghini - New In stock
        # 024
        MPN: 005209770
        TIE ROD
        TIRANTE
        from £154.04
        from £154.04
        TORSION BAR TIEROD Genuine Lamborghini - New (to order)
        # 025
        MPN: 008201034
        NUT
        DADO
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 026
        MPN: 005227295
        BALL JOINT
        GIUNTO SFERICO
        from £72.47
        from £72.47
        BALL JOINT Genuine Lamborghini - New In stock
        BALL JOINT Eurospares Approved Part - New (to order)
        Alternative (#005206964) BALL JOINT (use 005227295 & 005227298) Genuine Lamborghini - New (to order)
        # 027
        MPN: 410407127A
        BOLT
        SCREW WITH ECCENTRIC
        from £608.71
        from £608.71
        This part replaces part number 005231923
        ECCENTRIC Genuine Lamborghini - New (to order)
        # 028
        MPN: 410407127A
        BOLT
        ECCENTRICO
        from £608.71
        from £608.71
        This part replaces part number 005231923
        ECCENTRIC Genuine Lamborghini - New (to order)
        # 029
        MPN: 005133038
        ARM
        BRACCIO INFERIORE DX
        from £734.08
        from £734.08
        RH LOWER WISHBONE Genuine Lamborghini - New (to order)
        # 029
        MPN: 005133039
        ARM
        BRACCIO INFERIORE SX
        from £734.08
        from £734.08
        LH LOWER WISHBONE Genuine Lamborghini - New (to order)
        # 030
        MPN: 008700606
        SCREW
        VITE
        from £0.50
        from £0.50
        SCREW EI M6X1X10 12KD Genuine Lamborghini - New In stock
        SCREW EI M6X1X10 12KD Genuine Lamborghini - New (other) In stock
        (Valid for June 1992 version) GRAND (dalla 12678)
        # 031
        MPN: 410407361B
        COUPLING
        TESTAASNODO
        from £254.24
        from £254.24
        This part replaces part number 410407361
        LOCATING LINKAGE Genuine Lamborghini - New In stock
        LOCATING LINKAGE Eurospares Approved Part - New In stock
        # 032
        MPN: 410407171C
        BUSHING
        BUSSOLA
        from £407.25
        from £407.25
        This part replaces part number 410407171
        BUSH Genuine Lamborghini - New (to order)
        # 033
        MPN: 008201003
        NUT
        DADO
        from £2.18
        from £2.18
        10X1.25 SELF-LOCKINGNUT Genuine Lamborghini - New (to order)
        # 034
        MPN: WHT000919
        WASHER
        from £9.08
        from £9.08
        WASHER Genuine Lamborghini - New (to order)
        # 035
        MPN: 0051001030
        BUSHING
        BUSSOLA
        BUSHING Genuine Lamborghini - New (to order)
        # 036
        MPN: 410407365
        COUPLING
        TESTAASNODO
        from £127.12
        from £127.12
        JOINT Genuine Lamborghini - New (to order)
        JOINT Eurospares Approved Part - New In stock
        # 037
        MPN: 008200804
        NUT
        DADO
        from £0.71
        from £0.71
        NUT Genuine Lamborghini - New In stock
        # 038
        MPN: 005227298
        BUSHING
        BOCCOLA
        from £11.08
        from £11.08
        TORSION BAR ADAPTER BUSHING Genuine Lamborghini - New In stock
        # 039
        MPN: 005133241
        SHOCK ABSORBER
        AMMORTIZZATORE (LIFTYNG SYS.)
        from £2,585.28
        from £2,585.28
        VEDI SEE KIT 0R1320014 Genuine Lamborghini - New (to order)
