61.01.00 - electrical system

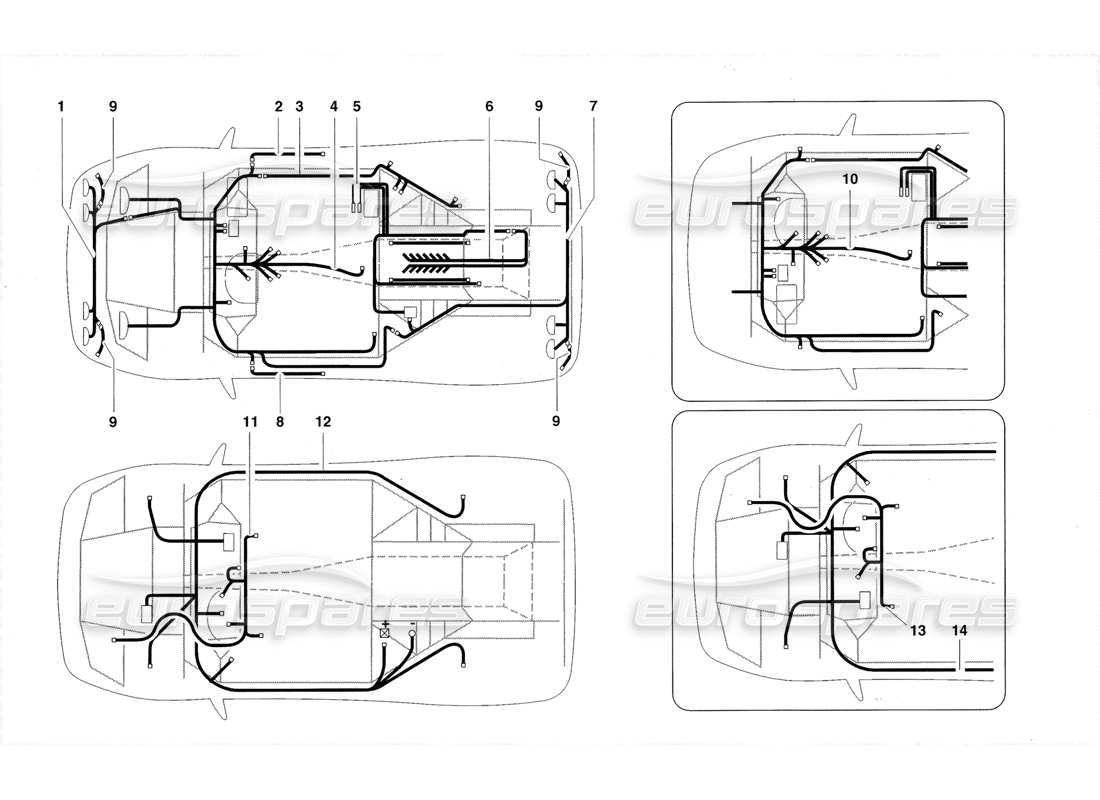

Lamborghini Diablo Roadster (1998) Electrical System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 006138167
CABLE
CABLAGGIO ANT.
from £112.76
from £112.76
# 002
MPN: 006137047
CABLE
RIGHT DOOR WIRING
from £198.99
from £198.99
# 003
MPN: 006138163
CABLE
CABLAGGIO POST. DX
from £203.14
from £203.14
# 004
MPN: 006138158
CABLE
CABLAGGIO CENTRALE
from £3,863.65
from £3,863.65
# 005
MPN: 006138337
CABLE
CABLAGGIO INIEZIONE
from £1,720.41
from £1,720.41
# 006
MPN: 006138160
CABLE
CABLAGGIO MOTORE
from £419.54
from £419.54
# 007
MPN: 006138164
CABLE
CABLAGGIO POST. SX
from £344.91
from £344.91
# 008
MPN: 006137046
CABLE
CABLAGGIO PORTA SX
from £180.33
from £180.33
# 009
MPN: 006138210
CABLE
(Valid for U.S.A.1998) CABLAGGIO SIDE MARKER
from £30.55
from £30.55
# 009
MPN: 006138210
CABLE
(Valid for CANADA.1998) CABLAGGIO SIDE MARKER
from £30.55
from £30.55
# 010
MPN: 006138159
CABLE
(Valid for U.K 1998) CABLAGGIO CENTRALE
# 011
MPN: 006137795
CABLE
CABLAGGIO AIR BAG
from £96.19
from £96.19
# 012
MPN: 006138218
CABLE
CABLAGGIO ABS
from £347.40
from £347.40
# 013
MPN: 006137795
CABLE
(Valid for U.K 1998)CABLAGGIO AIR BAG
from £96.19
from £96.19
# 014
MPN: 006138219
CABLE
(Valid for U.K 1998) CABLAGGIO ABS
from £347.40
from £347.40
