61.03.00 - electrical system

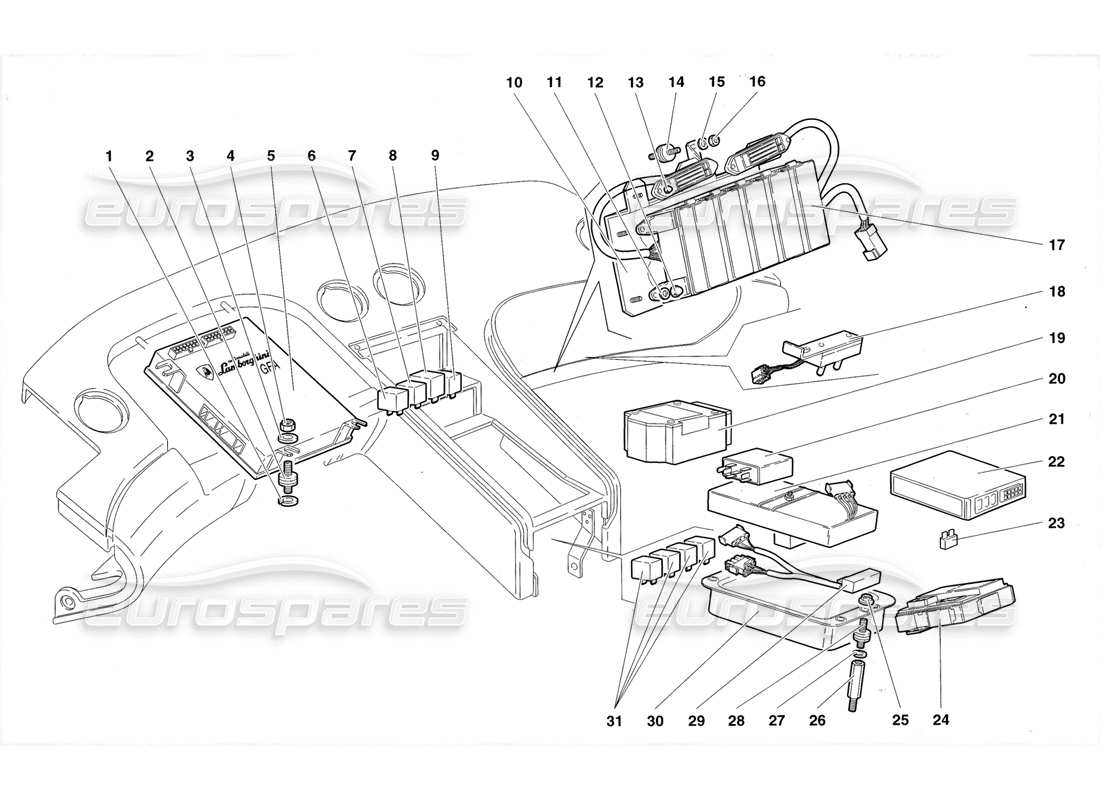

Lamborghini Diablo Roadster (1998) Electrical System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 008410611
WASHER
RONDELLA
from £0.53
from £0.53
# 002
MPN: 008920602
ELASTIC SUPPORT
SUPPORTO ELASTICO
from £8.91
from £8.91
# 003
MPN: WHT002961
WASHER
RONDELLA
from £0.53
from £0.53
This part replaces part number 008400607
# 004
MPN: 008200606
NUT
DADO
Supersession
Supersession
# 005
MPN: 0020001193
E.C.U.GFA
CENTRALINA GFA
from £2,111.33
from £2,111.33
# 005
MPN: 0020001194
E.C.U. GFA
(Valid for U.S.A.1998) CENTRALINA GFA
Supersession
Supersession
# 005
MPN: 0020001497
E.C.U. GFA
(Valid for ARABIA 1998) CENTRALINA GFA
from £6,583.13
from £6,583.13
# 005
MPN: 0020001497
E.C.U. GFA
(Valid for DUBAI .1998) CENTRALINA GFA
from £6,583.13
from £6,583.13
# 006
MPN: 006311155
RELAY
RELE ALIMENT. HAZARD
from £36.37
from £36.37
# 007
MPN: 006036297
RELAY
RELE ALIMENT. +15/30 HAZARD.
from £25.22
from £25.22
# 008
MPN: 006030676
RELAY
RELE INTERMITTENZA
from £99.08
from £99.08
# 009
MPN: 006036296
RELAY
RELE CLACSON
from £13.31
from £13.31
# 010
MPN: 006135155
SUPPORT
SUPPORTO
from £90.79
from £90.79
# 011
MPN: 008400620
WASHER
RONDELLA
from £0.95
from £0.95
# 012
MPN: 008200605
NUT
DADO
from £1.74
from £1.74
# 013
MPN: WHT002959
NUT
DADO
from £0.55
from £0.55
# 014
MPN: 008920603
ELASTIC SUPPORT
SUPPORTO ELASTICO
# 015
MPN: WHT002961
WASHER
RONDELLA
from £0.54
from £0.54
This part replaces part number 008400607
# 016
MPN: 008200606
NUT
DADO
Supersession
Supersession
# 017
MPN: 006137052
CASE
SCATOLA RELE/FUSIBILI
from £573.75
from £573.75
# 017
MPN: 006137443
CASE
(Valid for U.K 1998) SCATOLA RELE/FUSIBILI
from £720.50
from £720.50
# 017
MPN: 006138342
CASE
(Valid for U.S.A.1998) SCATOLA RELE/FUSIBILI
from £753.66
from £753.66
# 018
MPN: 006136981
KONI - SWITCH
INTERRUTTORE - KONI
from £148.83
from £148.83
# 019
MPN: 006037932
E.C.U. AIR BAG
CENTRALINA AIR BAG
from £467.77
from £467.77
# 020
MPN: 005929915
LOCKING E.C.U.
CENTR. CHIUSURA CENTR.
from £249.89
from £249.89
# 021
MPN: 006036175
LOW TIRE E.C.U.
CENTRALINA LOW TIRE
from £544.74
from £544.74
# 022
MPN: 0061001923
REMO. LOCKING E.C.U.
COMANDO CHIUSURA CENTR.
from £577.50
from £577.50
# 023
MPN: 001629258

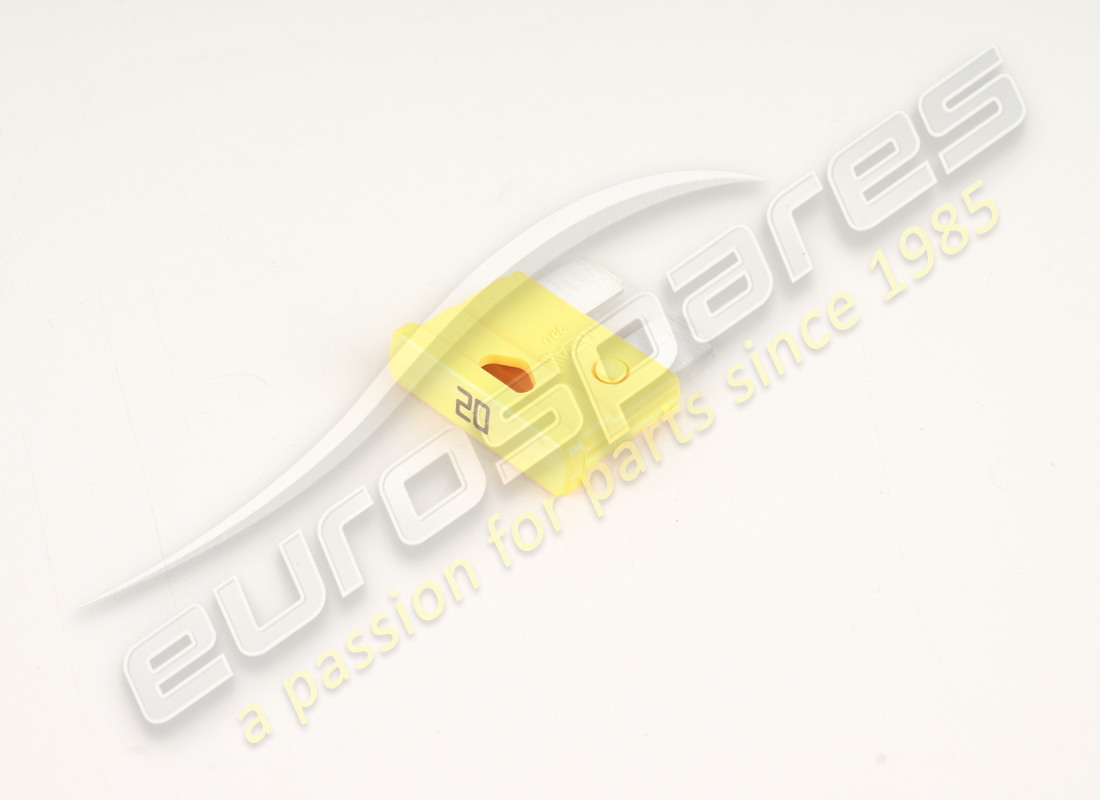

FUSE
FUSIBILE20A
from £0.54
from £0.54
# 024
MPN: 005936929
WINDOW LIFT E.C.U.
CENTRALINA ALZAVETRO
from £1,670.66
from £1,670.66
# 025
MPN: 008200614
NUT
DADO
Supersession
Supersession
# 026
MPN: 001128397
STUD
COLONNETTA
from £22.23
from £22.23
# 027
MPN: 008410611
WASHER
RONDELLA
from £0.53
from £0.53
# 028
MPN: 008920602
ELASTIC SUPPORT
SUPPORTO ELASTICO
from £8.91
from £8.91
# 029
MPN: 006137314
LOW TIRE E. DEVICE
INTERFACCIA - LOW TIRE
from £227.19
from £227.19
# 030
MPN: 005134572
KONI E.C.U.
CENTRALINA KONI
from £1,413.63
from £1,413.63
# 031
MPN: 006038007
RELAY
RELE
from £7.71
from £7.71
# 031
MPN: 006311155
RELAY
RELE
from £36.37
from £36.37
